1979 Yamaha RD400 (RD400F) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

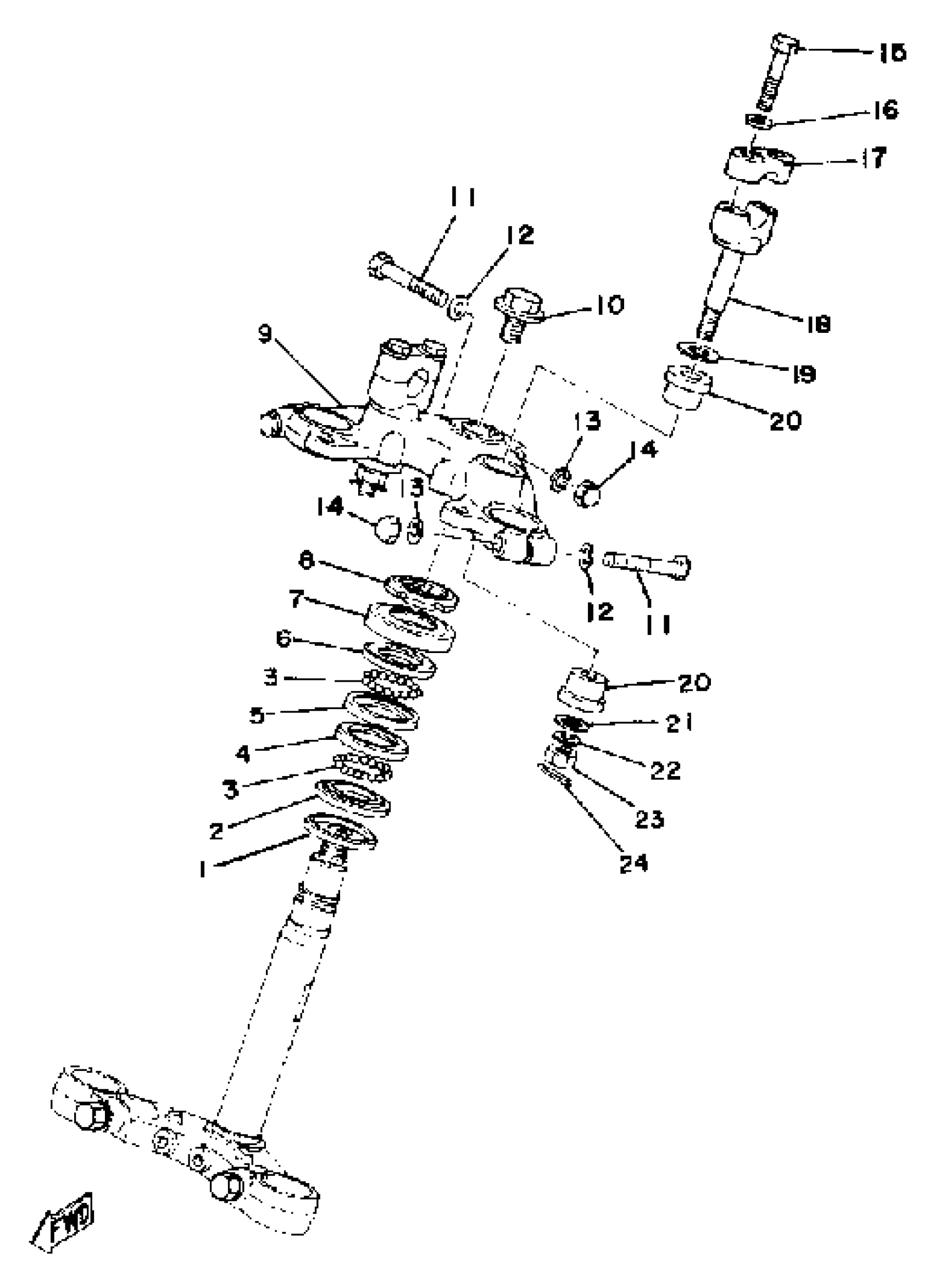

1979 Yamaha RD400 (RD400F) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

2

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

RACE,BALL 2

4FP-F3412-10-00

—

$3.98

In stock

6

RACE, BALL 1

4FP-F3411-20-00

1

$8.70

In stock

7

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

CROWN, HANDLE

(2V0-23435-00-98)

1
Out of stock

10

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

11

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

12

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

NUT, CROWN

95303-08800-00

1

$7.52

In stock

15

BOLT, DOME HEAD

90106-08032-00

1
Out of stock

16

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

17

HOLDER, HANDLE UPPER

1E6-23441-00-00

—

$22.38

In stock

18

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

19

WASHER, PLATE(47X)

90201-121J0-00

—

$5.46

In stock

20

BUSH (1A0)

90385-12027-00

—

$3.88

In stock

21

WASHER (737 STEERING)

90201-10146-00

—

$4.75

In stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

23

NUT (682)

95380-10700-00

1

$5.78

In stock

24

CLIP 136253750000

90468-12006-00

—

$5.10

In stock
