1979 Yamaha RD400 (RD400F) Electrical Diagram

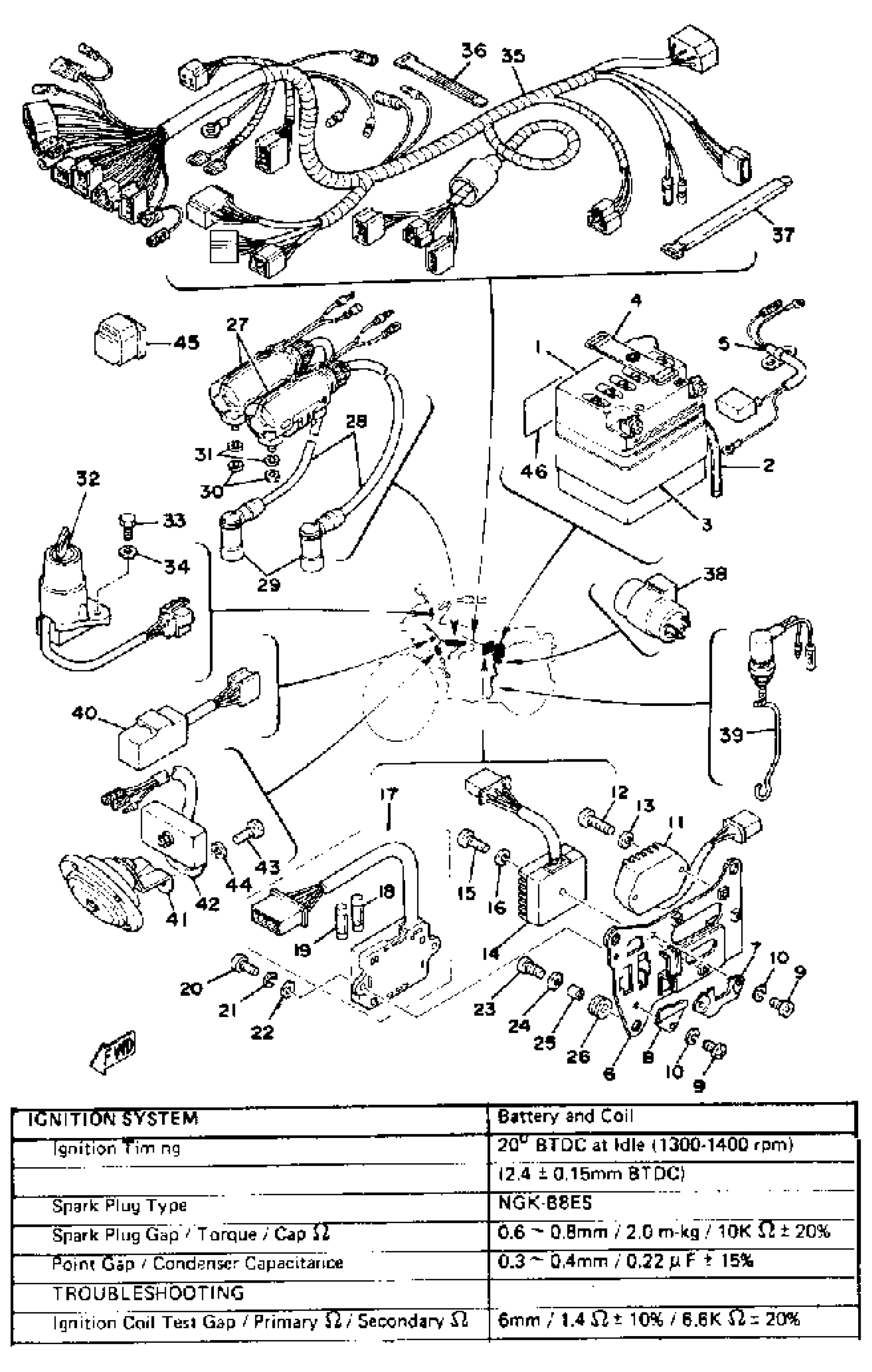

Find the part on the Electrical diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
12N5.5A3B YUASA BATTERY
12N-55A3B-Y0-00
2
HOSE
90445-08383-00
3
BAND, BATTERY
1UA-82124-00-00
5
WIRE, LEAD
1A0-82117-00-00
6
PLATE 1
(1A0-21543-01-00)
7
COLLAR 1
(1A0-21544-00-00)
8
PLATE 3
(1A0-21545-00-00)
11
VOLTAGE REG ASSEMBLY
1A0-81910-20-00
14
RECTIFIER ASSEMBLY
1L9-81970-60-00
17
FUSE BOX ASSEMBLY
1J7-82170-40-00
18
FUSE
1A0-82151-00-00
19
FUSE
1A0-82161-00-00
21
YBS67-5 WASHER, SPRING
92990-05100-00
22
WASHER, PLAIN (646)
92990-05600-00
24
WASHER, PLATE
90201-06M08-00
27
IGNITION COIL ASSEMBLY
1A0-82310-10-00
28
CORD, HIGHT TENSION 1
137-82341-01-00
32
MAIN SWITCH STEERING LOCK
3JV-82501-00-00
35
WIRE HARNESS ASSEMBLY
(2V0-82590-50-00)
37
BAND
341-26397-01-00
38
FLASHER RELAY ASSY
2NV-83350-00-00
39
STOP SWITCH ASSEMBLY
2R8-82530-02-00
40
FLASHER CANCELING UNIT
1A0-83395-03-00
41
HORN
1A0-83371-21-00
42
RESISTOR ASSEMBLY
1A0-85370-10-00
45
RELAY ASSEMBLY
2H7-81950-10-00
46
LABEL, BATTERY
40A-82141-G0-00
