1979 Yamaha RD400 (RD400F) Handle - Wire Diagram

← All diagrams

Find the part on the Handle - Wire diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

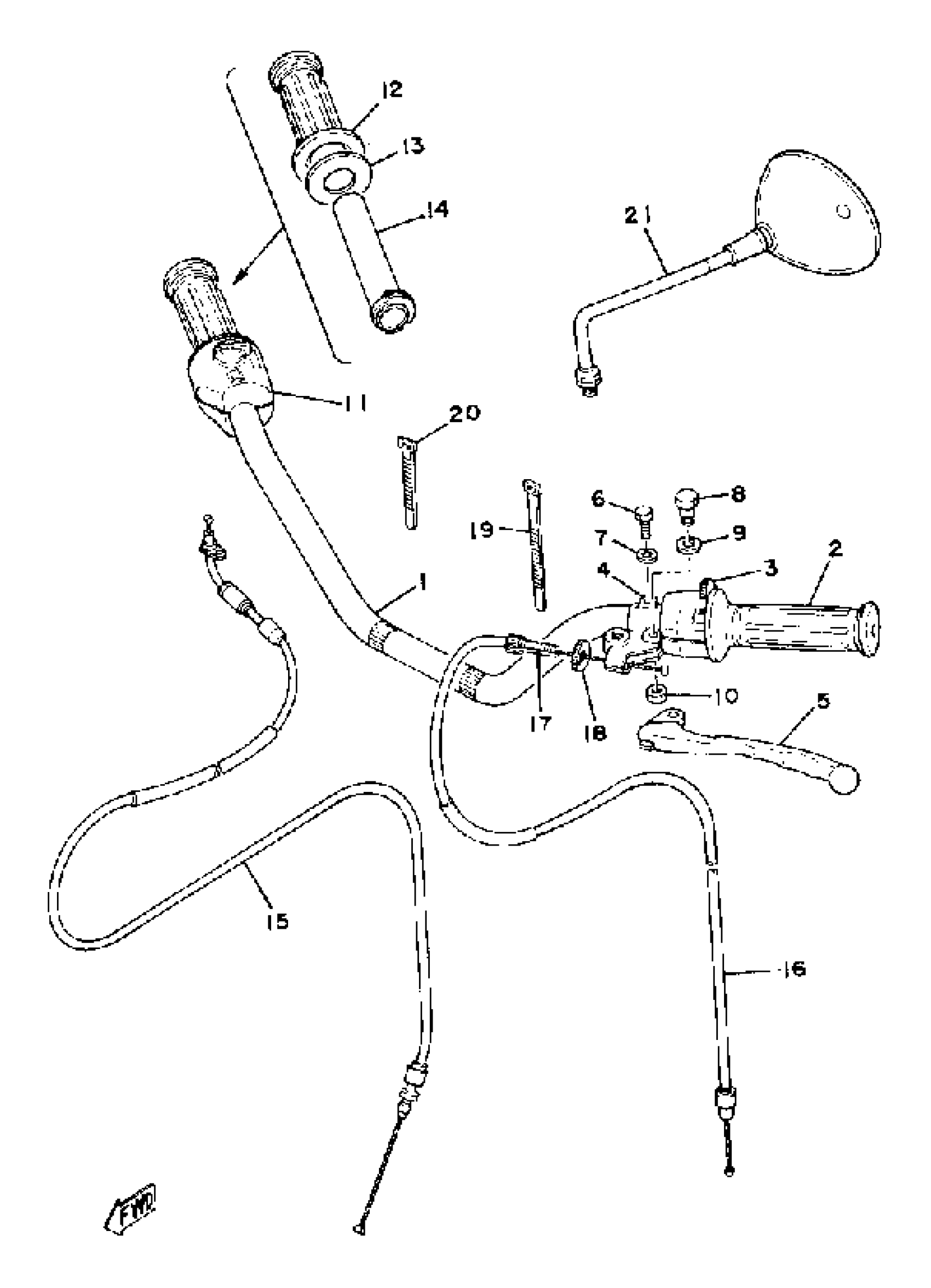

1979 Yamaha RD400 (RD400F) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

2L0-26111-00-00

1
Out of stock

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 3

1A0-83973-02-98

1
Out of stock

4

—

$24.57

In stock

5

LEVER 1

23X-83912-02-00

1

$21.46

In stock

6

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

9

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

10

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

11

SWITCH, HANDLE 1

(2V0-83976-00-00)

1
Out of stock

12

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

13

WASHER, PLATE(1UU)

90201-261L1-00

1
Out of stock

14

TUBE, THROTTLE GUIDE

1GU-26243-00-00

1
Out of stock

15

CABLE, THROTTLE 1

2V0-26311-00-00

1
Out of stock

16

CABLE, CLUTCH (1A0-26335-00)

1A0-26335-10-00

1
Out of stock

17

BOLT

90123-08002-00

—

$8.93

In stock

18

NUT

90179-08030-00

—

$3.78

In stock

19

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

20

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

21

MIRROR ASSEMBLY LH

1J7-26290-12-00

1
Out of stock
