1978 Yamaha RD400 (RD400E) Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

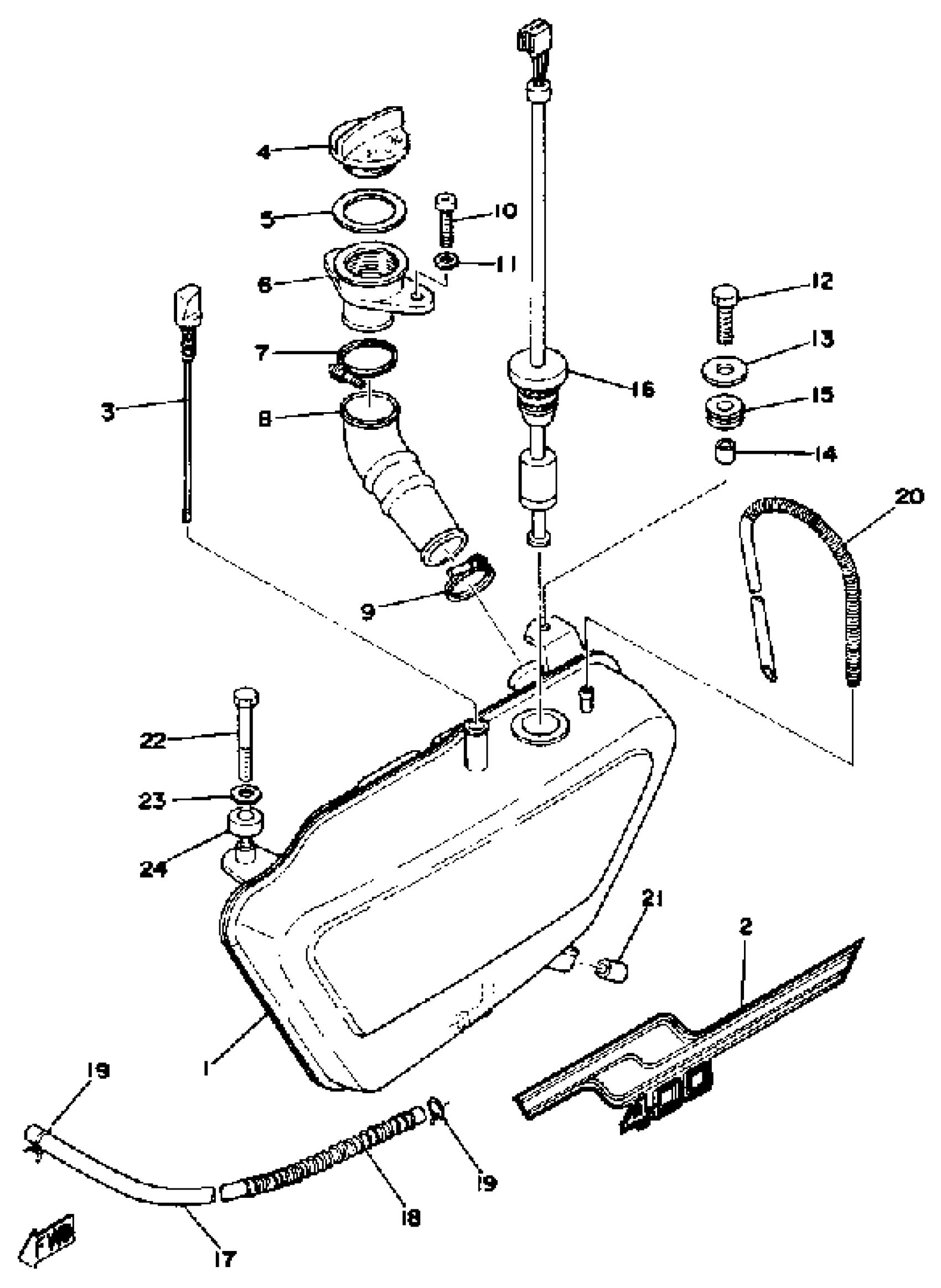

1978 Yamaha RD400 (RD400E) Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INACTIVE PART NUMBER

1A0-21751-00-20

1
Out of stock

2

INACTIVE PART NUMBER

1A1-21783-60-00

1
Out of stock

3

GAUGE, OIL

1A0-21792-00-00

1
Out of stock

4

BODY, OIL TANK CAP

1A0-21771-00-00

1
Out of stock

5

GASKET (583 OIL TANK CAP)

90430-27124-00

1
Out of stock

6

TUBE, FILLER 1

360-21752-00-00

1
Out of stock

7

CLAMP, HOSE(5U8)

90460-32255-00

1
Out of stock

8

BOSS, CONNECTOR

360-21753-00-00

1
Out of stock

9

INACTIVE PART NUMBER (360-21755-00)

90460-26007-00

1
Out of stock

10

SCREW PAN HEAD

98580-06020-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

12

BOLT, HEXAGON

97017-06025-00

1
Out of stock

13

WASHER, PLATE

90201-06380-00

1
Out of stock

14

COLLAR

90387-07020-00

1
Out of stock

15

GROMMET 839774310000

90480-14023-00

1
Out of stock

16

OIL LVL GUAGE ASY

4L0-85720-00-00

1
Out of stock

17

HOSE (L700)

90445-09122-00

—
Out of stock

18

SPRING, COMPRESSION

90501-085L6-00

—
Out of stock

19

CLIP 101235600

90467-08003-00

—
Out of stock

20

INACTIVE PART NUMBER

1A0-21745-01-00

1
Out of stock

21

DAMPER, OIL TANK

437-21779-00-00

—
Out of stock

22

BOLT, HEXAGON

97013-06050-00

—
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

24

BUSH

90385-10026-00

—
Out of stock
