1978 Yamaha RD400 (RD400E) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

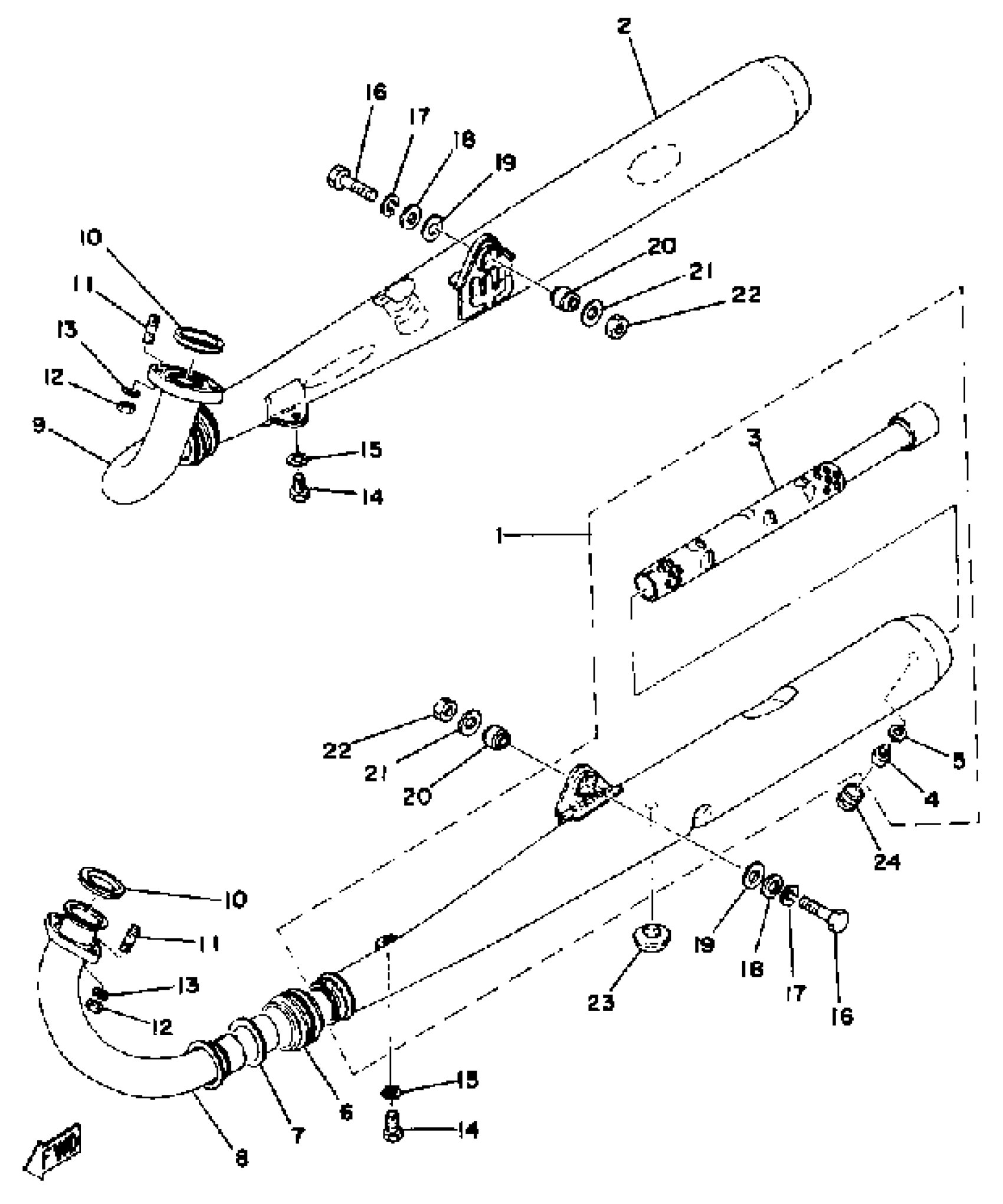

1978 Yamaha RD400 (RD400E) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INACTIVE PART NUMBER

1A1-14710-00-00

1
Out of stock

2

INACTIVE PART NUMBER

1A1-14720-00-00

1
Out of stock

3

SILENCER

521-14753-00-00

—

$73.08

In stock

4

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

JOINT, EXHAUST L

1A1-14615-02-00

1
Out of stock

7

GASKET, MUFFLER

1A1-14714-02-00

1
Out of stock

8

INACTIVE PART NUMBER

1A1-14611-00-00

1
Out of stock

9

INACTIVE PART NUMBER

1A1-14621-00-00

1
Out of stock

10

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

11

BOLT, STUD (17W)

90116-08408-00

—

$15.12

In stock

12

NUT(6L2)

95333-08600-00

1

$3.20

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

BOLT,FLANGE

95023-10035-00

1
Out of stock

17

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

18

—

$3.00

In stock

19

WASHER, PLATE(3BM)

90201-105R9-00

—
Out of stock

20

DAMPER, REAR

168-21639-00-00

—
Out of stock

21

WASHER, PLATE

90201-15239-00

1
Out of stock

22

NUT, SPEC''L SHAPE

90179-10123-00

1
Out of stock

23

STOPPER, MAIN STAND

1A0-27114-00-00

—
Out of stock

24

GROMMET (420)

90480-14153-00

—

$8.55

In stock
