1978 Yamaha RD400 (RD400E) Crankshaft Piston Diagram

← All diagrams

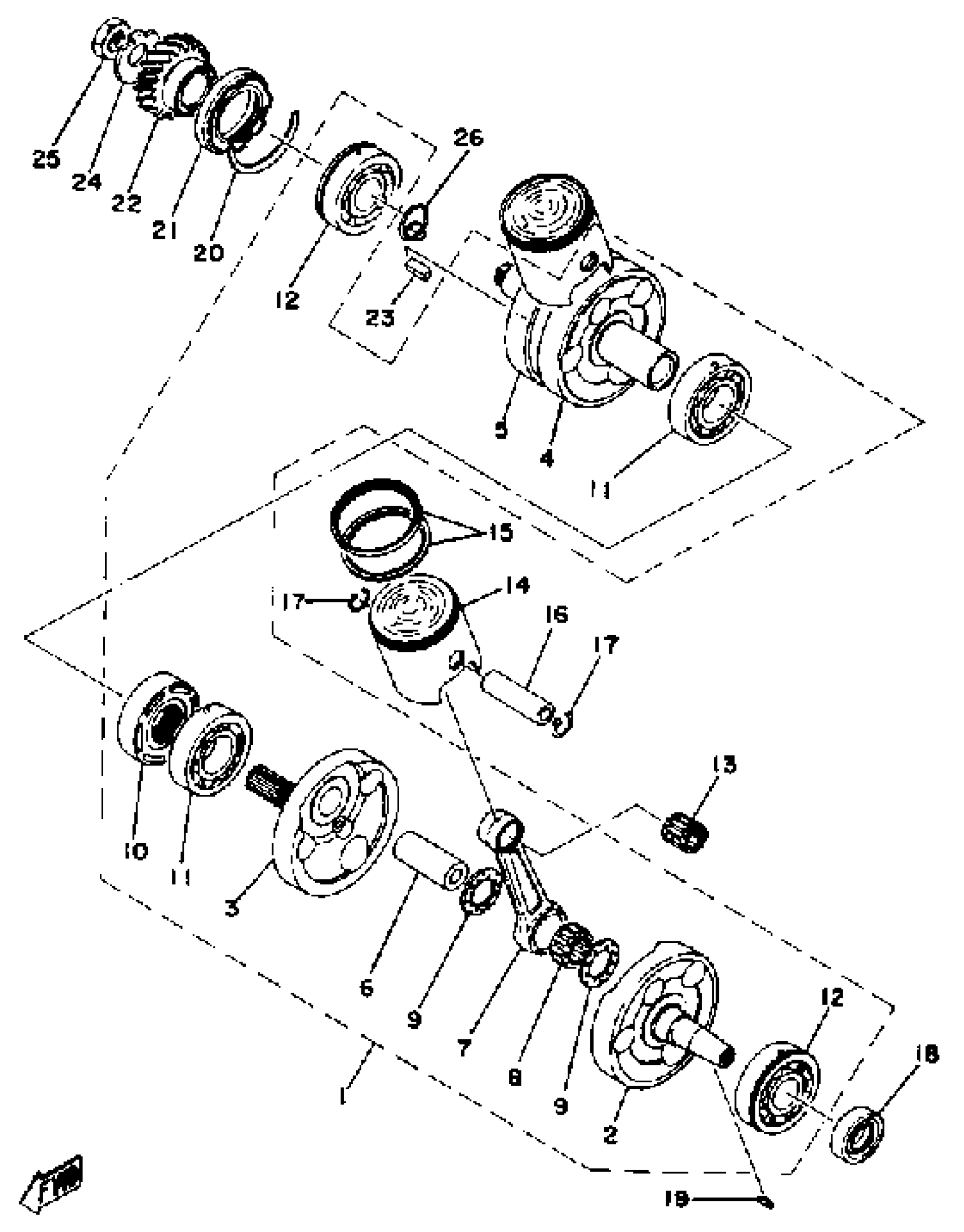

Find the part on the Crankshaft Piston diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha RD400 (RD400E) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

2V0-11400-00-00

1
Out of stock

2

. INACTIVE PART NUMBER

1A1-11412-01-00

1
Out of stock

3

. INACTIVE PART NUMBER

2V0-11422-00-00

1
Out of stock

4

. INACTIVE PART NUMBER

1A1-11432-01-00

1
Out of stock

5

. INACTIVE PART NUMBER

1A1-11442-01-00

1
Out of stock

6

PIN, CRANK

8G8-11681-00-00

1

$24.98

In stock

7

. ROD, CONNECTING

2T2-11651-00-00

1
Out of stock

8

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

9

WASHER (29L)

90209-22248-00

—
Out of stock

10

. SEAL, LABYRINTH 1

278-11515-00-00

1
Out of stock

11

1

$68.89

In stock

12

BEARING(1UA)

93306-30549-00

1
Out of stock

13

1

$23.03

In stock

14

PISTON STD

1A1-11631-00-96

1
Out of stock

14

PISTON 1 O/S 0.25

1A1-11635-00-00

1
Out of stock

14

PISTON 2 O/S 0.50

1A1-11636-00-00

1
Out of stock

14

PISTON 3 O/S 0.75

1A1-11637-00-00

1
Out of stock

14

PISTON 4 O/S 1.00

1A1-11638-00-00

1
Out of stock

15

PISTON RINGSET STD

1A1-11610-00-00

1
Out of stock

15

PISTON RINGSET 1ST

1A1-11610-10-00

1
Out of stock

15

PISTON RINGSET 2ND

1A1-11610-20-00

1
Out of stock

15

PISTON RINGSET 3RD

1A1-11610-30-00

1
Out of stock

15

PISTON RINGSET 4TH

1A1-11610-40-00

1
Out of stock

16

PIN, PISTON

4L0-11633-00-00

—
Out of stock

17

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

18

OIL SEAL (20X40X10-360)

93103-20076-00

—

$25.78

In stock

19

KEY,WOODRUFF

90280-04005-00

1
Out of stock

20

CIRCLIP

278-17424-01-00

—
Out of stock

21

OIL SEAL (40X62X10-360)

93103-40077-00

—
Out of stock

22

INACTIVE PART NUMBER (23T)

1A1-16111-00-00

1
Out of stock

23

KEY, STRAIGHT (584)

90282-07023-00

—
Out of stock

24

WASHER, LOCK (RD400C)

90215-18131-00

—

$8.75

In stock

25

NUT

90170-16425-00

—
Out of stock

26

SEAL, CRANKSHAFT 000

360-11526-00-00

1
Out of stock
