1978 Yamaha RD400 (RD400E) Crankcase Diagram

← All diagrams

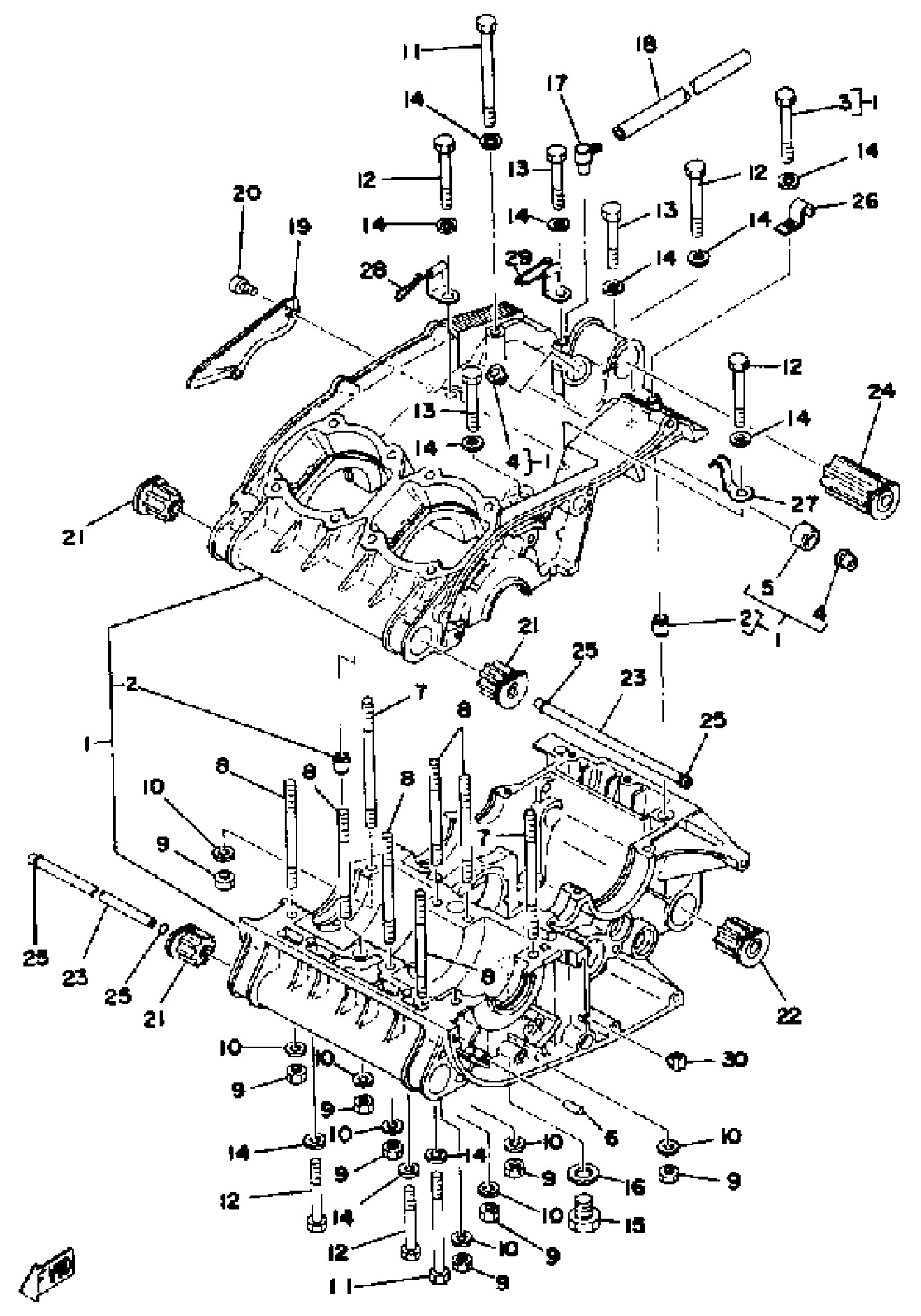

Find the part on the Crankcase diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha RD400 (RD400E) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INACTIVE PART NUMBER

1A1-15100-01-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

4

BUSH (214-17843-00)

90381-08002-00

1

$10.54

In stock

5

. INACTIVE PART NUMBER (278-17833-00)

90380-14040-00

1
Out of stock

6

PIN, DOWEL

93603-14026-00

1
Out of stock

7

BOLT, STUD (1A1)

90116-08232-00

1
Out of stock

8

GASKET KIT

1A3-W0001-00-00

1
Out of stock

8

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

9

NUT(6L2)

95333-08600-00

1

$3.20

In stock

10

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

11

BOLT(3GG)

97017-06090-00

1
Out of stock

12

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

13

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

BOLT

90109-14385-00

—

$13.66

In stock

16

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

17

BREATHER

583-15371-00-00

—
Out of stock
Crankcase Cover →
