1983 Kawasaki Prairie Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

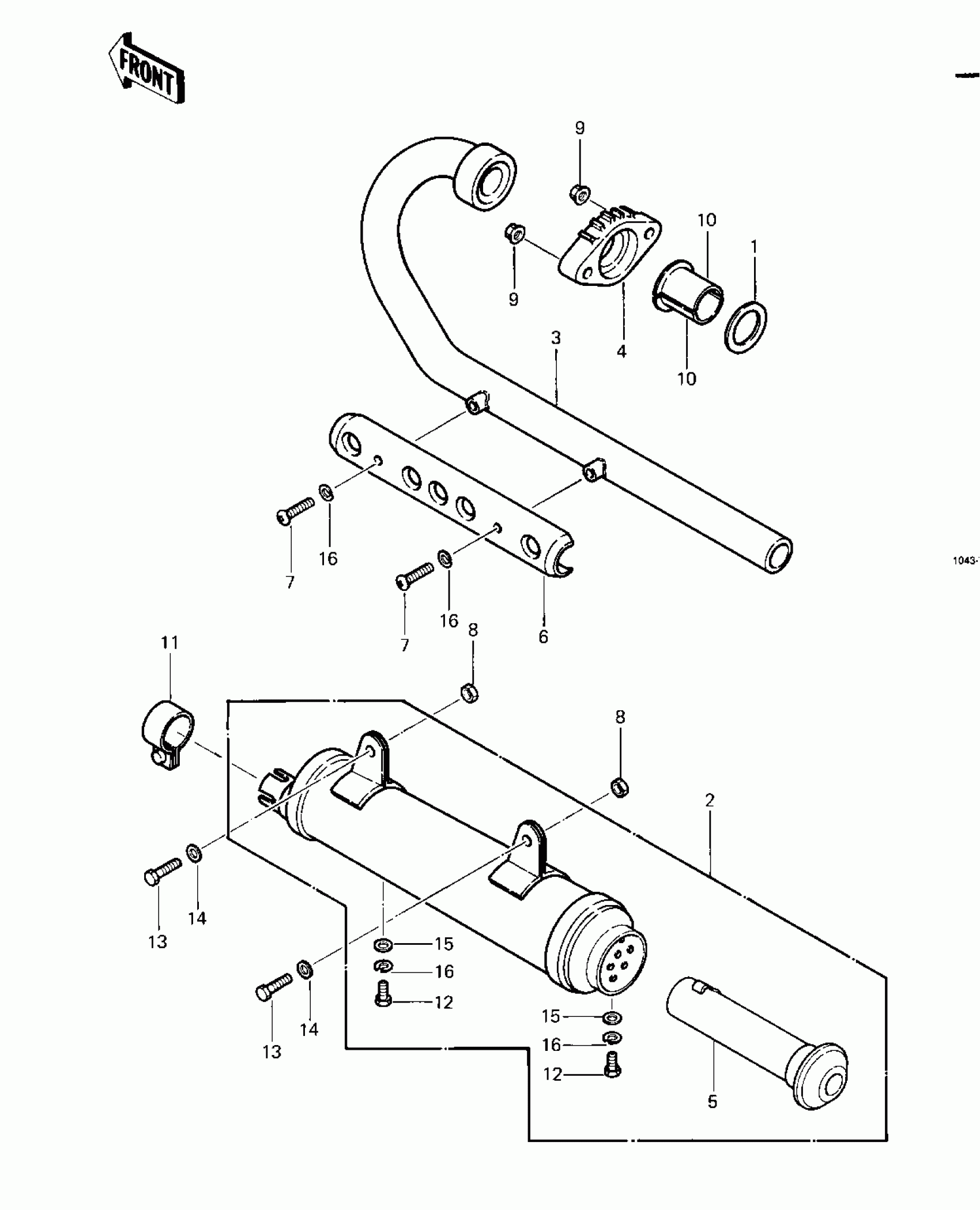

1983 Kawasaki Prairie Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$6.55

In stock

2

MUFFLER

18001-1452

1

$416.61

In stock

2

MUFFLER

18001-1452

1

$416.61

In stock

3

PIPE-EXHAUST

18049-1153

1

$82.57

In stock

4

HOLDER-EXHAUST PIPE

18069-1014

1

$14.79

In stock

5

BAFFLE-PIPE MUFFLER

49099-1223

1
Out of stock

6

1

$14.75

In stock

7

SCREW,6X6.7

92009-1054

1
Out of stock

8

NUT,LOCK,8MM

92015-1124

1
Out of stock

9

NUT,8MM

92015-1143

1
Out of stock

10

1

$3.75

In stock

11

CLAMP,MUFFLER CONNECT

92037-1115

1
Out of stock

12

BOLT-UPSET,6X12

112G0612

1
Out of stock

13

BOLT,8X20

115G0820

1
Out of stock

14

WASHER PLAIN 8MM

410B0800

1
Out of stock

15

WASHER PLAIN 6MM

411B0600

1
Out of stock

16

WASHER SPRING 6MM

461F0600

1
Out of stock
