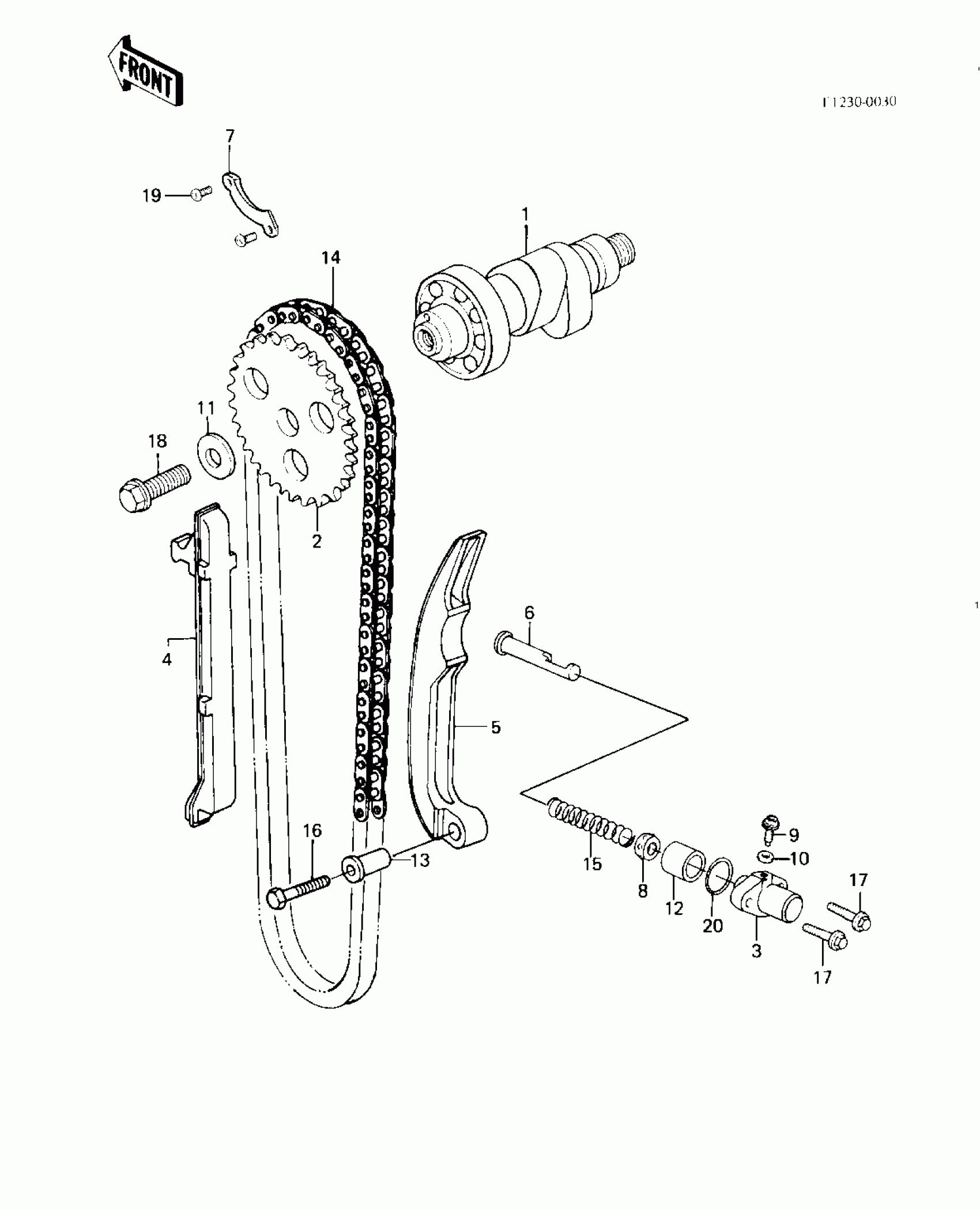

Kawasaki Prairie CAMSHAFT/CHAIN/TENSIONER ('83 C1) Diagram

#

Description
Price

1

CAMSHAFT-VALVE

12044-1053

$283.35

2

SPROCKET,CAM CHAIN,32

12046-1037

$60.10

3

TENSIONER,CAM CHAIN

12049-1055

$47.04

4

SLIPER,CAM CHAIN

12053-023

$36.81

5

SLIPER,CAM CHAIN

12053-024

$50.08

6

ROD,PUSH,CAM CHAIN

13116-1019

$15.24

7

PLATE-POSITION

14014-1030

$3.51

8

RETAINER,TENSIONER

14020-1002

$16.44

9

BOLT,TENSIONER ADJUST

92001-1155

$4.68

10

WASHER OIL PUMP BANJO

92022-077

$2.84

11

WASHER,10X22X3

92022-1365

$4.85

12

COLLAR,TENSIONER

92027-1273

$33.19

13

COLLAR

92027-155

$6.25

14

CHAIN,CAM

21070-013

$153.78

15

SPRING,TENSIONER

92081-1105

$4.07

16

BOLT-UPSET

112G0630

Unavailable

17

BOLT,FLANGED,6X25

130G0625

Unavailable

18

BOLT-FLANGED,10X25

130G1025

Unavailable

19

SCREW PAN HEAD 6X10

220B0610

Unavailable

20

O RING,21MM

670B2021

$3.60
