1983 Kawasaki Prairie Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

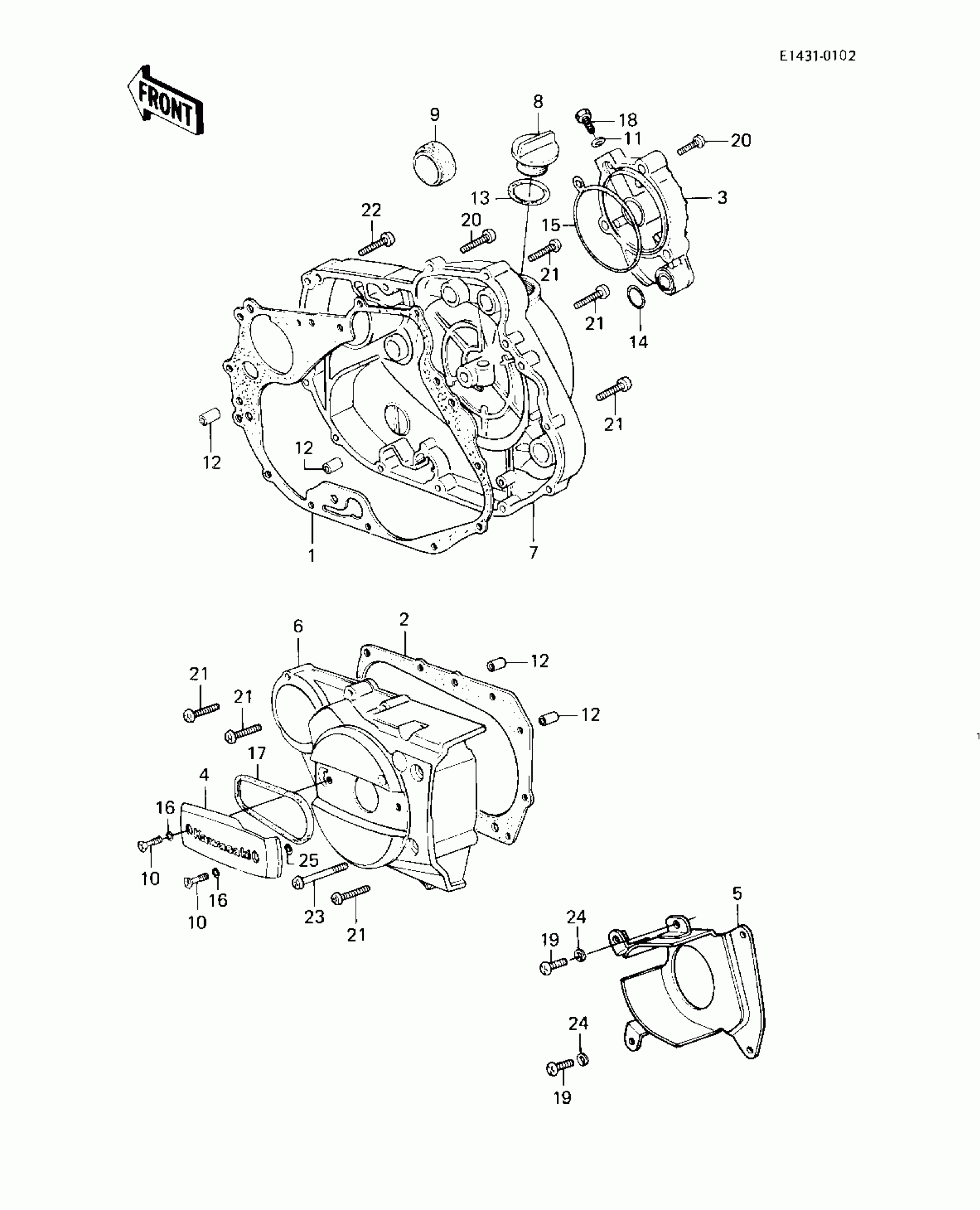

1983 Kawasaki Prairie Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,CLUTCH COVER

11009-1306

1
Out of stock

2

GASKET,L.H ENGINE COV

14045-031

1
Out of stock

3

COVER,OIL FILTER

14025-1559

1
Out of stock

4

COVER,GENERATOR

14025-1606

1
Out of stock

5

COVER-CHAIN,BLACK

14026-1052

1
Out of stock

6

COVER-GENERATOR

14031-1110

1
Out of stock

7

COVER-CLUTCH

14032-1098

1
Out of stock

8

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

9

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

10

SCREW-CSK-RD-CROS,M6X20

92009-1715

1
Out of stock

11

WASHER,6.2X11X1

92022-304

1
Out of stock

12

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

13

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

14

RING-O

92055-098

1

$9.27

In stock

15

1

$13.75

In stock

16

RING-O,5.28X1.78

92055-109

1

$3.49

In stock

17

RING-O

92055-1143

1

$5.58

In stock

18

BOLT HEX HEAD 6X8

110B0608

1
Out of stock

19

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

20

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

21

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

22

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

23

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

24

WASHER SPRING 6MM

461F0600

1
Out of stock

25

O RING,12MM

670B2012

1

$2.58

In stock
