1983 Kawasaki Prairie Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

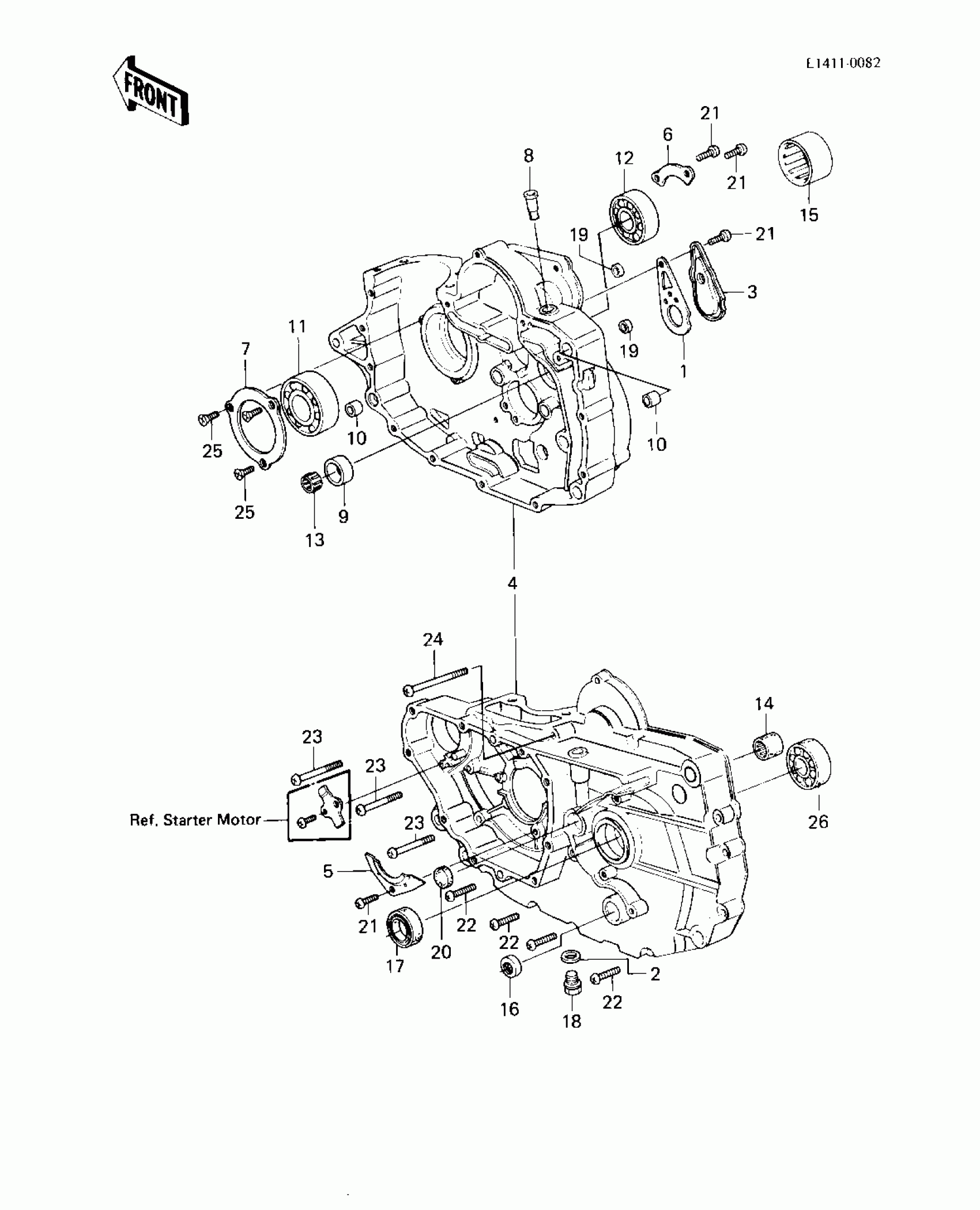

1983 Kawasaki Prairie Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

16079-002

1
Out of stock

2

GASKET,12X22X2

92065-097

1

$0.76

In stock

3

CAP

16078-002

1

$7.47

In stock

4

SET-CRANKCASE

14001-5137

1
Out of stock

5

PLATE,POSITIONING

14014-035

1
Out of stock

6

PLATE-POSITION

14014-037

1
Out of stock

7

PLATE-POSITION,CRANK BEARING

14014-1004

1
Out of stock

8

FITTING,BREATHER

14067-006

1

$19.78

In stock

9

BUSHING,23X30X13

92028-132

1

$38.79

In stock

10

PIN,DOWEL,14X14

92042-032

1
Out of stock

11

BEARING-BALL,#6306

92045-037

1

$43.48

In stock

12

BEARING,BALL#6006

92045-038

1
Out of stock

13

BEARING-NEEDLE

92046-1184

1
Out of stock

14

BRG,NEEDLE,HMK1515B

92046-060

1
Out of stock

1

BEARING-NEEDLE,NK20/1

92046-1183

1
Out of stock

16

SEAL-OIL

92050-082

1
Out of stock

17

SEAL-OIL,TC32457

92049-1159

1
Out of stock

18

1

$4.88

In stock

19

PLUG

92066-1282

1

$5.66

In stock

20

PLUG

92066-1116

1

$9.59

In stock

21

1

$1.32

In stock

22

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

23

1

$3.28

In stock

24

SCREW-PAN-CROS,6X75

220B0675

1
Out of stock

25

1

$0.63

In stock

26

1

$15.38

In stock
