1983 Kawasaki Prairie Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

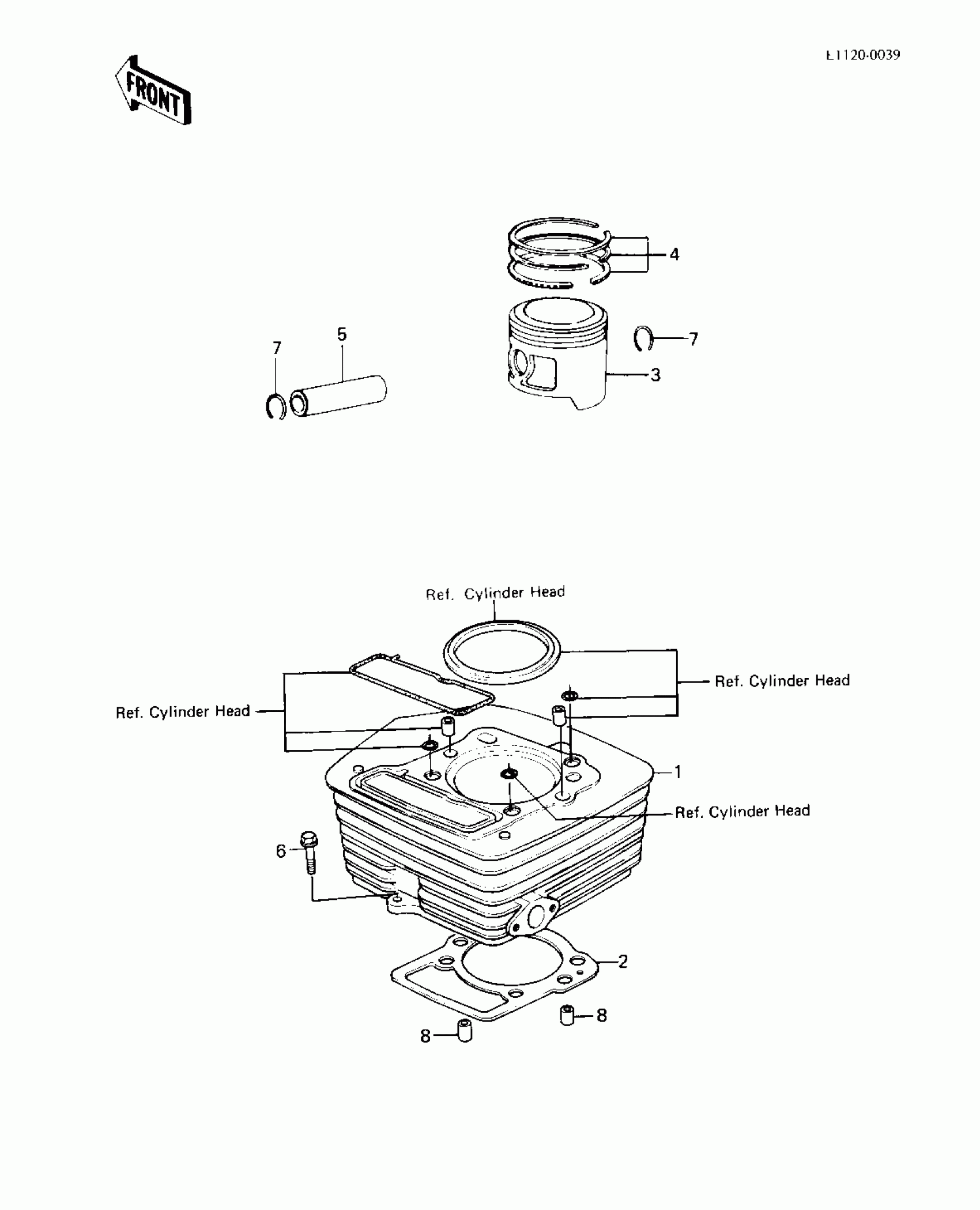

1983 Kawasaki Prairie Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER-ENGINE

11005-1331

1
Out of stock

2

GASKET,CYLINDER BASE

11009-043

1
Out of stock

3

PISTON-ENGINE,STD

13001-1101

1
Out of stock

3

PISTON-ENGINE L,O/S 0

13029-1048

—
Out of stock

3

PISTON-ENGINE LL,O/S

13027-1047

—
Out of stock

4

RING-SET-PISTON

13008-1011

1
Out of stock

4

RING-SET PISTON L,O/S

13025-1014

—
Out of stock

4

RING-SET PISTON LL,0/

13024-1014

—
Out of stock

5

PIN-PISTON

13002-1013

1

$5.25

In stock

6

BOLT,FLANGED,6X28

92003-202

1
Out of stock

7

CIRCLIP,PISTON PIN

92036-021

1

$0.53

In stock

8

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock
