1983 Kawasaki Prairie Crankshaft/balancer Diagram

← All diagrams

Find the part on the Crankshaft/balancer diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

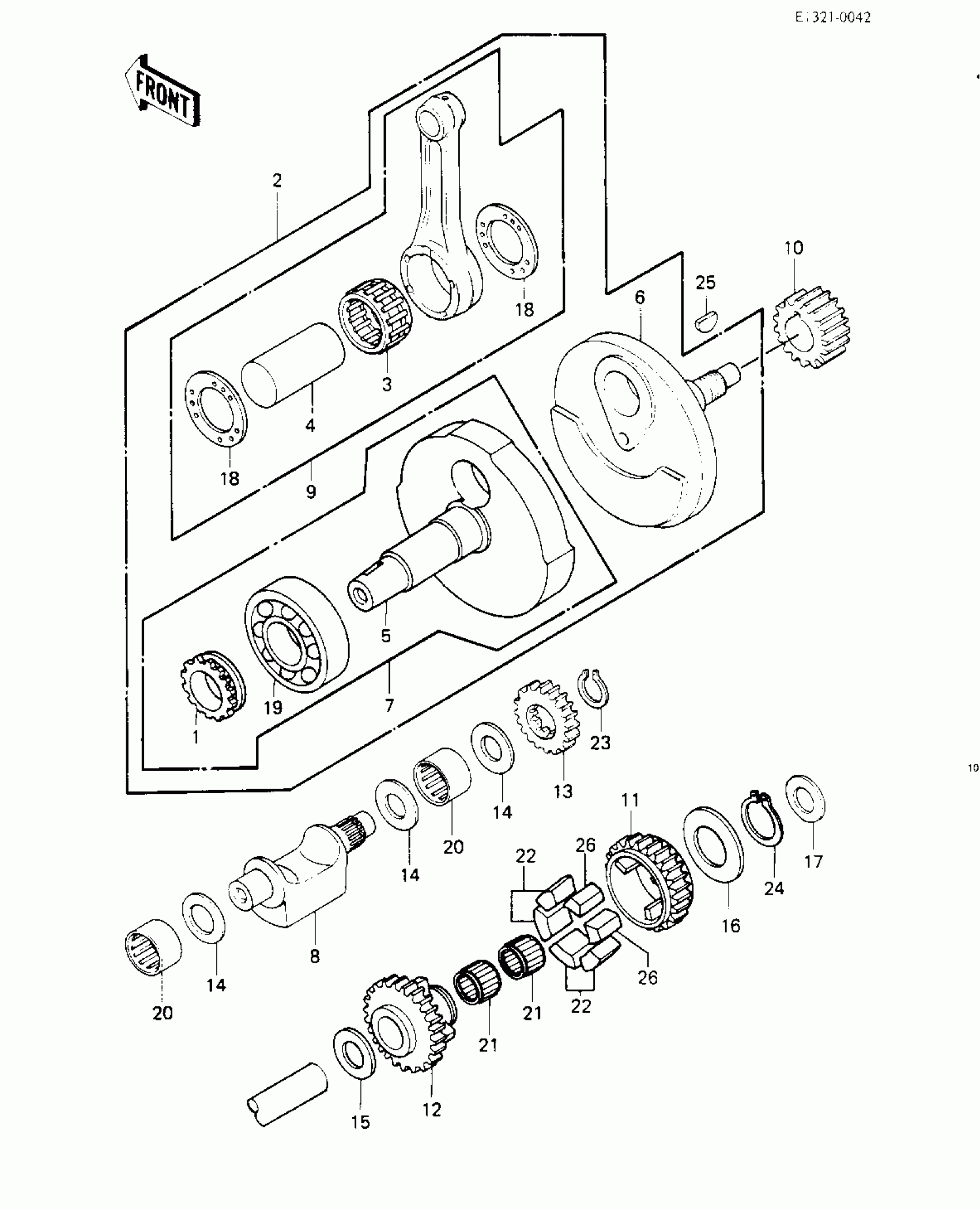

1983 Kawasaki Prairie Crankshaft/balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPROCKET,16T

12046-1038

1

$53.71

In stock

2

CRANKSHAFT-COMP

13031-1080

1
Out of stock

3

BEARING-BIG END

13034-1013

1
Out of stock

4

PIN-CRANK

13035-1009

1
Out of stock

5

CRANKSHAFT,LH

13037-1150

1
Out of stock

6

CRANKSHAFT,RH

13037-1151

1
Out of stock

7

CRANKSHAFT,LH

13037-5005

1
Out of stock

8

BALANCER

13041-1003

1
Out of stock

9

SET-CONNECTING ROD

13044-5026

1
Out of stock

10

GEAR-PRIMARY SPUR,21T

13097-1067

1
Out of stock

11

GEAR-TRANSMISSION SPU

13129-1364

1
Out of stock

12

GEAR-TRANSMISSION SPU

13129-1365

1
Out of stock

13

GEAR-TRANSMISSION SPU

13129-1366

1
Out of stock

14

WASHER,20X36X1

92022-1366

1
Out of stock

15

WASHER,16X34X1

92022-1367

1
Out of stock

16

WASHER,25.3X44X1

92022-1390

1

$4.32

In stock

17

WASHER,16.3X25X1

92022-1391

1
Out of stock

18

SPACER

92026-1070

1

$10.92

In stock

19

BEARING-BALL,#6306

92045-037

1

$43.48

In stock

20

BEARING-NEEDLE,NK20/1

92046-1183

1
Out of stock

21

BEARING-NEEDLE,K16X20

92046-1053

1
Out of stock

22

DAMPER,IDLER GEAR

92075-1595

1
Out of stock

23

1

$2.12

In stock

24

1

$1.71

In stock

25

WOODRUFF KEY

510A5100

1

$2.17

In stock

26

DAMPER,IDLER GEAR

92075-1596

1
Out of stock
