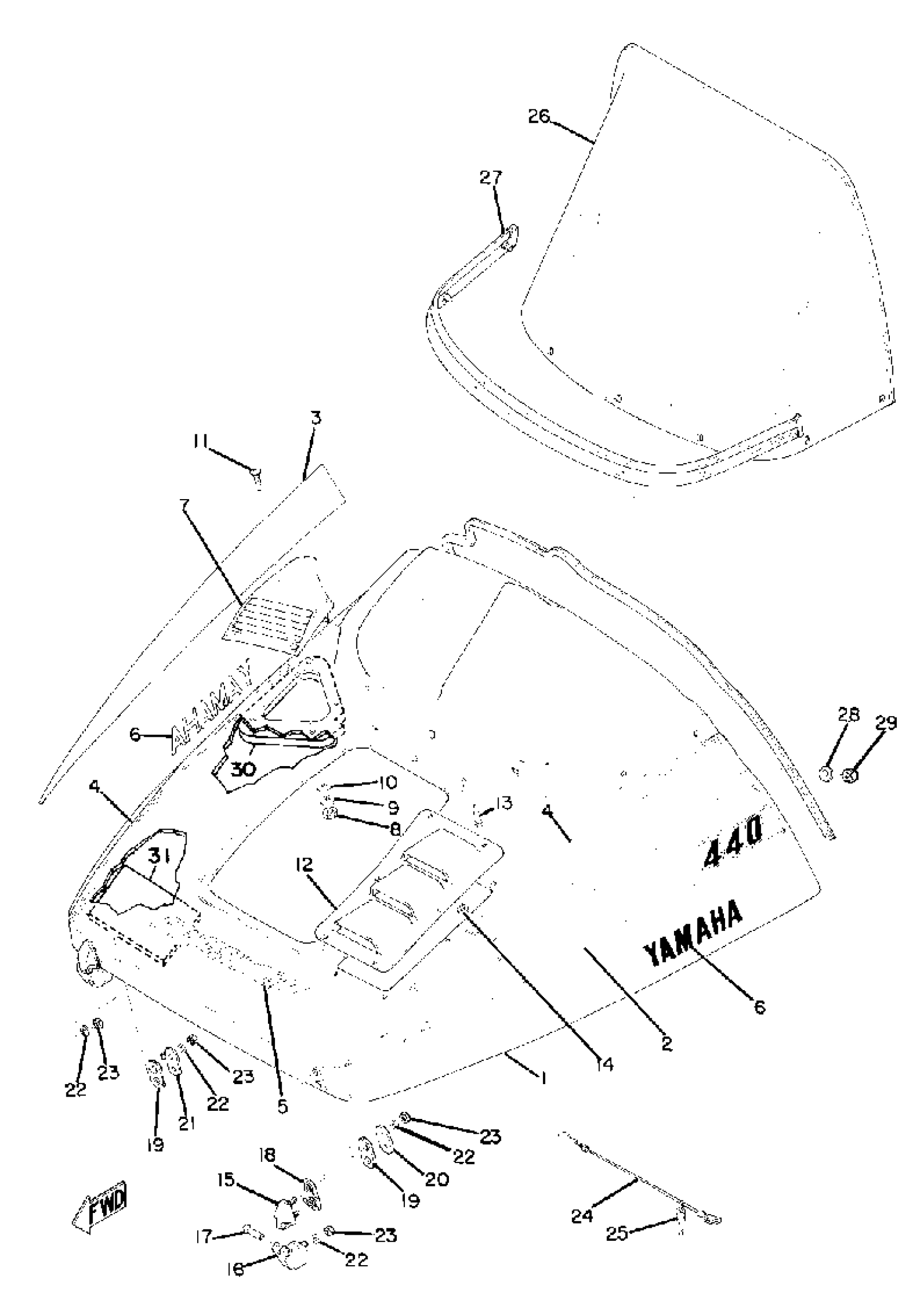

Find the part on the Shroud diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha PR440 Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY (8A1-77110-00-E5)

8A1-W7711-00-E5

1
Out of stock

2

ORNAMENT 1

(8A2-77163-00-00)

1
Out of stock

3

ORNAMENT 2

(8A2-77164-00-00)

1
Out of stock

4

ORNAMENT 3

(8A2-77169-00-00)

1
Out of stock

5

EMBLEM 6

(8A2-77356-01-00)

1
Out of stock

6

EMBLEM 7

(8A2-77357-00-00)

1
Out of stock

7

LOUVER 4

(8A2-77134-02-00)

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

11

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

12

LOUVER 4

(874-77134-00-00)

1
Out of stock

13

RIVET, BLIND

(90267-32020-00)

1
Out of stock

14

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

15

HINGEASSEMBLY

(841-77140-00-00)

1
Out of stock

16

HINGE 3

(841-77147-00-00)

1
Out of stock

17

PIN

90243-05003-00

1
Out of stock

18

DAMPER 2

841-77199-00-00

1
Out of stock

19

DAMPER 1

(841-77198-00-00)

1
Out of stock

20

PLATE, BACK UP 1

(841-77153-00-00)

1
Out of stock

21

PLATE, BACK UP 2

(841-77154-00-00)

1
Out of stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

STOPPER, SHROUD

8E4-77118-00-00

1
Out of stock

25

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

26

WINDSHIELD

8A1-77210-00-00

1
Out of stock

27

TRIM LOWER ASSEMBLY

(8A1-77220-00-00)

1
Out of stock

28

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

29

NUT, U

95617-05100-00

—

$6.68

In stock

30

NO LONGER AVAILABLE (SILVER 6)

8E4-77264-01-00

1
Out of stock

31

LINING, SHROUD 6 (SILVER 6)

(8E4-77266-01-00)

1
Out of stock
