1976 Yamaha PR440 Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

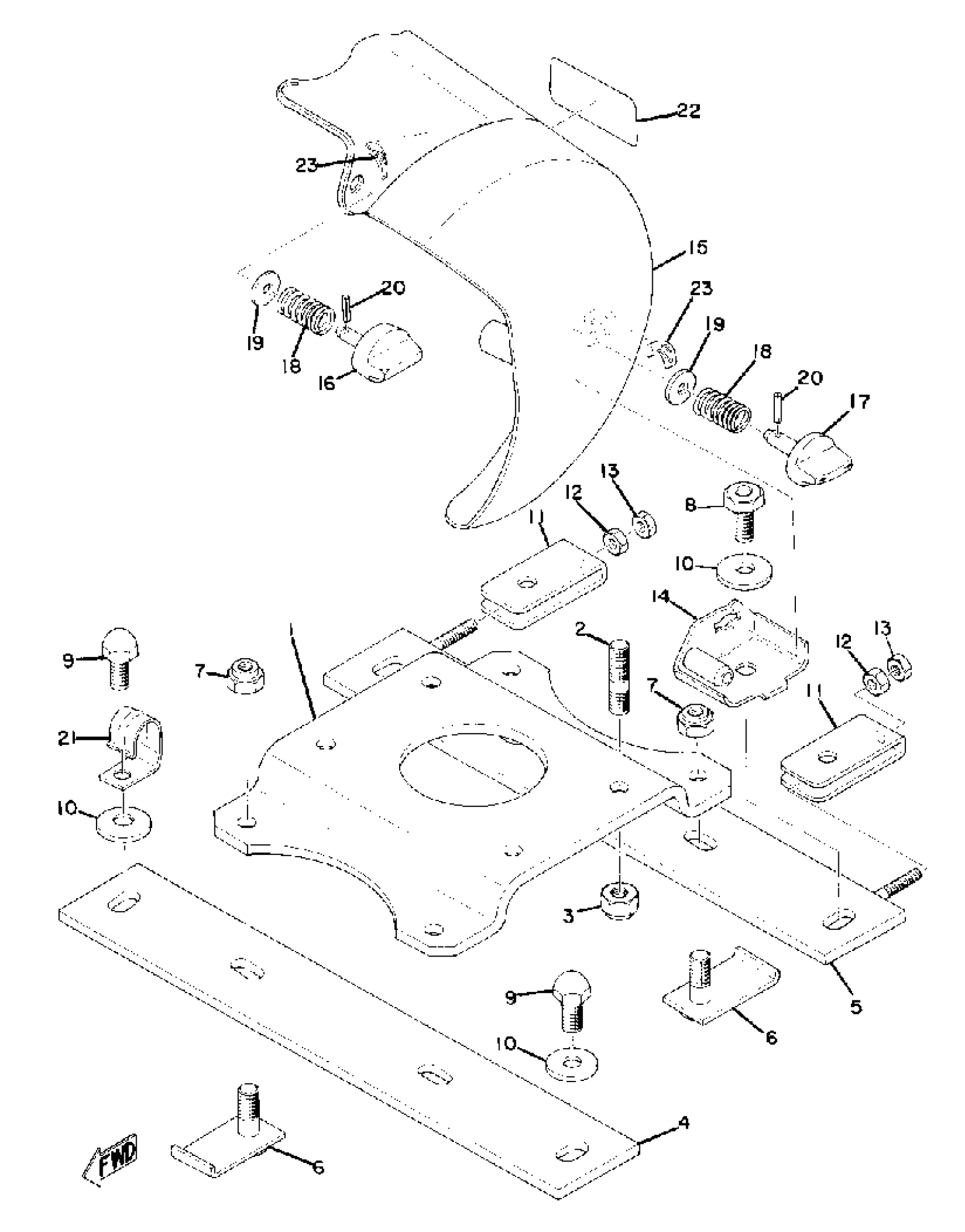

1976 Yamaha PR440 Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(838-21411-01-00)

1
Out of stock

2

BOLT, STUD

(90116-10084-00)

1
Out of stock

3

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

4

BRACKET, ENGINE 2

(841-21419-00-00)

1
Out of stock

5

BRACKET, ENGINE 2

(874-21419-00-00)

1
Out of stock

6

BOLT, ENG MNTNG 2

(829-21482-00-00)

1
Out of stock

7

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

8

BOLT

(90101-10057-00)

1
Out of stock

9

BOLT, DOME HEAD

(90106-10015-00)

1
Out of stock

10

WASHER, CONICAL SPR

90208-10013-00

1
Out of stock

11

PLATE, ENGINE ADJUSTING

(834-21475-00-00)

1
Out of stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

NUT(650)

95380-06700-00

1

$6.17

In stock

14

BRACKET 1

844-77315-00-00

1
Out of stock

15

GUARD, DRIVE

865-77311-00-00

1
Out of stock

16

KNOB

(829-77324-00-00)

1
Out of stock

17

KNOB

844-77324-00-00

1
Out of stock

18

SPRING 1

806-77325-00-00

1
Out of stock

19

WASHER, PLATE

90201-08104-00

1
Out of stock

20

PIN SPRING(664)

91690-40018-00

1

$3.23

In stock

21

CLAMP

(90465-06012-00)

1
Out of stock

22

EMBLEM 10

(829-77365-00-00)

1
Out of stock

23

EMBLEM 12

(829-77367-00-00)

1
Out of stock
