1976 Yamaha PR440 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

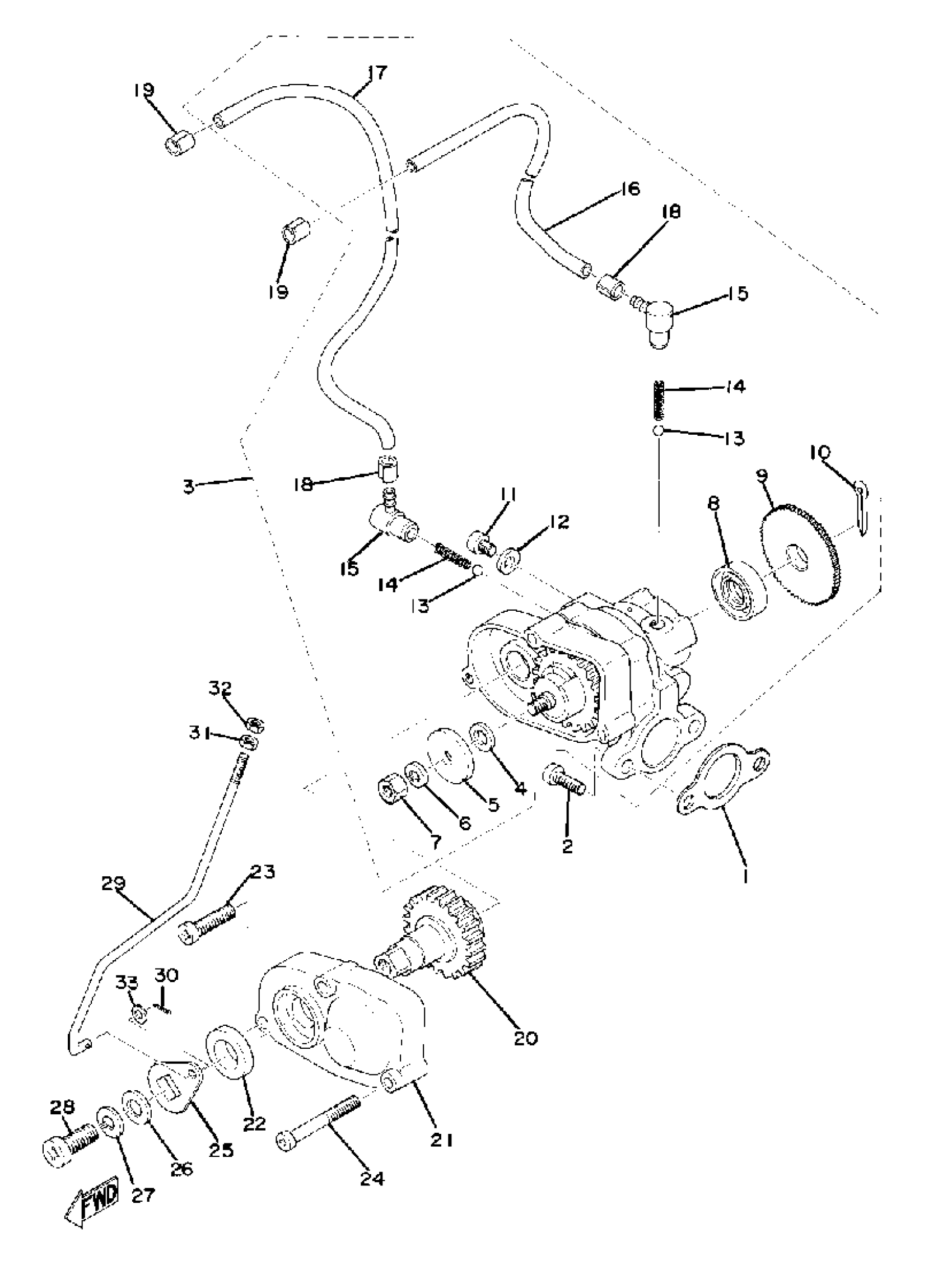

1976 Yamaha PR440 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

OIL PUMP ASSEMBLY

(8A1-13101-00-00)

1
Out of stock

4

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

4

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

4

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

5

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

9

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

10

PIN, COTTER

91490-16020-00

1

$6.23

In stock

11

SCREW, BIND

98980-04008-00

1

$3.26

In stock

12

GASKET 137131870000

90430-04004-00

1
Out of stock

13

BALL

93505-32002-00

1

$2.22

In stock

14

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

15

NOZZLE

353-13552-01-00

—
Out of stock

16

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

17

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

18

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

19

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

20

GEAR, PUMP CONTROL

(838-13154-01-00)

1
Out of stock

21

COVER, AJST PULLEY

(859-13146-00-00)

1
Out of stock

22

OIL SEAL, SO-TYPE (SO-12-20-4)

93104-12043-00

1
Out of stock

23

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

24

SCREW, PAN HEAD(MK5)

98507-04035-00

—

$6.69

In stock

25

LEVER, PUMP CONTROL

(812-13156-00-00)

1
Out of stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

SCREW, PAN

98507-06014-00

—

$6.18

In stock

29

ROD, PUMP CONTROL

(885-13157-00-00)

1
Out of stock

30

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

31

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock

32

NUT, SELF-LOCKING (838-13139-00)

90185-03007-00

1
Out of stock

33

WASHER

90201-04015-00

—
Out of stock
