1976 Yamaha PR440 Carburetor Diagram

← All diagrams

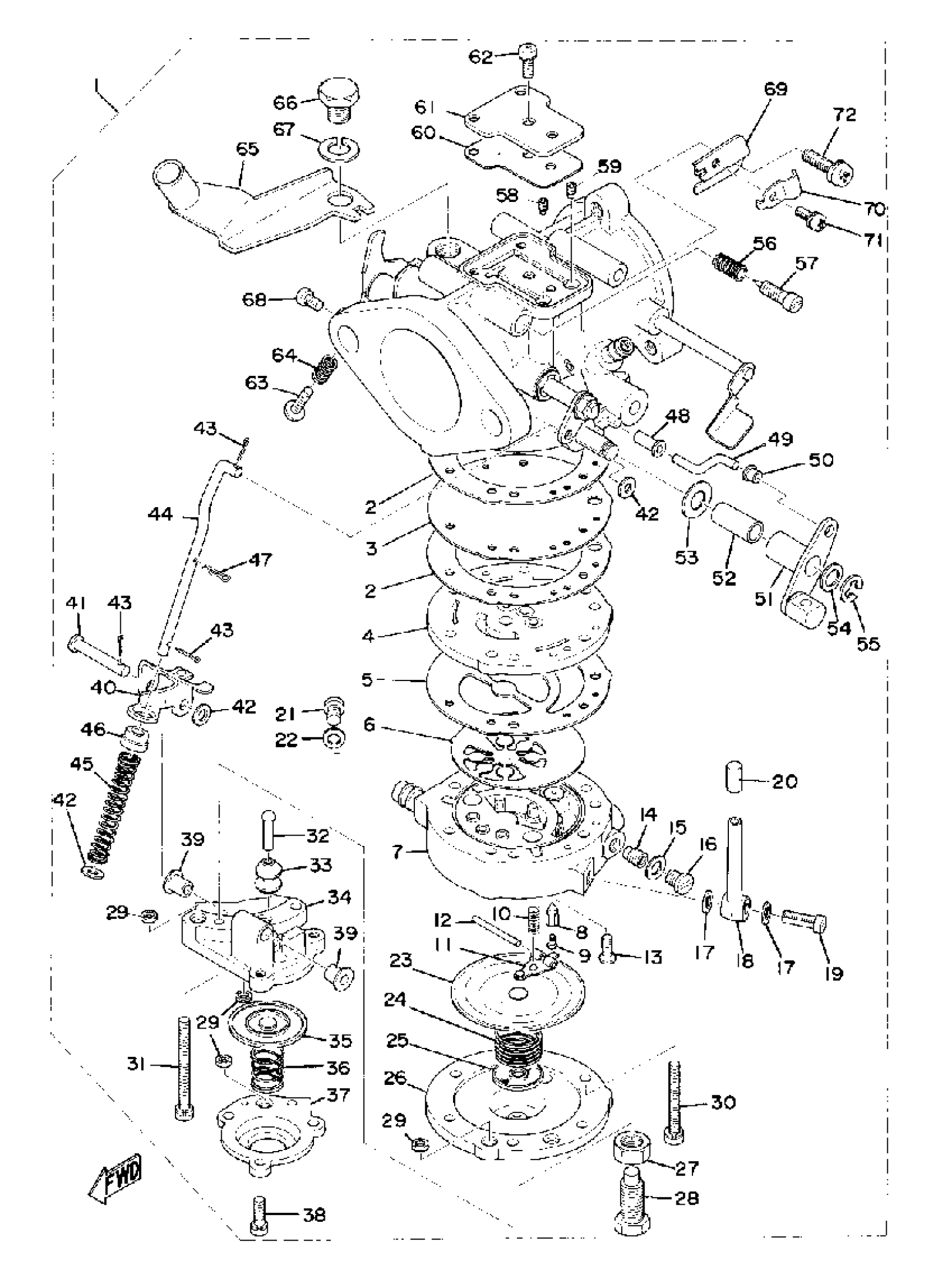

Find the part on the Carburetor diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha PR440 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(8A2-14501-00-00)

1
Out of stock

2

. GASKET

890-14536-00-00

1
Out of stock

3

. DIAPHRAGM, PUMP

890-14541-00-00

1
Out of stock

4

BODY, PUMP 1

(890-14542-00-00)

1
Out of stock

5

GASKET

865-14553-09-00

1

$14.75

In stock

6

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

7

BODY, PUMP 2

(890-14543-00-00)

1
Out of stock

8

VALVE

838-14546-00-00

1

$39.18

In stock

9

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

10

. SPRING

810-14556-00-00

1
Out of stock

11

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

12

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

13

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

14

JET, MAIN #165

(888-14516-65-00)

1
Out of stock

14

JET, MAIN #190

(888-14516-90-00)

1
Out of stock

14

JET, MAIN #170

(8A1-14516-70-00)

1
Out of stock

14

. JET, MAIN #175

8A1-14516-75-00

1
Out of stock

14

JET, MAIN #180

(8A1-14516-80-00)

1
Out of stock

14

JET, MAIN #185

(8A1-14516-85-00)

1
Out of stock

14

JET, MAIN #195

(8A1-14516-95-00)

1
Out of stock

15

WASHER

(810-14558-00-00)

1
Out of stock

16

SCREW

(845-14567-00-00)

1
Out of stock

17

. WASHER

806-14559-00-00

1
Out of stock

18

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

19

. SCREW

8A1-14592-00-00

1
Out of stock

20

. CAP, BLIND

810-24462-01-00

1
Out of stock

21

SCREW

(806-14567-01-00)

1
Out of stock

22

. UNAVAILABLE IN PRICE BOOK

810-14597-01-00

1
Out of stock

23

DIAPHRAGM

810-14545-00-00

—
Out of stock

24

. SPRING, COMPRESSION

90501-06213-00

1
Out of stock

25

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

26

BODY, PUMP 3

(866-14544-00-00)

1
Out of stock

27

. NUT

95380-08700-00

1

$3.07

In stock

28

. SCREW, STOP

884-14565-01-00

1
Out of stock

29

. O-RING

866-14561-00-00

1
Out of stock

30

SCREW

(824-14567-00-00)

1
Out of stock

31

SCREW

(858-14567-00-00)

1
Out of stock

32

. PIN, FLOAT ARM

866-14548-00-00

1
Out of stock

33

COVER

(866-14967-00-00)

1
Out of stock

34

BODY, PUMP 4

(866-14551-00-00)

1
Out of stock

35

DIAPHRAGM

(8A1-14545-00-00)

1
Out of stock

36

SPRING, COMPRESSION

(90501-07341-00)

1
Out of stock

37

COVER, FUEL

(866-14540-00-00)

1
Out of stock

38

SCREW, WITH WASHER

(90159-05006-00)

1
Out of stock

39

COLLAR

(866-14578-00-00)

1
Out of stock

40

ARM

(866-14528-00-00)

1
Out of stock

41

PIN, LEVER

(866-14554-00-00)

1
Out of stock

42

WASHER, PLATE(3TJ)

90201-08410-00

—
Out of stock

43

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

44

ROD

(890-14577-00-00)

1
Out of stock

45

. SPRING

890-14589-00-00

1
Out of stock

46

COLLAR

(866-14535-00-00)

1
Out of stock

47

SPRING

(866-14579-00-00)

1
Out of stock

48

COLLAR

(865-14535-00-00)

1
Out of stock

49

ROD

(865-14577-00-00)

1
Out of stock

50

. COLLAR

865-14534-00-00

1
Out of stock

51

. LEVER

865-14573-00-00

1
Out of stock

52

COLLAR

(806-14534-00-00)

1
Out of stock

53

. WASHER, PLATE

90202-07055-00

1
Out of stock

54

WASHER, PLATE(3TJ)

90202-06056-00

—
Out of stock

55

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock

56

SPRING, COMPRESSION

(90501-10237-00)

1
Out of stock

57

SCREW, ADJUST

(865-14522-00-00)

1
Out of stock

58

JET #48 (#48)

865-14515-48-00

1
Out of stock

59

JET #95

(890-14515-95-00)

1
Out of stock

60

GASKET

(865-14537-00-00)

1
Out of stock

61

PLATE

(8A1-14527-00-00)

1
Out of stock

62

. SCREW, WITH WASHER

90159-05005-00

1
Out of stock

63

SCREW, STOP

(8A1-14523-00-00)

1
Out of stock

64

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

65

. BRACKET, THROTTLE

865-14571-01-00

1
Out of stock

66

BOLT(62E)

97013-08012-00

—

$2.48

In stock

67

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

68

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

69

PLATE, STAY

(8A1-14580-00-00)

1
Out of stock

70

. BRACKET

879-14581-00-00

1
Out of stock

71

SCREW, WITH WASHER

(90159-04008-00)

1
Out of stock

72

. SCREW, WITH WASHER

90159-05005-00

1
Out of stock
