1976 Yamaha PR440 Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

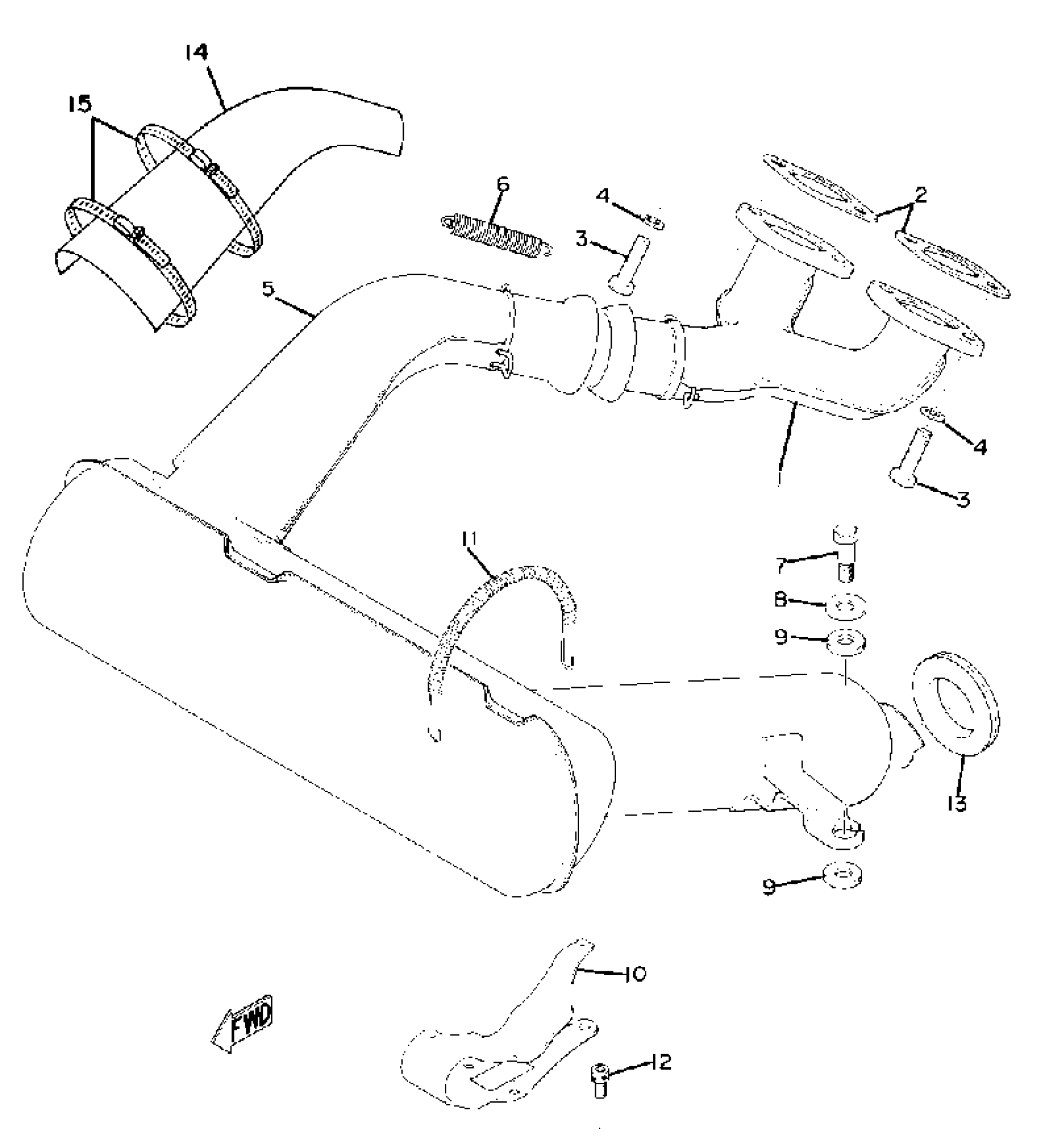

1976 Yamaha PR440 Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(8A2-14610-00-00)

1
Out of stock

2

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

3

BOLT (682)

97013-08025-00

1

$6.80

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

MUFFLER ASSEMBLY L

(8A2-14710-00-00)

1
Out of stock

6

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

7

BOLT

(90109-08403-00)

1
Out of stock

8

WASHER, PLATE (4N0)

90201-126A7-00

1

$6.28

In stock

9

DAMPER, MUFFLER 2

865-14757-00-00

1
Out of stock

10

STAY, MUFFLER 1

(8A1-14771-00-00)

1
Out of stock

11

SPRING, TENSION

90506-16130-00

1
Out of stock

12

BOLT,SOCKET HEAD

91314-06012-00

1

$6.68

In stock

13

PROTECTOR, MUFF 1 (865-14718-00)

865-14718-01-00

1
Out of stock

14

PROTECTOR, MUFF 1

(8E4-14718-01-00)

1
Out of stock

15

CLAMP, HOSE

(90460-90121-00)

1
Out of stock
