1976 Yamaha PR440 Crankcase - Cylinder Diagram

← All diagrams

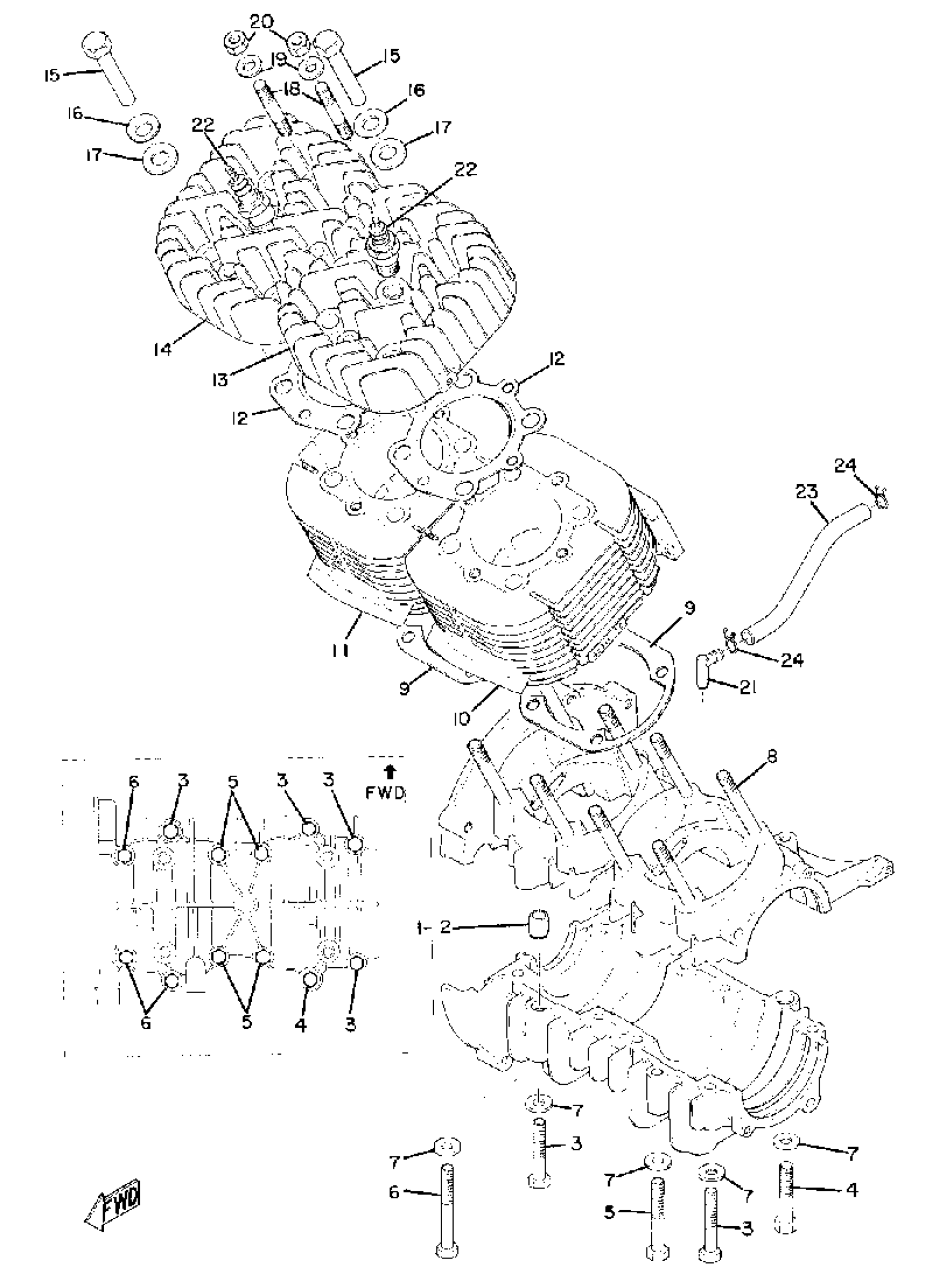

Find the part on the Crankcase - Cylinder diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha PR440 Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

838-15100-01-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

4

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

5

BOLT (663)

97013-08060-00

1

$3.25

In stock

6

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

9

GASKET, CYLINDER

857-11351-09-00

1

$3.62

In stock

10

CYLINDER 1

(885-11311-00-00)

1
Out of stock

11

CYLINDER 2

(885-11321-00-00)

1
Out of stock

12

GASKET, CYL HEAD 1

828-11181-09-00

1
Out of stock

13

HEAD, CYLINDER 1

(8A1-11111-00-00)

1
Out of stock

14

HEAD, CYLINDER 2

885-11121-00-00

1
Out of stock

15

NUT, SPEC''L SHAPE

90179-08090-00

1
Out of stock

16

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

17

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

18

BOLT, STUD

(95611-08650-00)

1
Out of stock

19

WASHER, PLATE (397)

90201-08100-00

—

$6.17

In stock

20

NUT(6L2)

95333-08600-00

—

$3.20

In stock

21

PIPE, JOINT

8E4-24461-00-00

1
Out of stock

22

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

1

$14.69

In stock

23

HOSE (L450)

90445-10144-00

—

$4.52

In stock

24

CLIP

90467-090A2-00

—

$2.51

In stock
