2005 Kawasaki Police 1000 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

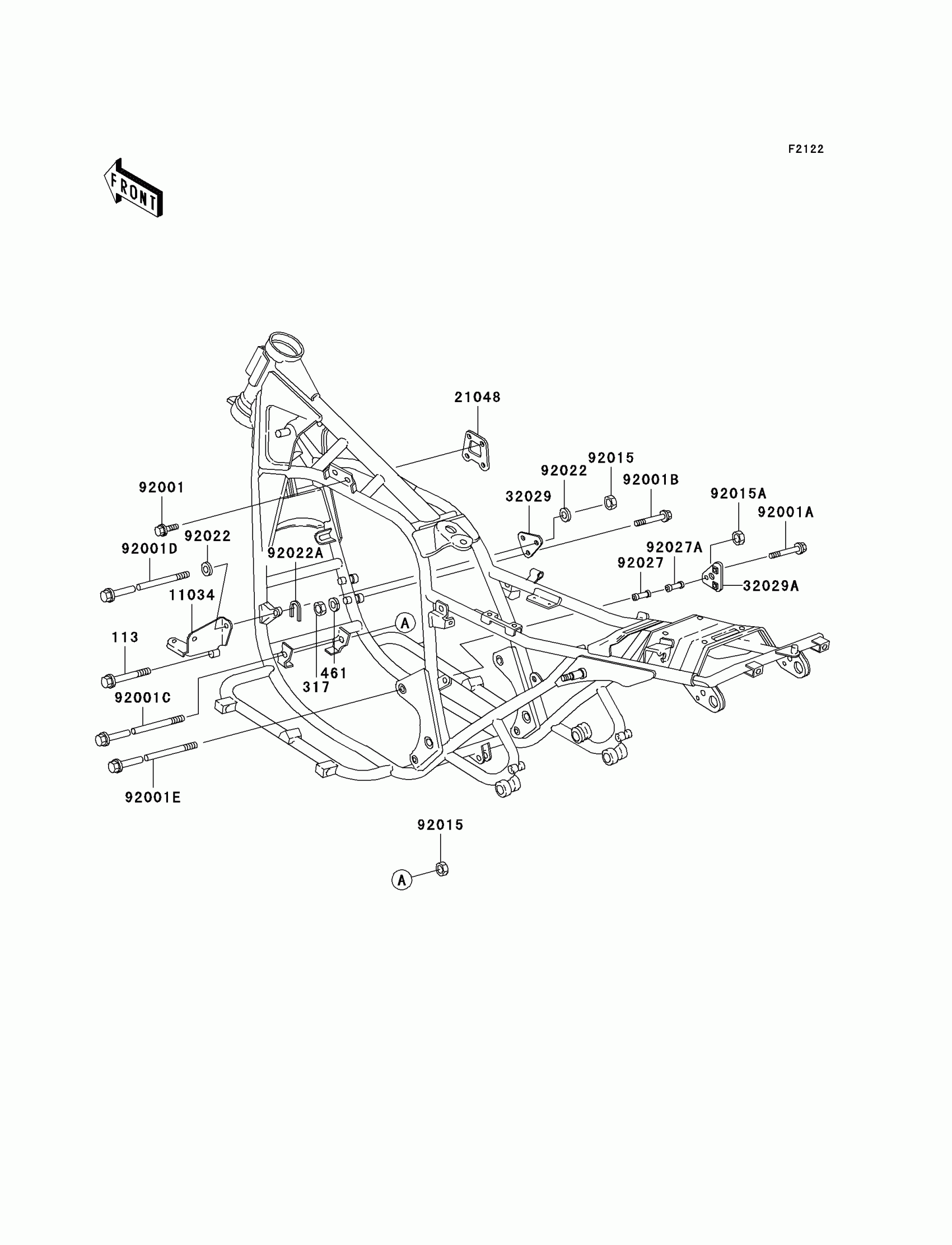

2005 Kawasaki Police 1000 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

113

BOLT,10X70

113B1070

1
Out of stock

317

NUT-HEX-SMALL,8MM,BLACK

317J0800

1
Out of stock

461

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock

11034

BRACKET,SIREN

11034-4218

1

$72.26

In stock

21048

PLATE-COIL

21048-1001

1

$19.49

In stock

32029

BRACKET-ENGINE,FR,UPP

32029-1142

1
Out of stock

32029A

BRACKET-ENGINE,RR

32029-1143

1

$21.05

In stock

92001

BOLT,6X10

92001-137

1

$5.66

In stock

92001A

BOLT,FLANGED,8X40,BLACK

92001-1612

1
Out of stock

92001B

BOLT,FLANGED,8X65,BLACK

92001-1616

1
Out of stock

92001C

BOLT,FLANGED,10X155,BLACK

92001-1620

1
Out of stock

92001D

1

$35.17

In stock

92001E

1

$40.39

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92015A

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92022

WASHER,10.5X22X4.5

92022-1022

1

$4.61

In stock

92022A

WASHER,U FORMED

92022-1259

1
Out of stock

92027

COLLAR,13X25X54

92027-1310

1

$42.33

In stock

92027A

COLLAR,13X25X29.5

92027-1311

1

$29.99

In stock
