1986 Kawasaki Police 1000 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1986 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

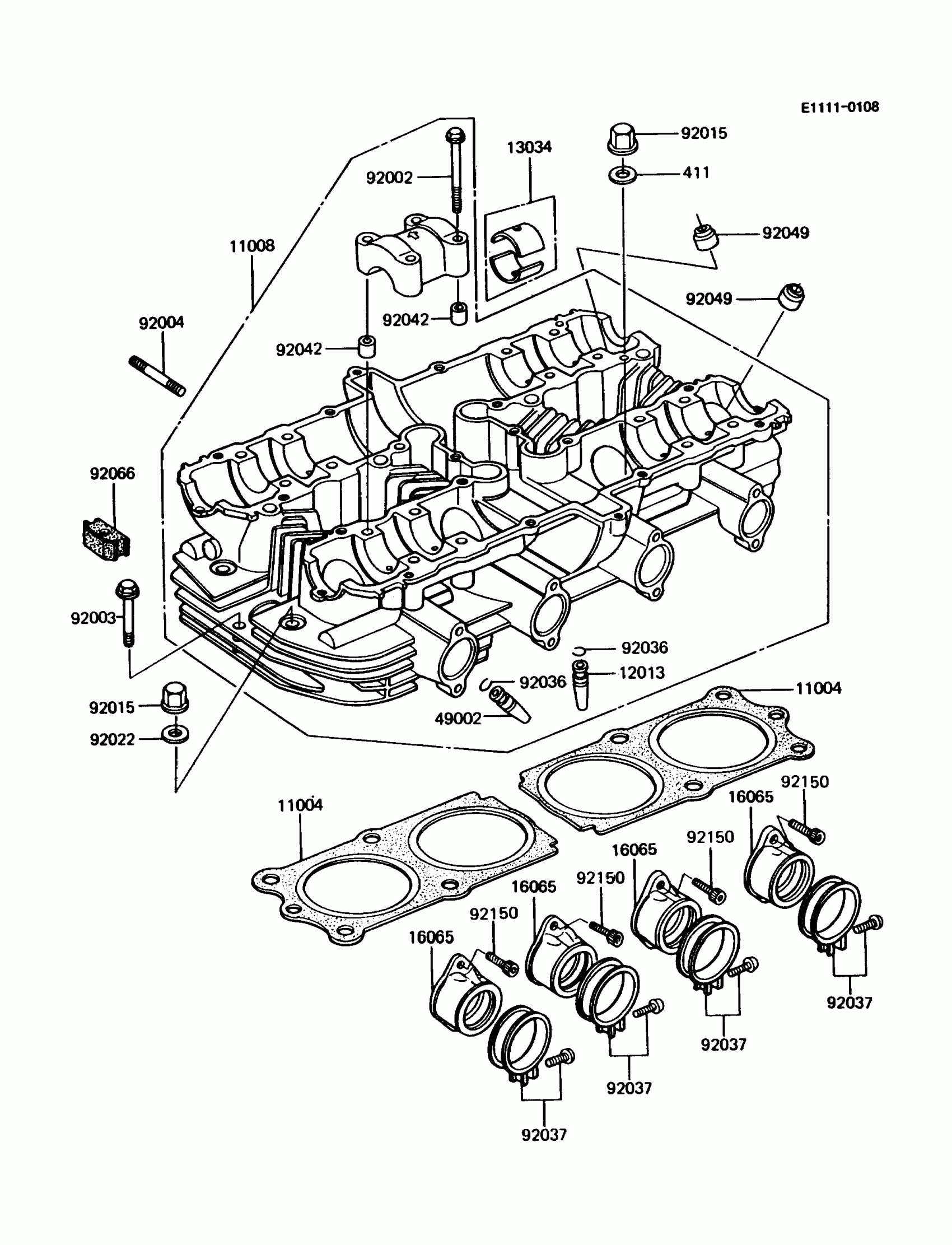

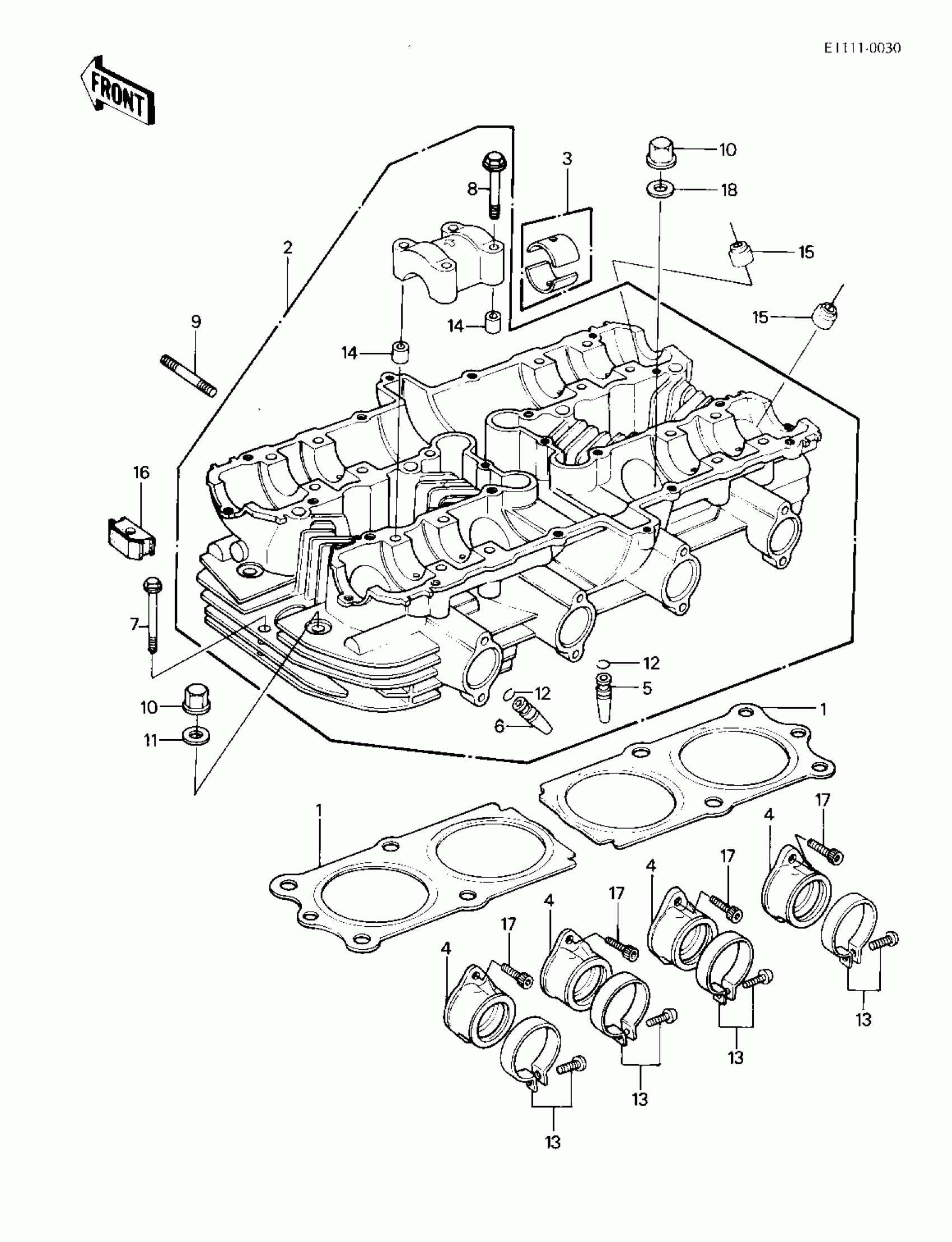

1986 Kawasaki Police 1000 Cylinder Head Diagram

#

Description
Price
Status
Order Qty

1

GASKET-HEAD

11004-1222

Out of stock

2

HEAD-COMP-CYLINDER,WH

11008-1013

Out of stock

2

HEAD-COMP-CYLINDER,SILVER

11008-1068

Out of stock

3

BUSHING,CAMSHAFT

13034-030

Out of stock

4

HOLDER-CARBURETOR

16065-1135

Out of stock

4

HOLDER-CARBURETOR

16065-1135

Out of stock

5

GUIDE-VALVE,INTAKE

12013-009

Out of stock

6

GUIDE-VALVE,EXHAUST

49002-1002

Out of stock

7

BOLT,FLANGED,6X45

92003-092

Out of stock

8

BOLT,6X43

92002-1881

Out of stock

8

BOLT,6X45

92002-1300

Out of stock

9

STUD,8X30

92004-1069

Out of stock

9

STUD,8X30

92004-1121

Out of stock

10

NUT,FLANGED CAP,10MM

92015-076

Out of stock

11

WASHER,10.5X22X1.6

92022-1005

Out of stock

12

RING-SNAP,VALVE GUIDE

92036-023

Out of stock

13

CLAMP,53M/M

92037-201

Out of stock

13

CLAMP,ID=53,BLACK

92037-1304

Out of stock

14

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

15

SEAL-OIL,RV37129.5

92049-016

Out of stock

16

PLUG,CYLINDER HEAD COVER

92066-1106

Out of stock

16

PLUG,CYLINDER HEAD COVER

92066-1106

Out of stock

17

BOLT-SOCKET,6X16

120S0616

Out of stock

17

BOLT,6X16

92002-1143

Out of stock

18

WASHER-PLAIN,10MM

411B1000

Out of stock
