1995 Kawasaki Police 1000 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1995 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

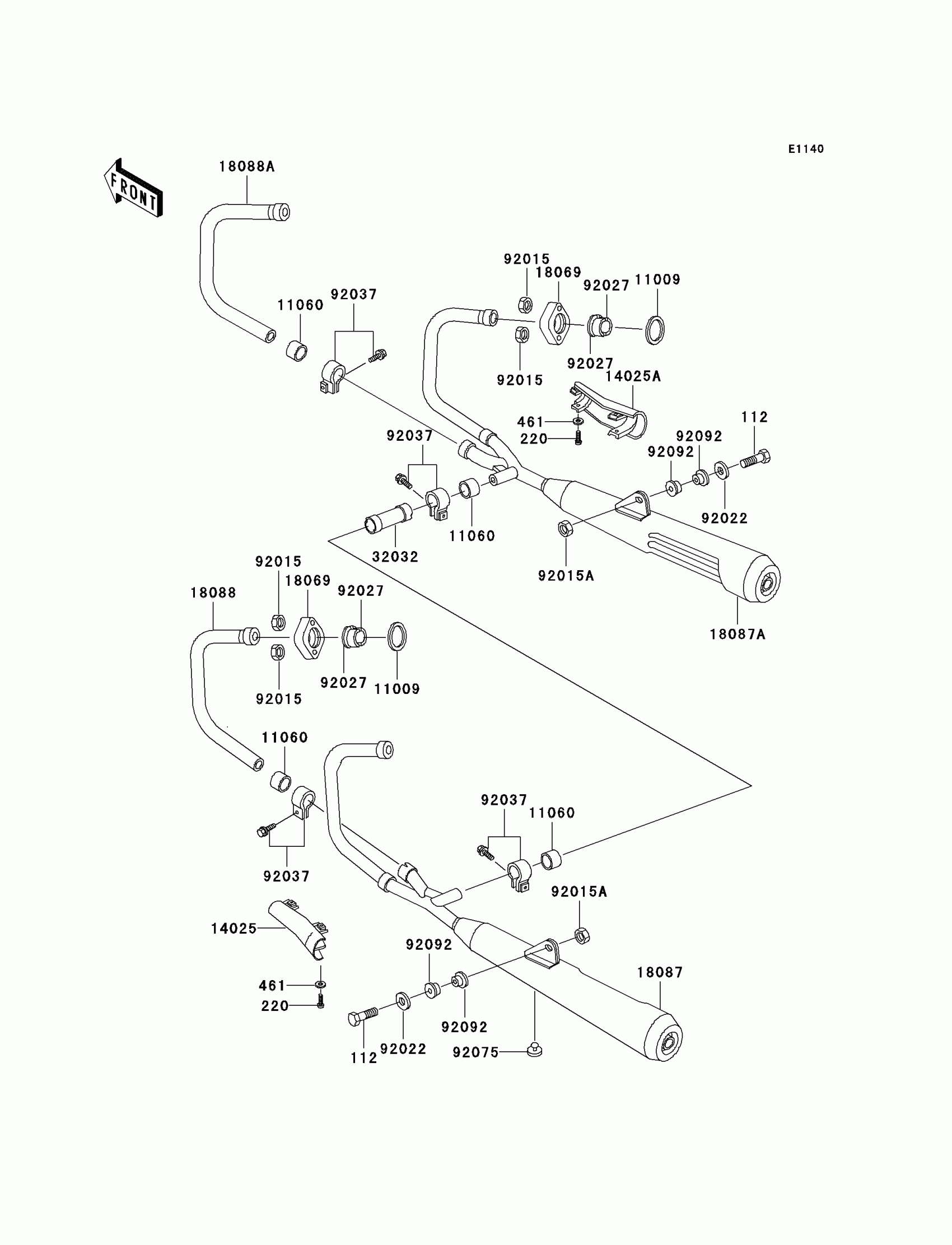

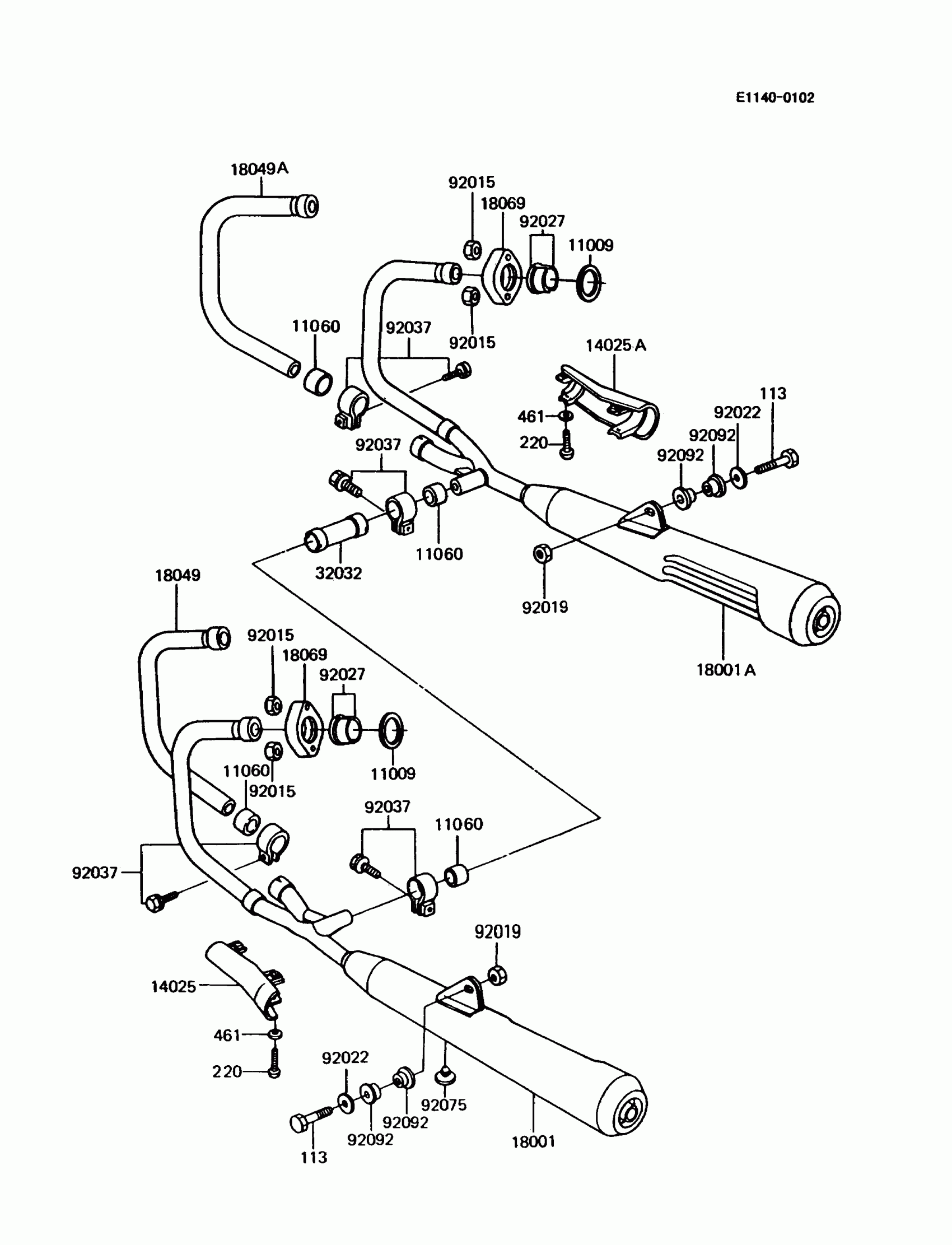

1995 Kawasaki Police 1000 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE

11009-1906

1

$8.76

In stock

11060

1

$26.40

In stock

14025

COVER,MUFFLER,LH

14025-1355

1
Out of stock

14025A

COVER,MUFFLER,RH

14025-1356

1
Out of stock

18001

MUFFLER,LH

18001-1595

1

$419.52

In stock

18001A

MUFFLER,RH

18001-1596

1

$698.21

In stock

18049

PIPE-EXHAUST,#2

18049-1188

1

$197.33

In stock

18049A

PIPE-EXHAUST,#3

18049-1189

1

$197.33

In stock

18069

HOLDER-EXHAUST PIPE

18069-1015

1

$38.59

In stock

32032

1

$32.91

In stock

92015

NUT,8MM

92015-1398

1

$3.81

In stock

92019

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92022

WASHER

92022-289

1
Out of stock

92027

COLLAR,EXHAUST PIPE

92027-1300

1

$6.03

In stock

92037

CLAMP,MUFFLER

92037-1258

1

$12.56

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92092

1

$12.79

In stock

113

BOLT-SMALL-FINE,10X55

113N1055

1
Out of stock

220

SCREW-PAN-CROS

220X0645

1

$3.85

In stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
