1995 Kawasaki Police 1000 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1995 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

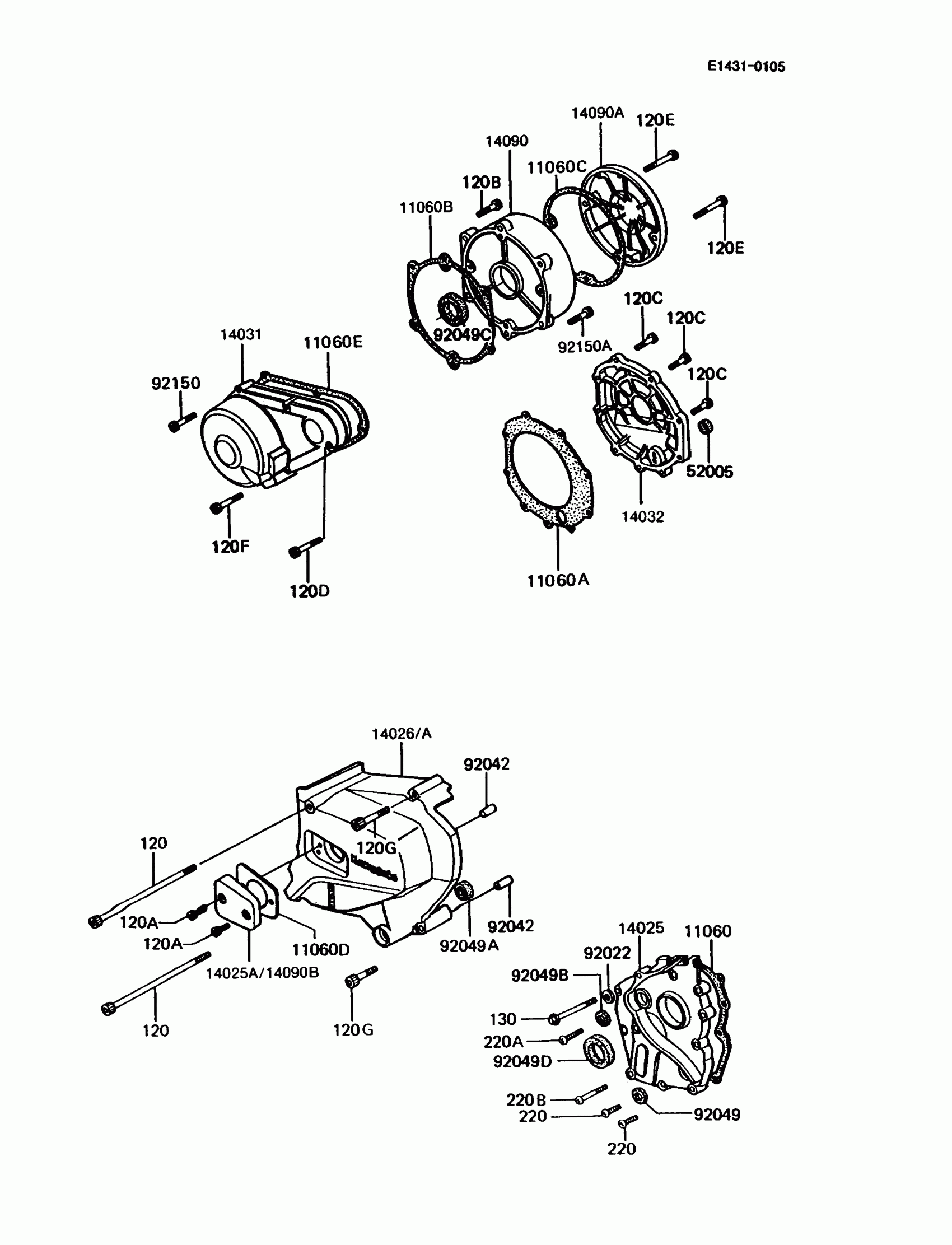

1995 Kawasaki Police 1000 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$13.95

In stock

11060A

GASKET,CLUTCH COVER

11060-1070

1
Out of stock

11060B

GASKET,RH ENGINE COVER

11060-1071

1
Out of stock

11060C

1

$12.63

In stock

11060D

1

$5.08

In stock

11060E

GASKET,GENERATOR COVER

11060-1075

1
Out of stock

14025

COVER,TRANSMISSION

14025-1240

1
Out of stock

14026A

COVER-CHAIN

14026-1202

1

$239.23

In stock

14031

COVER-GENERATOR

14031-1292

1

$330.99

In stock

14032

COVER-CLUTCH

14032-1375

1

$261.57

In stock

14090

COVER,ENGINE COVER

14090-1420

1

$252.61

In stock

14090A

COVER,PULSING COIL

14090-1421

1

$76.24

In stock

14090B

1

$31.00

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92022

1

$3.13

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92049

SEAL-OIL,SB12205

92049-004

1
Out of stock

92049A

SEAL-OIL,CLUTCH RELEASE

92049-1003

1
Out of stock

92049B

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049C

SEAL-OIL,SC32487

92049-1033

1
Out of stock

92049D

SEAL-OIL,AE2343F0

92049-1070

1
Out of stock

92150

BOLT,SOCKET,6X40

92150-1653

1

$1.44

In stock

92150A

BOLT,SOCKET,6X22

92150-1654

1
Out of stock

120

BOLT-SOCKET

120Z06125

1
Out of stock

120A

BOLT-SOCKET

120Z0614

1
Out of stock

120B

BOLT-SOCKET

120Z0622

1
Out of stock

120C

BOLT-SOCKET

120Z0625

1
Out of stock

120D

BOLT-SOCKET,6X30

120Z0630

1
Out of stock

120E

BOLT-SOCKET

120Z0635

1
Out of stock

120F

BOLT-SOCKET,6X40

120Z0640

1
Out of stock

120G

BOLT-SOCKET

120Z0670

1
Out of stock

130

BOLT-FLANGED,6X55

130G0655

1
Out of stock

220

1

$4.61

In stock

220A

SCREW PAN HEAD 6X28

220B0628

1
Out of stock

220B

SCREW PAN HEAD 6X40

220B0640

1
Out of stock
