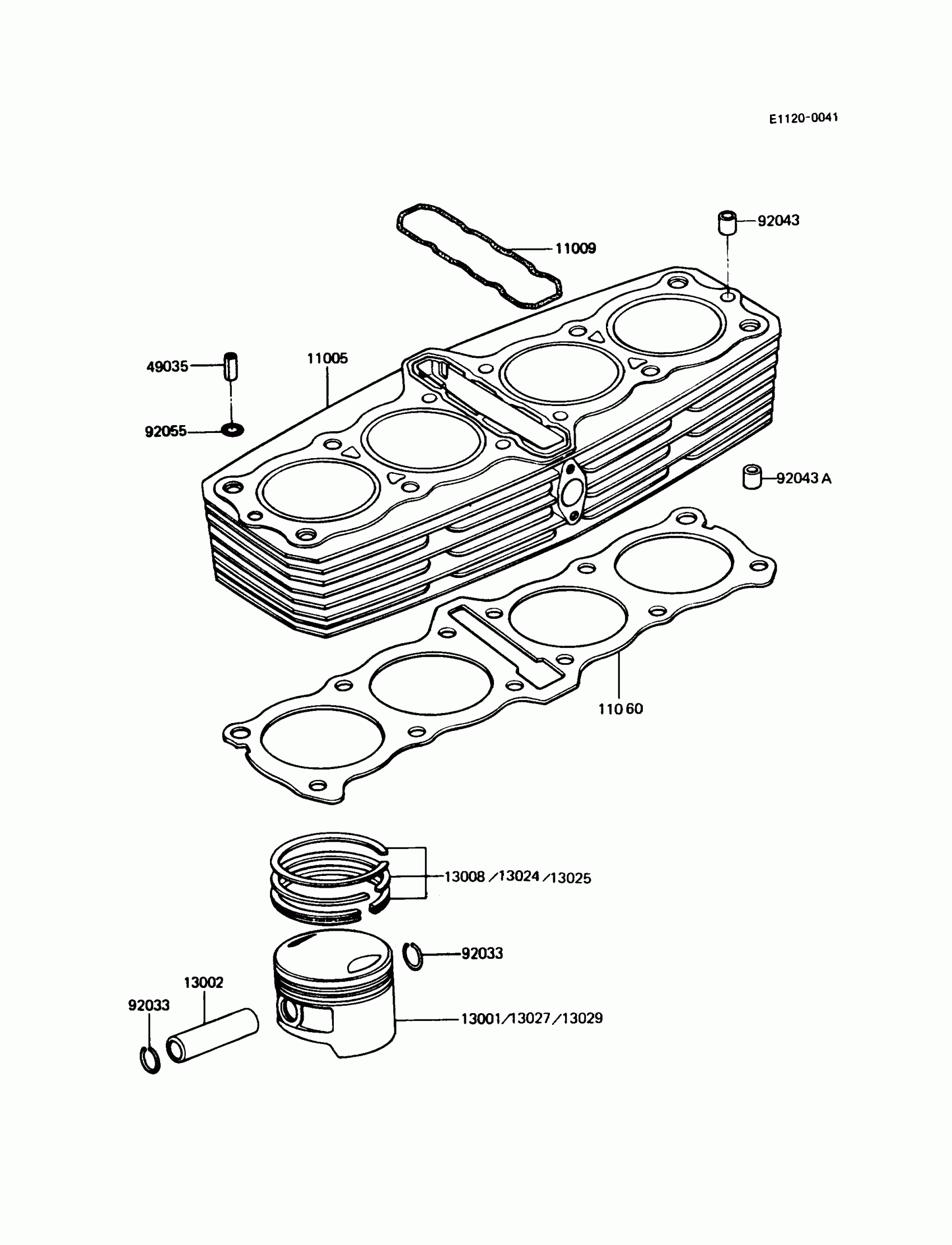

Kawasaki Police 1000 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE,SILVER

11005-1327

$1,558.01

11009

GASKET,CYLINDER

11009-1208

$83.66

11060

GASKET,CYLINDER BASE

11060-1067

Unavailable

13001

PISTON-ENGINE,STD

13001-1416

$119.23

13002

PIN-PISTON

13002-1013

$5.04

13008

RING-SET-PISTON,STD

13008-5056

$76.88

13024

RING-SET-PISTON LL,O/S 1.00

13024-5024

$78.89

13025

RING-SET-PISTON L,O/S 0.50

13025-5024

$90.07

13027

PISTON-ENGINE LL,O/S 1.00

13027-1056

$125.50

13029

PISTON-ENGINE L,O/S 0.50

13029-1058

$125.50

49035

PIN-SPRING

49035-1051

$8.07

92033

RING-SNAP

92033-1054

$1.76

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,11X14X12.3

92043-1266

$0.86

92055

RING-O,OD=18.5

92055-1148

$11.31
