1986 Kawasaki Police 1000 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1986 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

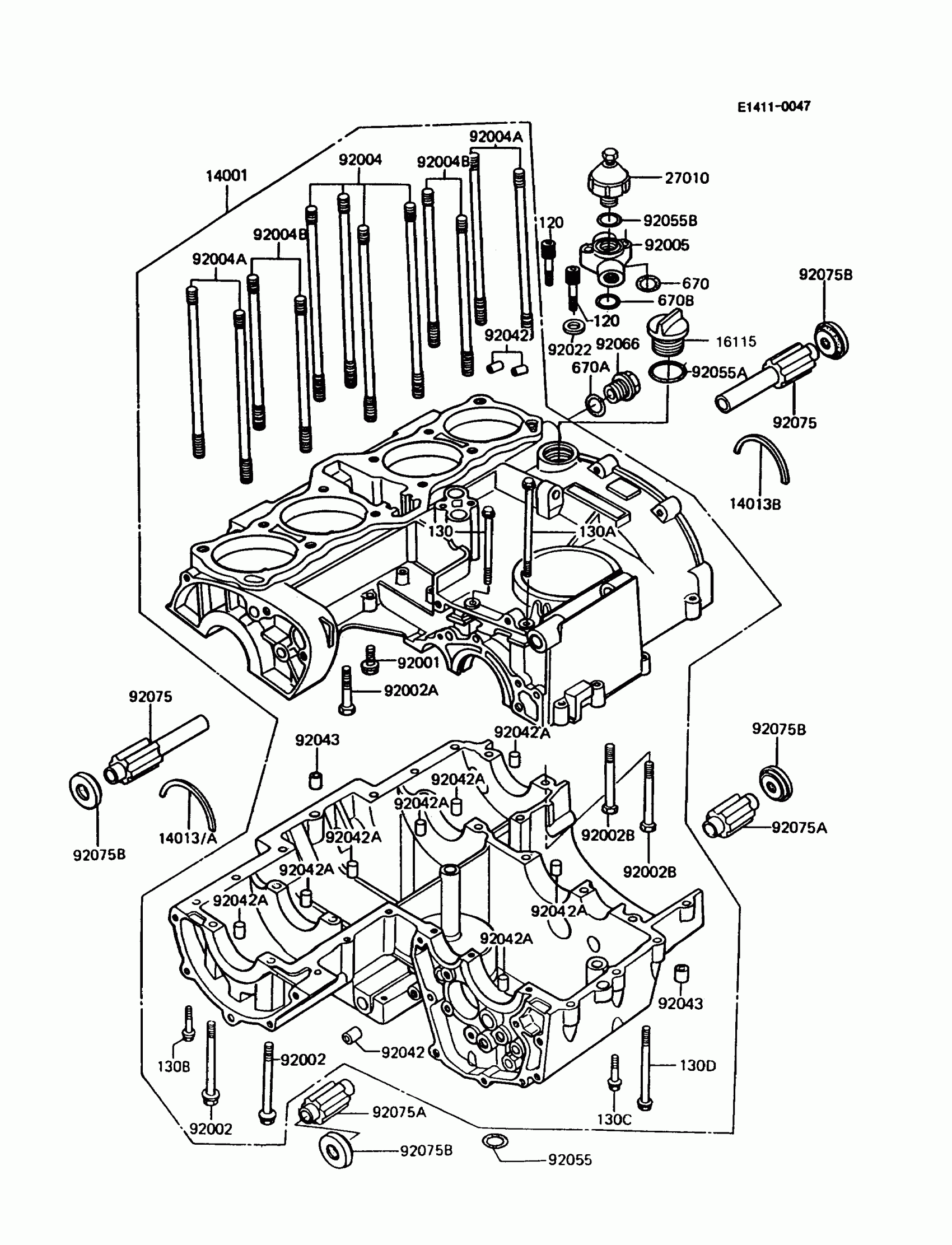

1986 Kawasaki Police 1000 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

SET-CRANKCASE,SILVER

14001-5099

Out of stock

2

RING-POSITION,T=1.90

14013-013

Out of stock

3

RING-POSITION,T=1.98

14013-1004

Out of stock

4

RING-POSITION,T=1.98

14013-1005

Out of stock

5

RING-POSITION

14013-1006

Out of stock

6

CAP-OIL FILLER

16115-013

$18.64

In stock

7

SWITCH,OIL PRESSURE

27010-1013

$36.43

In stock

8

BOLT,FLANGED,8X16

92001-1349

$5.02

In stock

9

BOLT-FLANGED,8X95

130P0895

Out of stock

9

BOLT-FLANGED,8X95

130P0895

Out of stock

9

BOLT,8X95

92002-1077

$10.63

In stock

10

BOLT,HEX HEAD,8X72

92003-107

Out of stock

11

BOLT,8X72

92002-1329

$10.24

In stock

11

BOLT,HEX HEAD,8X81

92003-108

Out of stock

11

BOLT,8X80

92002-1330

$3.22

In stock

12

STUD,10X167

92004-1002

Out of stock

13

STUD,10X158

92004-1003

Out of stock

14

STUD,10X133

92004-1004

Out of stock

15

FITTING,OIL PRESSURE SWITCH

92005-1030

Out of stock

16

WASHER,8.2X16X1

92022-1086

$2.85

In stock

17

PIN,DOWEL,6.3X8X14

92042-007

$4.51

In stock

18

PIN,DOWEL,6X16

92042-016

$3.97

In stock

19

PIN,DOWEL,10X14

92043-1037

$0.76

In stock

20

RING-O,OD=18

92055-048

$3.81

In stock

21

RING-O,31.5X2.6

92055-049

$3.43

In stock

22

RING-O,19.5X1.5

92055-055

$3.43

In stock

23

PLUG,14X12

92066-021

$20.69

In stock

24

$40.84

In stock

25

$26.48

In stock

26

$16.49

In stock

27

BOLT-SOCKET,8X35

120P0835

Out of stock

27

BOLT-SOCKET

120Z0835

Out of stock

28

BOLT-FLANGED,6X100

130G06100

Out of stock

28

BOLT-FLANGED

130Y06100

Out of stock

29

BOLT-FLANGED,6X115

130G06115

Out of stock

29

BOLT-FLANGED

130Y06115

Out of stock

30

BOLT-FLANGED,6X40

130G0640

Out of stock

30

BOLT-FLANGED

130Y0640

Out of stock

31

BOLT-FLANGED

130Y0655

Out of stock

32

BOLT-FLANGED

130Y0695

Out of stock

33

O RING,9MM

670B1509

$2.92

In stock

34

O RING,15MM

670B2015

$1.25

In stock

35

O RING,18MM

670B2018

$1.25

In stock
