1989 Kawasaki Ninja® ZX™-7 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1989 Kawasaki Ninja® ZX™-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

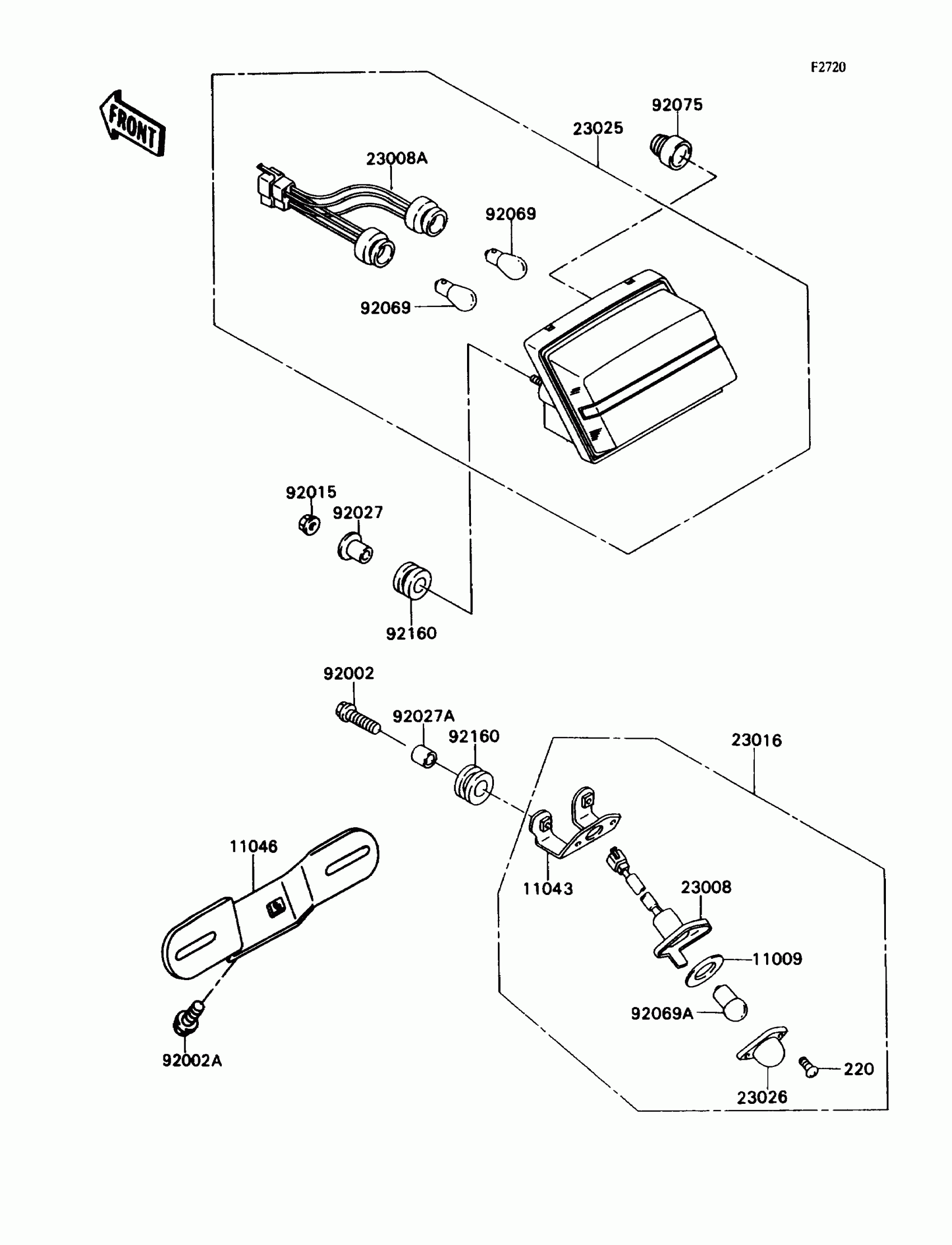

1989 Kawasaki Ninja® ZX™-7 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.14

In stock

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

1
Out of stock

11046

BRACKET,LICENSE

11046-1504

1

$10.92

In stock

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

1
Out of stock

23008A

1

$37.08

In stock

23016

1

$77.63

In stock

23025

LAMP-TAIL

23025-1187

1
Out of stock

23026

LENS,LAMP

23026-1054

1

$9.02

In stock

92002

BOLT,6X25

92002-1135

1

$3.85

In stock

92002A

BOLT,6X14

92002-1351

1

$3.43

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92027A

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER

92075-035

1

$3.65

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock
