1989 Kawasaki Ninja® ZX™-7 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1989 Kawasaki Ninja® ZX™-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

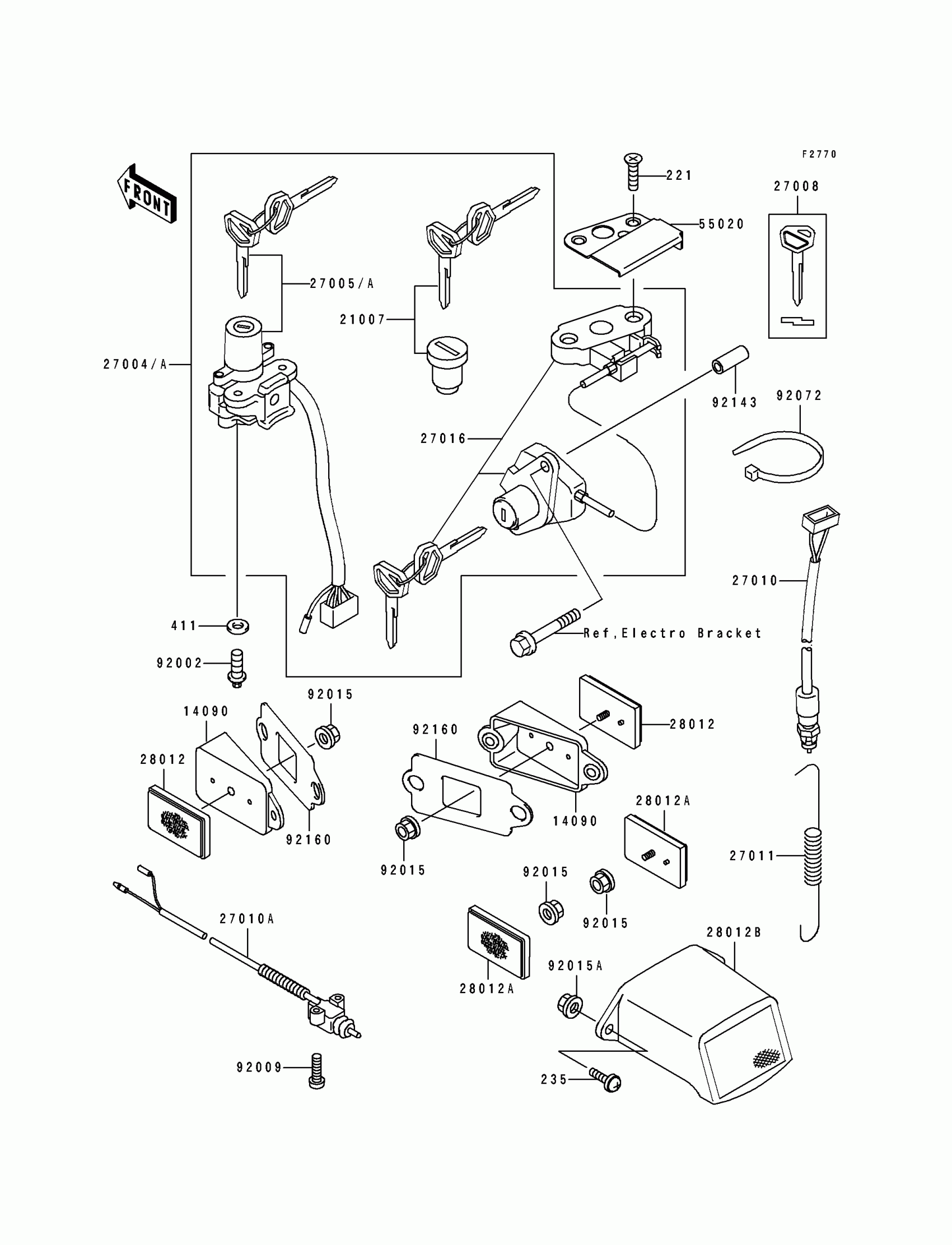

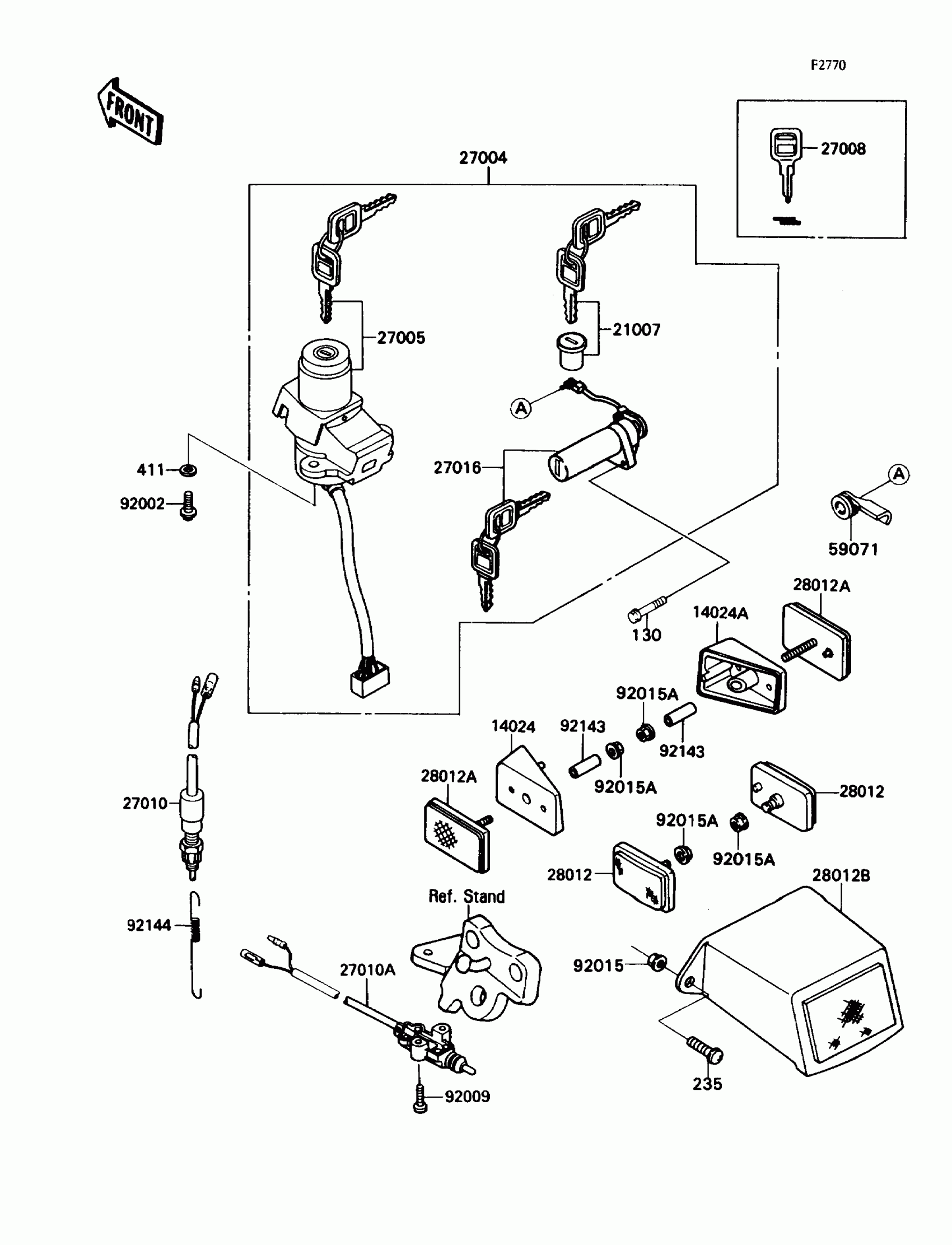

1989 Kawasaki Ninja® ZX™-7 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,REFLECTOR,LH

14024-1812

1
Out of stock

14024A

COVER,REFLECTOR,RH

14024-1813

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5027

1
Out of stock

27004

SWITCH-ASSY

27004-5357

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5081

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,BRAKE LAMP

27010-1093

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1223

1
Out of stock

27016

LOCK-ASSY,SEAT

27016-5151

1
Out of stock

28012

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1064

1
Out of stock

28012B

REFLECTOR-REFLEX,RR

28012-1066

1
Out of stock

59071

JOINT

59071-1125

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1
Out of stock

92009

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92143

COLLAR,5.6X8X25

92143-1231

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1283

1
Out of stock

130

BOLT-FLANGED,5X30

130H0530

1
Out of stock

235

SCREW-PAN-WP-CROS,6X20

235C0620

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1
Out of stock
