Partiron

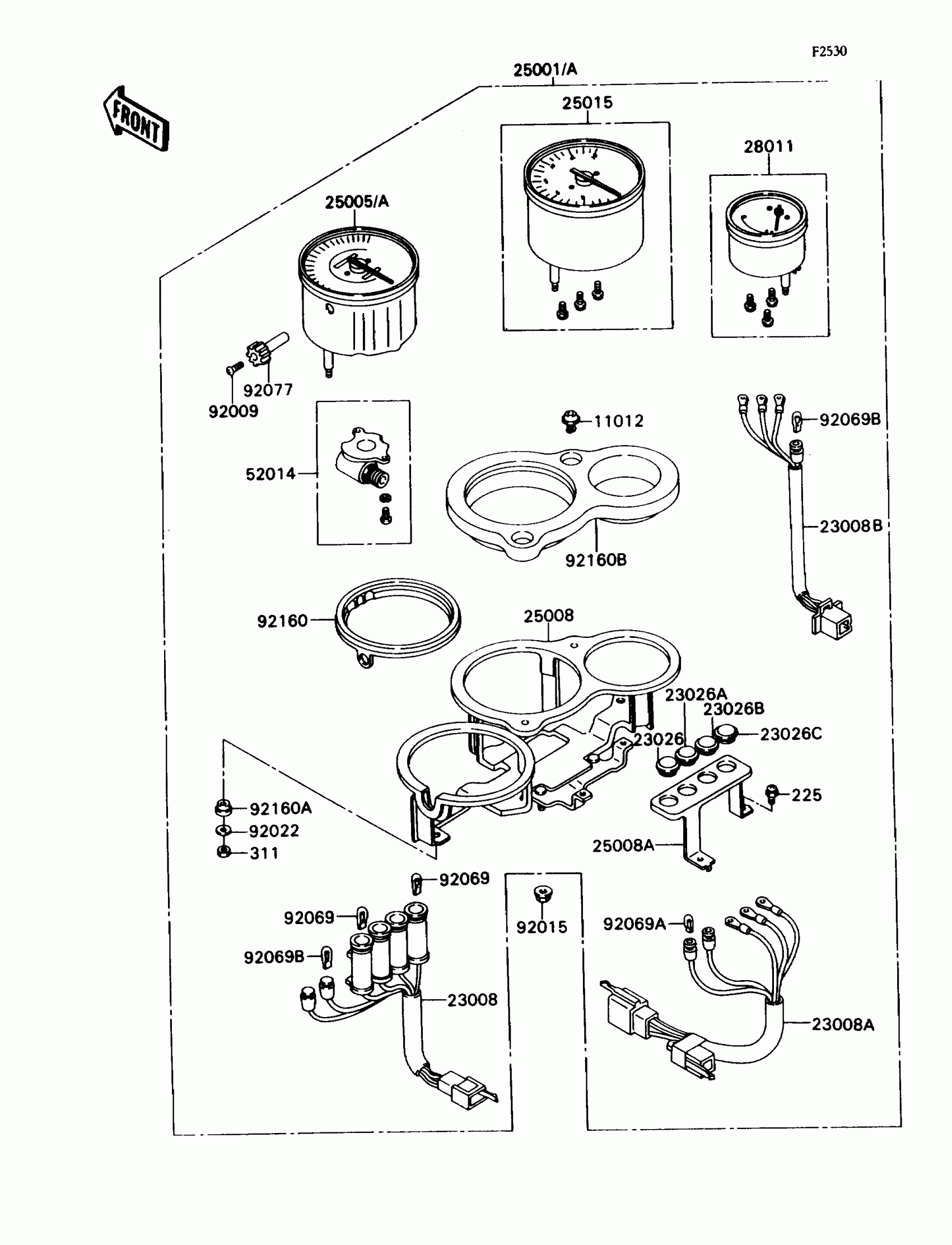

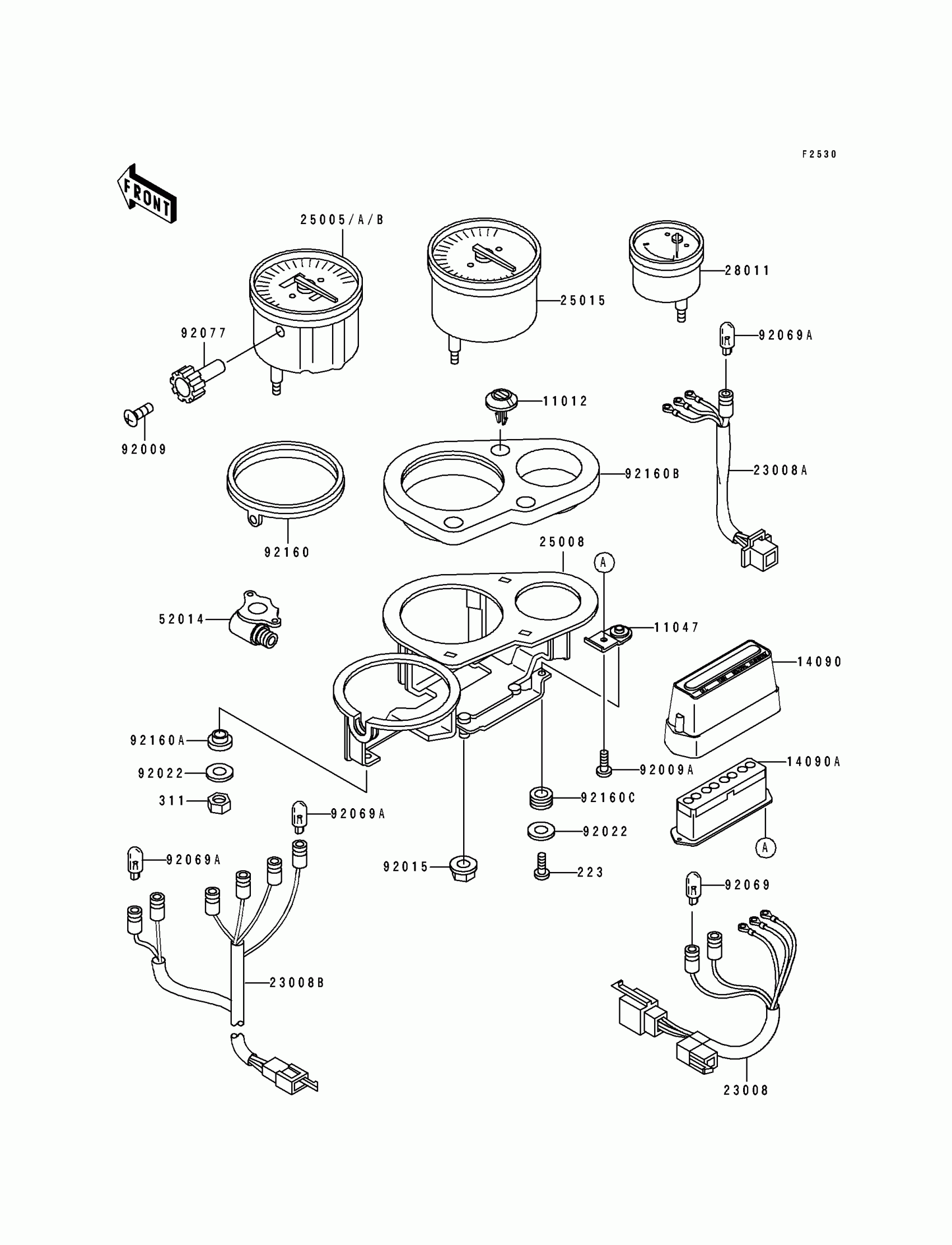

Kawasaki Ninja® ZX™-7 Meter(s) Diagram

#

Description
Price

11012

CAP

11012-1701

Unavailable

23008

SOCKET-ASSY,SPEEDOMETER

23008-1385

$88.95

23008A

SOCKET-ASSY,TACHOMETER

23008-1386

Unavailable

23008B

SOCKET-ASSY,TEMP METER

23008-1388

Unavailable

23026

LENS,PILOT,RED

23026-1105

$9.12

23026A

LENS,PILOT,ORANGE

23026-1106

$8.61

23026B

LENS,PILOT,GREEN

23026-1107

$9.12

23026C

LENS,PILOT,BLUE

23026-1108

$8.10

25001

METER-ASSY,MPH

25001-1742

$1,285.69

25001A

METER-ASSY,KPH

25001-1743

Unavailable

25005

SPEEDOMETER,MPH

25005-1396

$351.54

25005A

SPEEDOMETER,KPH

25005-1397

Unavailable

25008

BRACKET-METER

25008-1154

$128.38

25008A

BRACKET-METER

25008-1155

$37.86

25015

TACHOMETER,X1000R/MIN

25015-1279

$437.04

28011

METER,TEMP

28011-1110

$160.90

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

Unavailable

92009

SCREW,2X6,BLACK

92009-1172

$2.15

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92022

WASHER,4.3X12.5X1

92022-1949

$3.17

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92069A

BULB,12V 3W,T7

92069-1020

Unavailable

92069B

BULB,14V 3W,T6.5

92069-1068

$3.81

92077

KNOB,METER

92077-1073

$17.15

92160

DAMPER,SPEEDOMETER

92160-1064

$25.24

92160A

DAMPER

92160-1068

$7.44

92160B

DAMPER,TACHOMETER

92160-1122

Unavailable

225

SCREW-PAN-WSP-CROS

225C0410

$3.64

311

NUT-HEX

311C0400

$0.63
