1989 Kawasaki Ninja® ZX™-7 Generator Shaft Diagram

← All diagrams

Find the part on the Generator Shaft diagram for your 1989 Kawasaki Ninja® ZX™-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

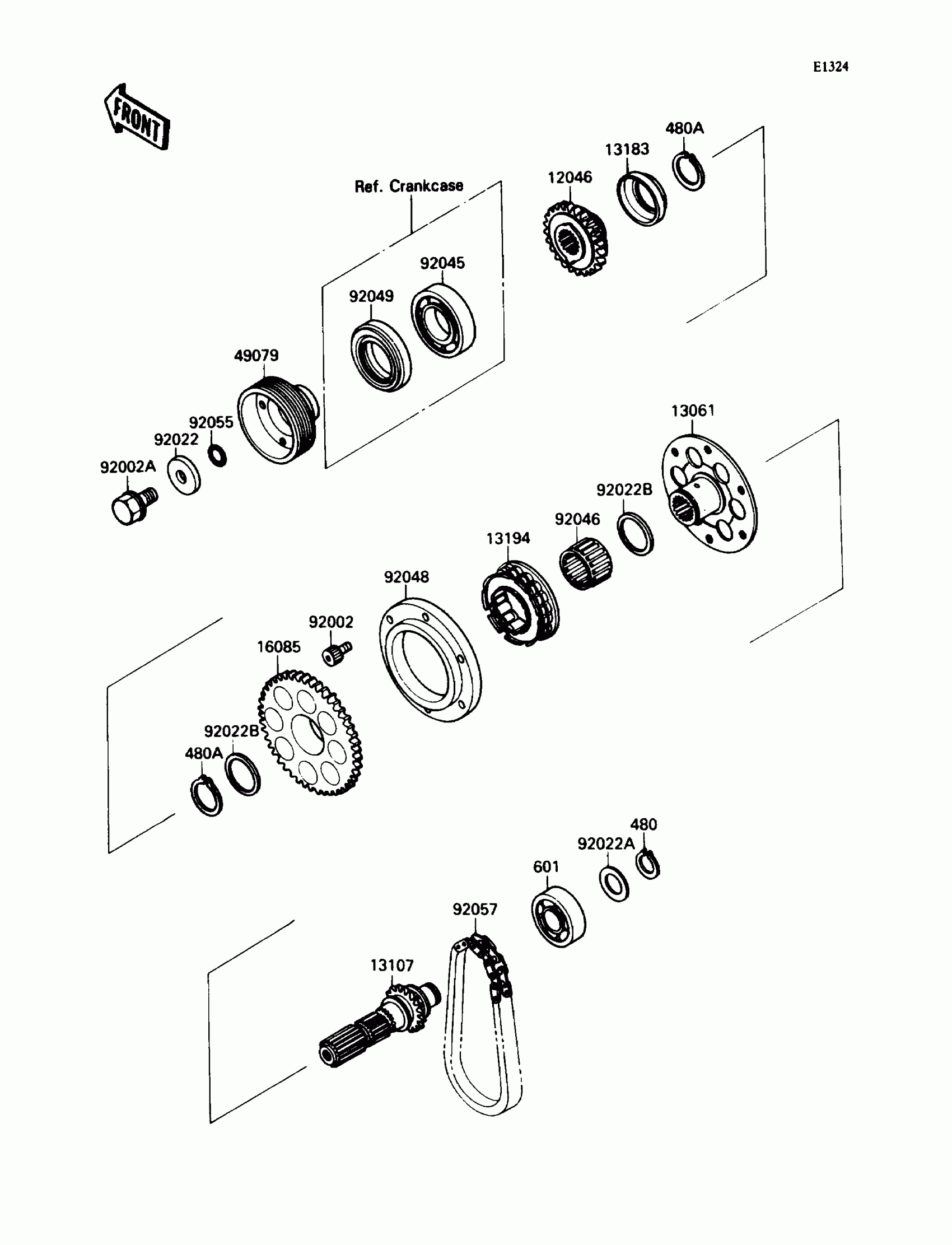

1989 Kawasaki Ninja® ZX™-7 Generator Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,23T

12046-1090

1
Out of stock

13061

BOSS,ONEWAY CLUTCH

13061-1197

1
Out of stock

13107

SHAFT

13107-1186

1
Out of stock

13183

PLATE

13183-1015

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1068

1
Out of stock

16085

GEAR,ONEWAY CLUTCH

16085-1173

1
Out of stock

49079

PULLEY-BELT

49079-1057

1
Out of stock

92002

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92002A

BOLT,PULLEY

92002-1853

1
Out of stock

92022

WASHER,11X28X4.5

92022-1816

1
Out of stock

92022A

WASHER,17X25X1.6

92022-1842

1
Out of stock

92022B

WASHER,25.3X32X0.5

92022-225

1
Out of stock

92045

BEARING-BALL,60/28

92045-1176

1
Out of stock

92046

BEARING-NEEDLE,K253020S

92046-1022

1
Out of stock

92048

RACE,ONEWAY CLUTCH

92048-1068

1
Out of stock

92049

SEAL-OIL,TC35527.5

92049-1266

1
Out of stock

92055

RING-O,16.3X3.5

92055-1353

1
Out of stock

92057

CHAIN,BF04M

92057-1219

1
Out of stock

480

CIRCLIP-TYPE-C,17MM

480J1700

1
Out of stock

480A

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

601

BEARING-BALL,#6203

601A6203

1
Out of stock
