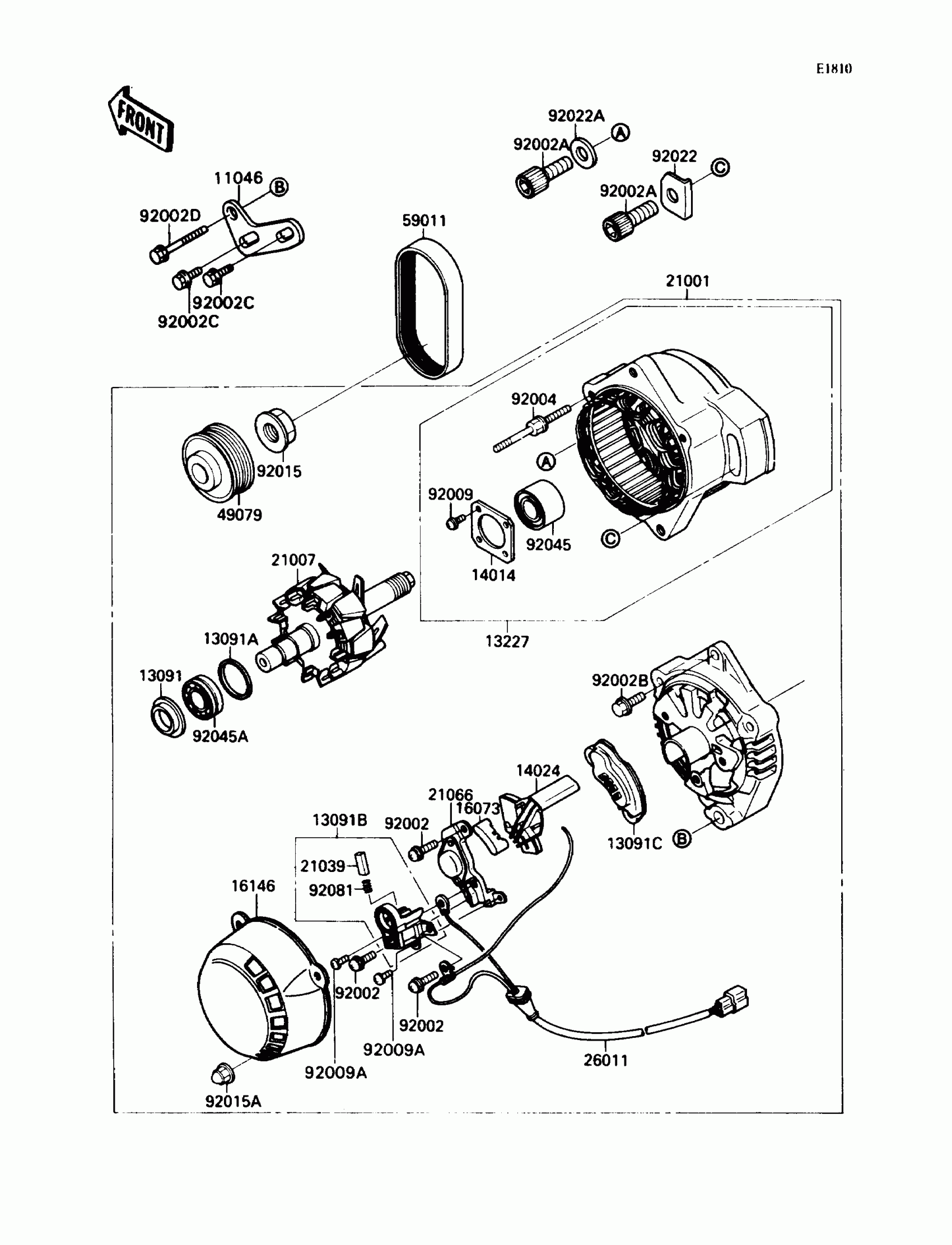

Kawasaki Ninja® ZX™-7 Generator Diagram

#

Description
Price

11046

BRACKET,GENERATOR

11046-1717

Unavailable

13091

HOLDER,COVER

13091-1327

$18.17

13091A

HOLDER,BEARING

13091-1328

$12.90

13091B

HOLDER,BRUSH

13091-1465

$113.58

13091C

RECTIFIER

13091-1466

$522.25

13227

HOUSING,GENERATOR

13227-1078

Unavailable

14014

PLATE-POSITION

14014-1085

Unavailable

14024

COVER,RECTIFIER

14025-1942

$10.61

16073

INSULATOR

16073-1062

$20.58

16146

COVER-ASSY,GENERATOR

16146-1100

$154.76

21001

GENERATOR

21001-1098

$1,279.77

21007

ROTOR,GENERATOR

21007-1194

$617.32

21039

BRUSH,CARBON

21039-1052

$29.01

21066

REGULATOR-VOLTAGE

21066-1056

$424.45

26011

WIRE-LEAD,GENERATOR

26011-1461

$65.73

49079

PULLEY-BELT

49079-1058

$82.37

59011

BELT,GENERATOR

59011-1054

Unavailable

92002

SCREW,5X17.5

92002-1380

$4.46

92002A

BOLT,SOCKET,10X45

92002-1854

Unavailable

92002B

BOLT

92002-1919

$9.17

92002C

BOLT,6X16

92002-1933

$3.60

92002D

BOLT,8X50

92002-1934

Unavailable

92004

STUD

92004-1196

$23.20

92009

SCREW

92009-1462

$4.39

92009A

SCREW

92009-1585

$4.24

92015

NUT,PULLEY LOCK

92015-1650

$9.86

92015A

NUT

92015-1800

Unavailable

92022

WASHER

92022-1819

Unavailable

92022A

WASHER,10.5X19X3.2

92022-1820

$3.85

92045

BEARING-BALL

92045-1195

$99.30

92045A

BEARING-BALL,#6002NC

92045-1237

$54.40

92081

SPRING,BRUSH

92081-1759

$7.88
