1989 Kawasaki Ninja® ZX™-7 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 1989 Kawasaki Ninja® ZX™-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

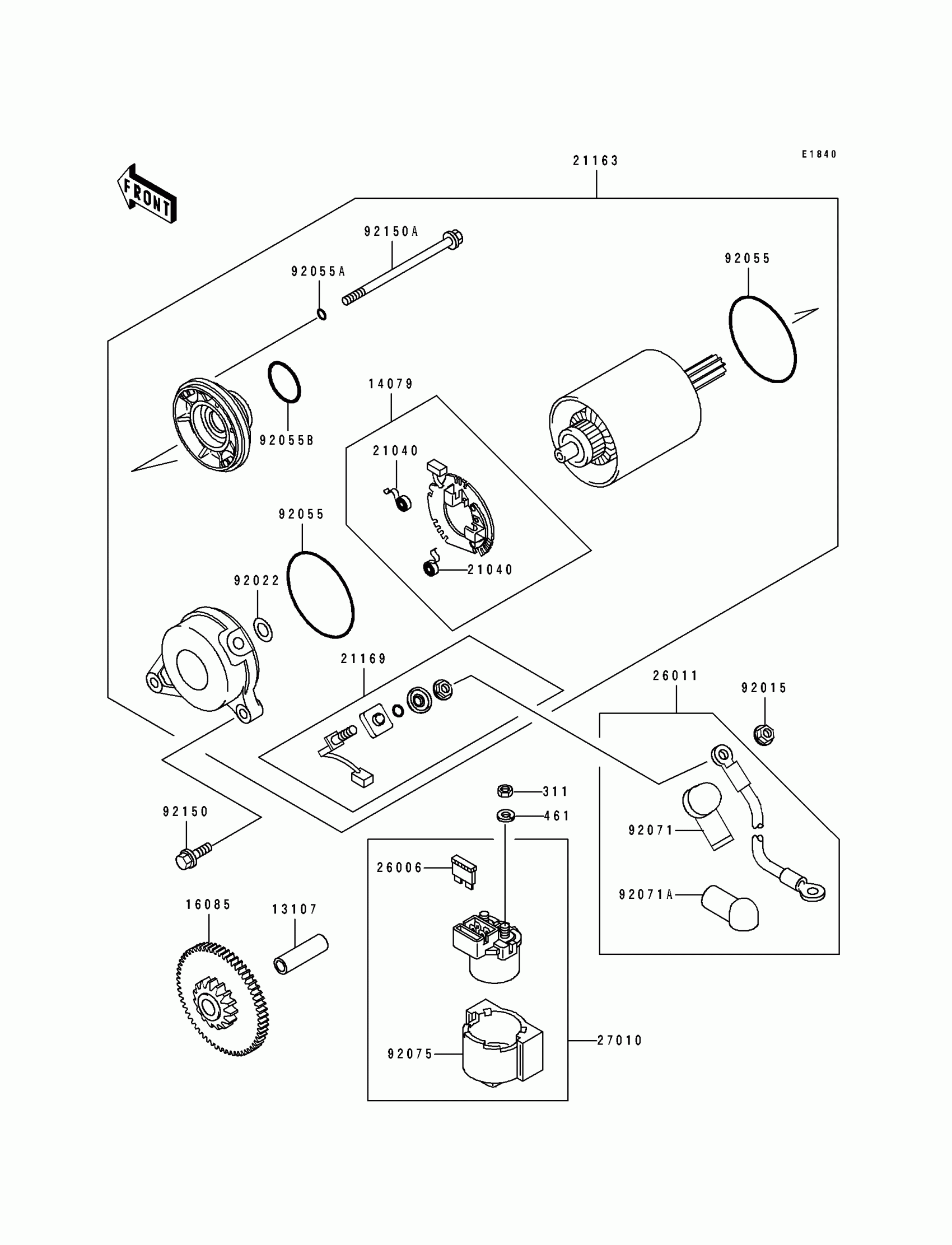

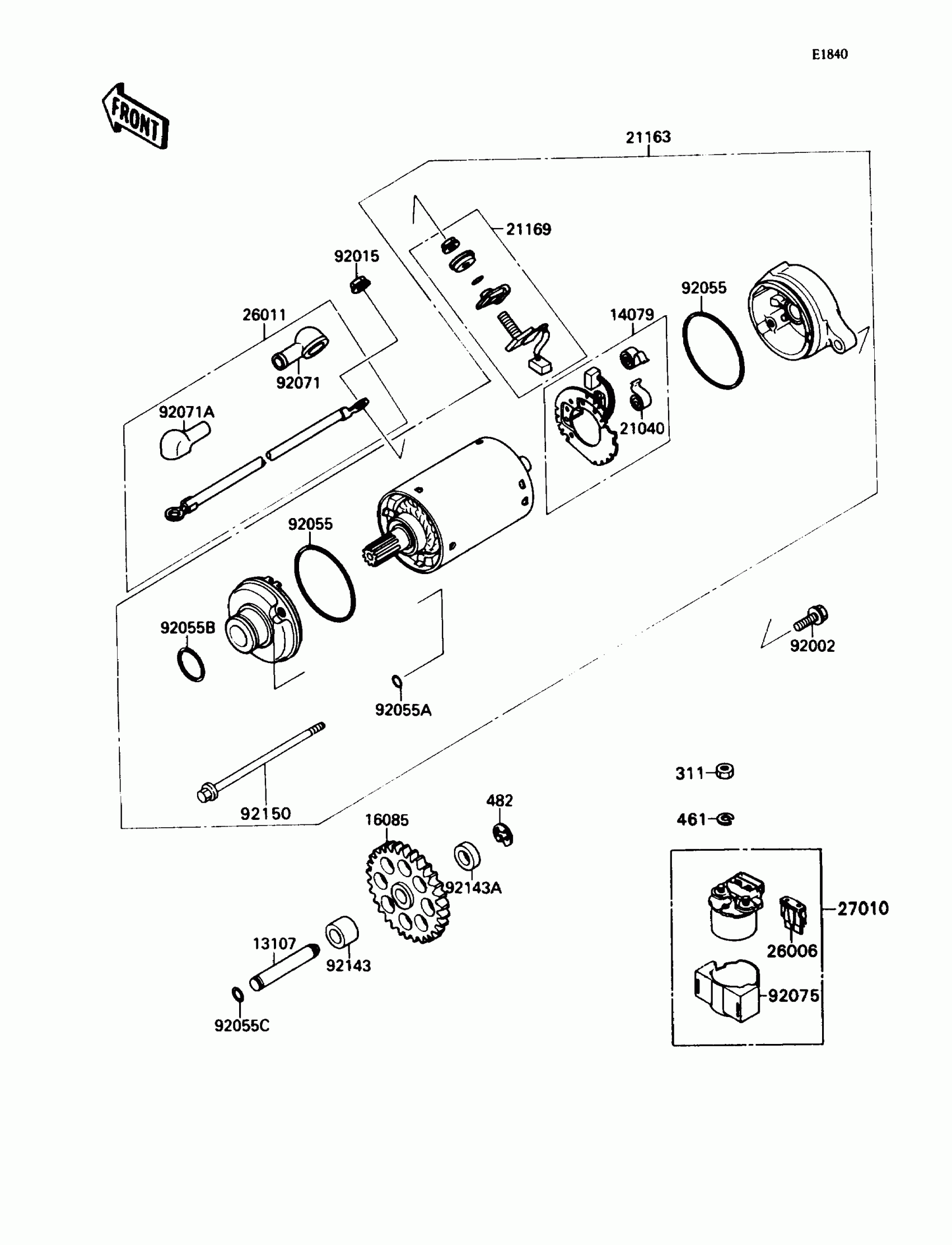

1989 Kawasaki Ninja® ZX™-7 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLE GEAR

13107-1187

1
Out of stock

14079

1

$44.97

In stock

16085

GEAR,IDLE

16085-1104

1

$138.23

In stock

21040

SPRING-BRUSH

21040-1051

1

$7.56

In stock

21163

STARTER-ELECTRIC

21163-1151

1

$626.14

In stock

21169

TERMINAL,STARTER

21169-1058

1

$60.22

In stock

26006

1

$4.39

In stock

26011

1

$58.29

In stock

27010

SWITCH,MAGNETIC

27010-1213

1
Out of stock

92002

BOLT,6X20

92001-1947

1

$3.46

In stock

92015

NUT

92015-1623

1

$4.59

In stock

92055

RING-O,62MM

92055-1260

1
Out of stock

92055A

RING-O,4.5MM

92055-1261

1

$2.29

In stock

92055B

RING-O,24.4X3.1

92055-1262

1

$11.90

In stock

92055C

RING-O,ID=9.5

92055-1386

1

$3.12

In stock

92071

GROMMET,STARTER TERMINAL

92071-1120

1
Out of stock

92071A

GROMMET,TERMINAL

92071-1121

1
Out of stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

92143

COLLAR,12.1X20X14.5

92143-1030

1

$6.32

In stock

92143A

COLLAR,12.1X20X6.5

92143-1031

1

$8.44

In stock

92150

BOLT

92150-1237

1

$7.46

In stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

482

CIRCLIP-TYPE-E,9MM

482K9000

1
Out of stock
