2003 Kawasaki Ninja® ZX™-6RR Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

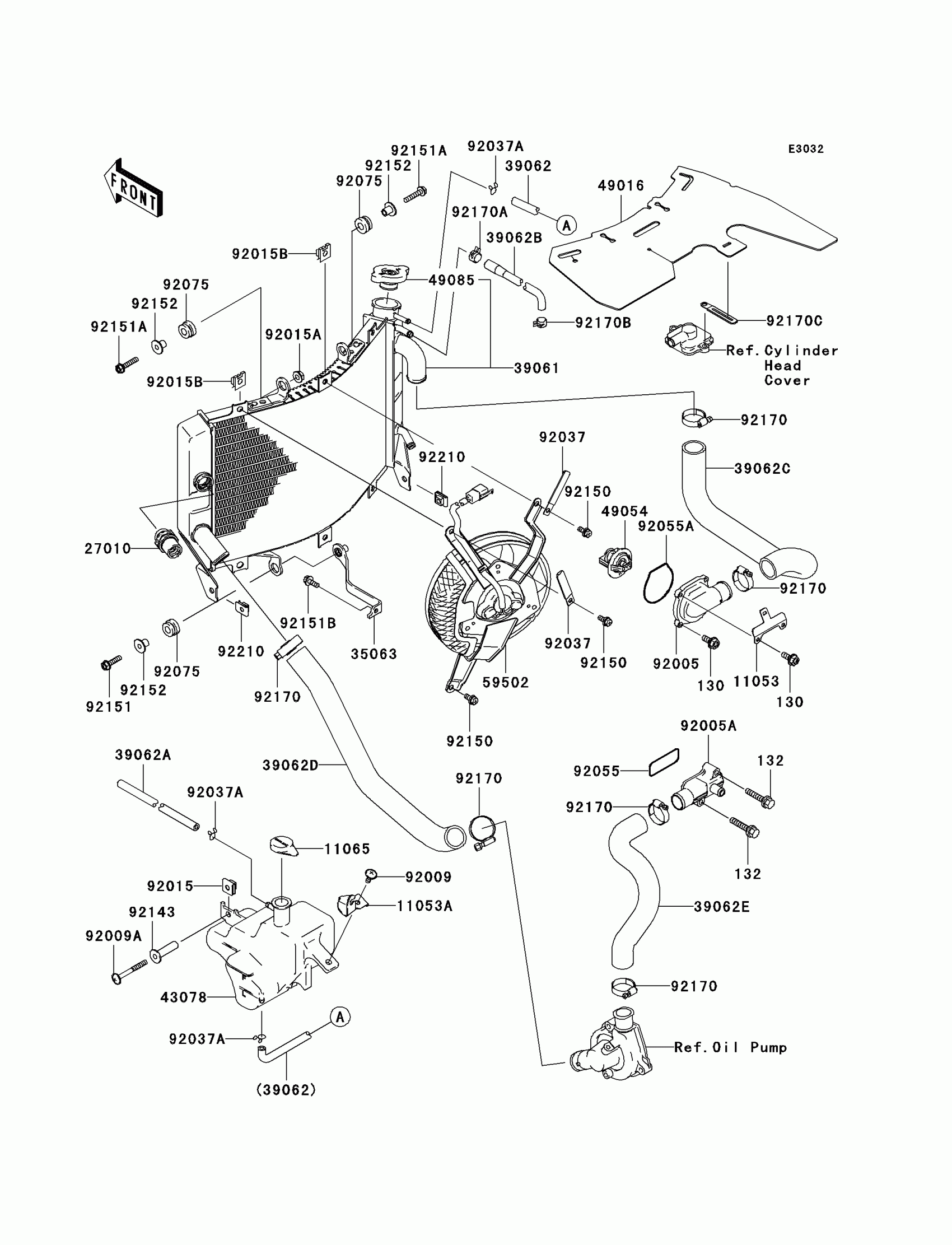

2003 Kawasaki Ninja® ZX™-6RR Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET

11053-0129

1

$2.46

In stock

11053A

BRACKET

11053-1231

1

$5.12

In stock

11065

CAP,COOLANT

11065-1093

1

$3.17

In stock

27010

SWITCH

27010-1443

1

$132.85

In stock

35063

STAY

35063-1267

1
Out of stock

39061

RADIATOR-ASSY

39061-0010

1

$1,191.07

In stock

39062

HOSE-COOLING,5.5X10.5X717

39062-0015

1
Out of stock

39062A

1

$38.54

In stock

39062B

HOSE-COOLING

39062-1742

1

$12.42

In stock

39062C

1

$68.86

In stock

39062D

HOSE-COOLING,RADIATOR-PUMP

39062-1932

1
Out of stock

39062E

HOSE-COOLING,PUMP-CYLINDER

39062-1933

1
Out of stock

43078

RESERVOIR

43078-1186

1

$71.36

In stock

49016

COVER-SEAL

49016-0002

1

$39.22

In stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

59502

FAN-ASSY

59502-0001

1

$857.57

In stock

92005

FITTING,THERMO CAP

92005-1275

1
Out of stock

92005A

FITTING,CYLINDER

92005-1343

1
Out of stock

92009

SCREW,6X16

92009-1817

1
Out of stock

92009A

SCREW,6X56

92009-1829

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92015A

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015B

NUT

92015-1487

1

$3.80

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O

92055-1402

1

$6.24

In stock

92055A

1

$7.20

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92143

COLLAR

92143-1428

1

$15.71

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92151

BOLT,FLANGED,6X25

92151-1225

1

$2.03

In stock

92151A

BOLT,FLANGED,M6X30

92151-1228

1

$2.34

In stock

92151B

BOLT,FLANGED,6X16

92151-1774

1
Out of stock

92152

COLLAR

92152-1074

1

$4.93

In stock

92170

CLAMP,COOLING HOSE

92170-1035

1
Out of stock

92170A

CLAMP

92170-1167

1

$5.42

In stock

92170B

CLAMP

92170-1493

1

$3.97

In stock

92170C

CLAMP

92170-1514

1

$3.43

In stock

92210

NUT

92210-0010

1
Out of stock

130

BOLT-FLANGED,5X14

130J0514

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock
