2003 Kawasaki Ninja® ZX™-6RR Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

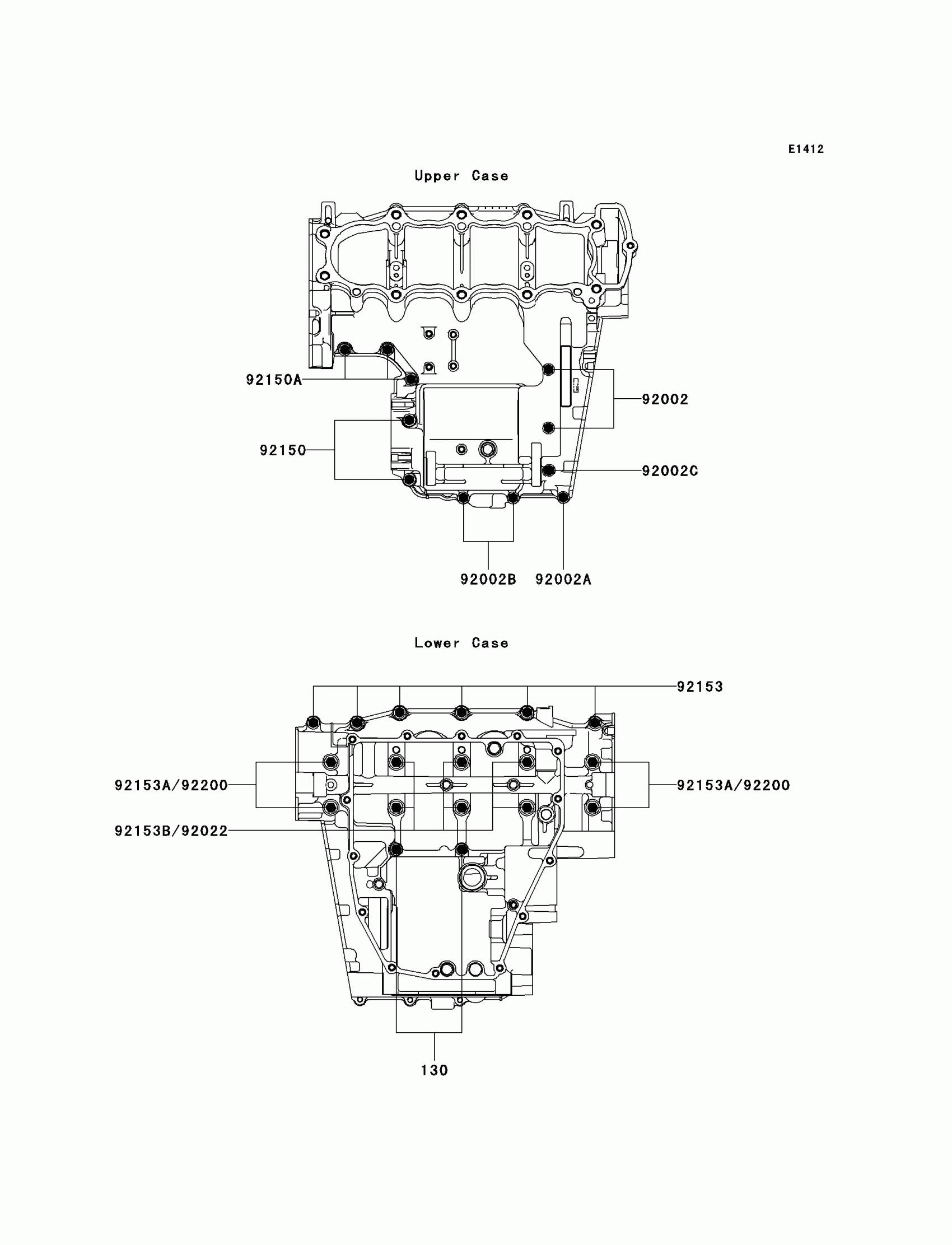

2003 Kawasaki Ninja® ZX™-6RR Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X75

130P0675

1
Out of stock

92002

BOLT,6X95

92002-1078

1

$4.92

In stock

92002A

BOLT,6X50

92002-1079

1

$5.17

In stock

92002B

BOLT,6X65

92002-1140

1

$4.31

In stock

92002C

BOLT,6X85

92002-1306

1

$5.10

In stock

92022

WASHER

92022-2144

1
Out of stock

92150

BOLT,7X70

92150-1250

1
Out of stock

92150A

BOLT,6X35

92150-1862

1

$4.75

In stock

92153

BOLT,7X38

92153-1109

1
Out of stock

92153A

BOLT,7X94

92153-1233

1
Out of stock

92153B

BOLT,7X71

92153-1234

1
Out of stock

92200

WASHER,7.2X17X2.0

92200-1244

1
Out of stock
