2003 Kawasaki Ninja® ZX™-6RR Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

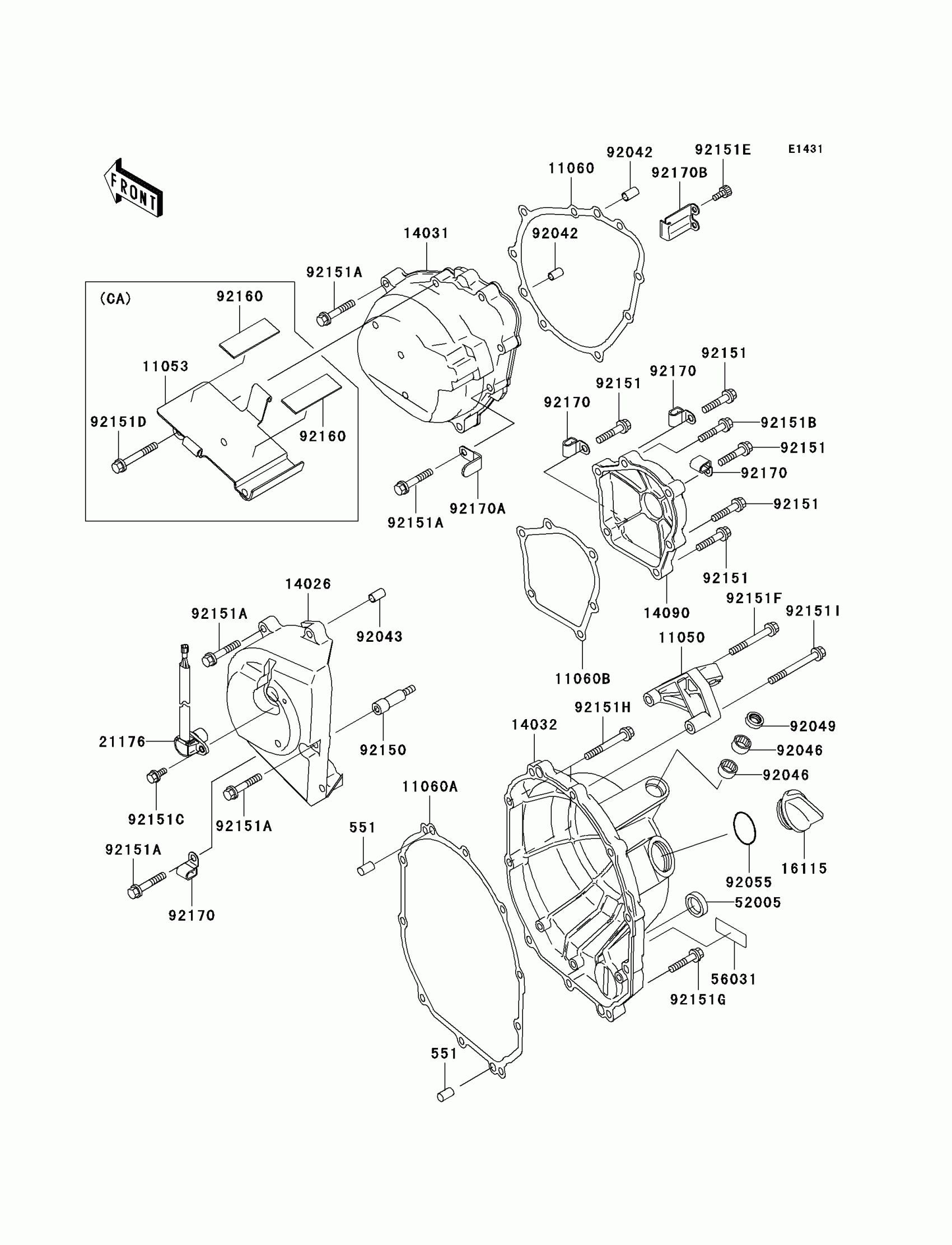

2003 Kawasaki Ninja® ZX™-6RR Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,8X14

551A0814

1
Out of stock

11050

BRACKET,CLUTCH CABLE

11050-1864

1
Out of stock

11060

GASKET,GENERATOR COVER

11060-1851

1
Out of stock

11060A

GASKET,CLUTCH COVER

11060-1853

1
Out of stock

11060B

GASKET,PULSING COVER

11060-1867

1
Out of stock

14026

COVER-CHAIN

14026-1292

1
Out of stock

14031

COVER-GENERATOR

14031-1402

1
Out of stock

14032

COVER-CLUTCH

14032-1540

1
Out of stock

14090

COVER,PULSING

14090-1916

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

21176

SENSOR,SPEED

21176-1076

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1057

1
Out of stock

56031

LABEL-MANUAL,OIL CAPACITY

56031-1895

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92150

BOLT

92150-1889

1
Out of stock

92151

BOLT,6X30

92151-1134

1
Out of stock

92151B

BOLT,6X30

92151-1201

1
Out of stock

92151C

BOLT,FLANGED,5X12

92151-1305

1
Out of stock

92151E

BOLT,SOCKET,5X12

92151-1365

1
Out of stock

92151F

BOLT,6X50

92151-1545

1
Out of stock

92151G

BOLT,6X30

92151-1547

1
Out of stock

92151H

BOLT,6X50

92151-1790

1
Out of stock

92151I

BOLT,6X60

92151-1791

1
Out of stock

92170

CLAMP

92170-1577

1
Out of stock

92170A

CLAMP

92170-1680

1
Out of stock

92170B

CLAMP

92170-1843

1
Out of stock

11053

BRACKET

11053-1201

1
Out of stock

92151A

BOLT,6X35

92151-1135

1
Out of stock

92151A

BOLT,6X35

92151-1135

1
Out of stock

92151D

BOLT,6X45

92151-1336

1
Out of stock

92160

DAMPER

92160-1075

1
Out of stock
