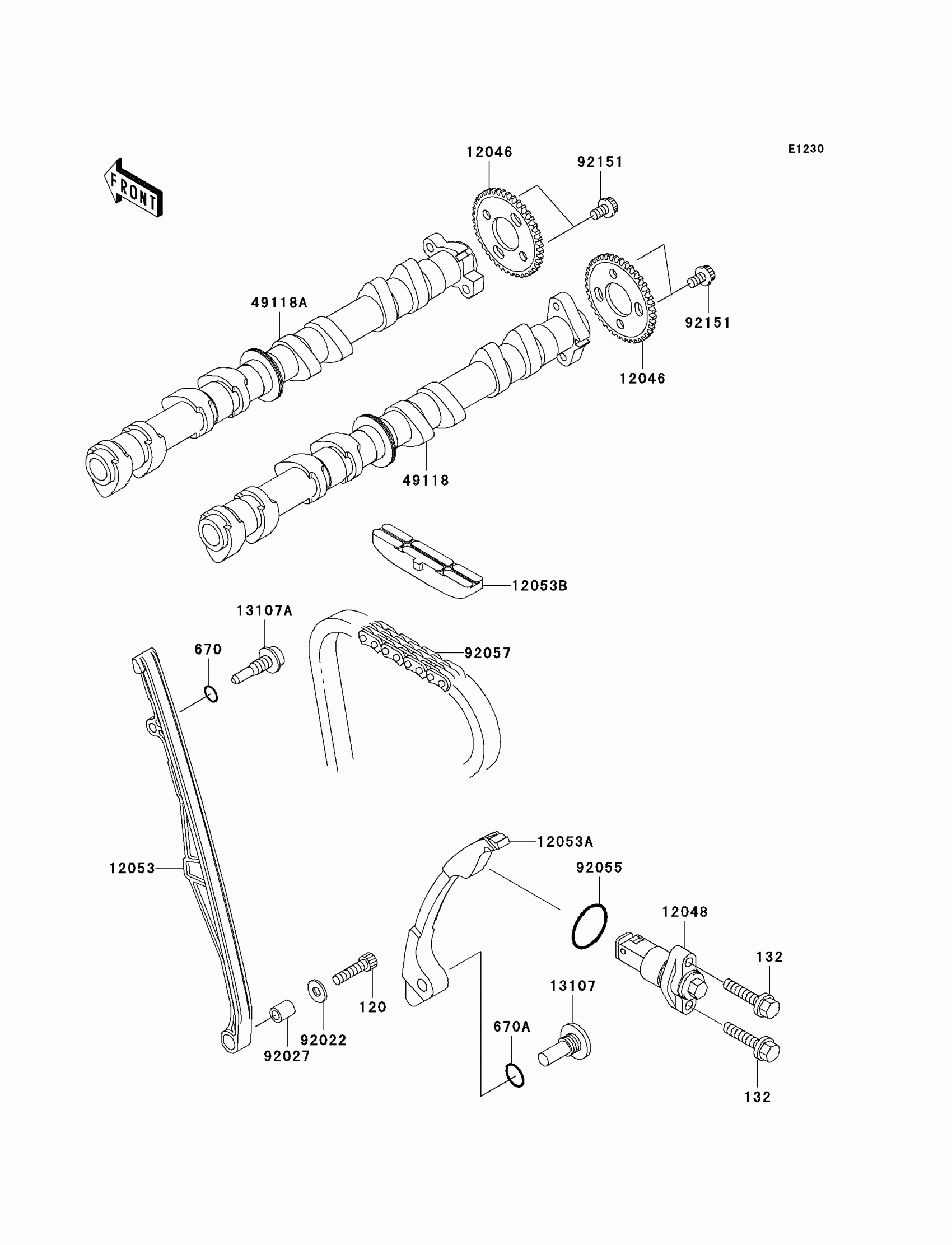

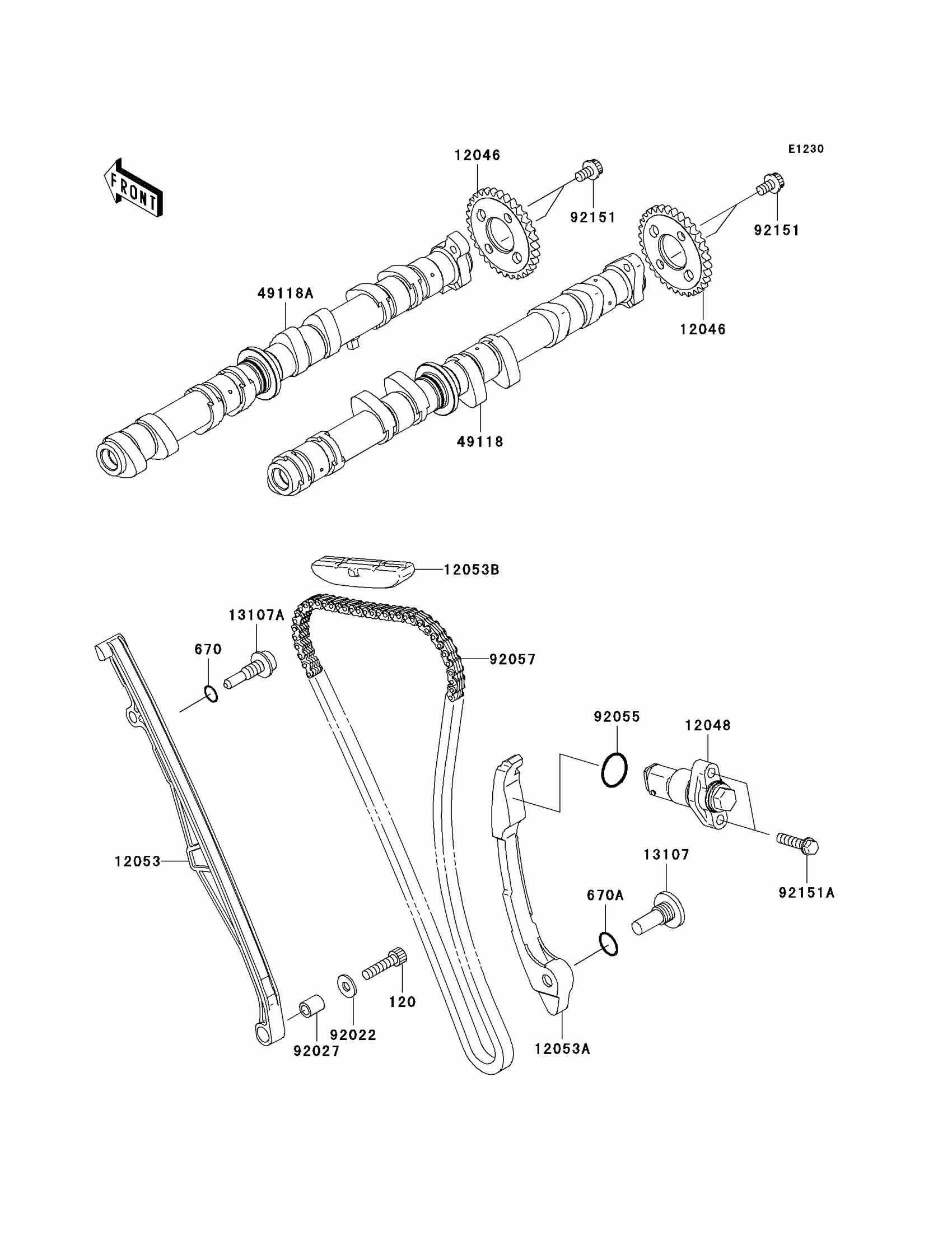

Kawasaki Ninja® ZX™-6RR Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X25

120P0625

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

670

O RING,9MM

670D1509

$3.57

670A

O RING,14MM

670D2014

$4.18

12046

SPROCKET,CAM

12046-0016

$82.63

12048

TENSIONER-ASSY

12048-1181

$116.81

12053

GUIDE-CHAIN,FR

12053-1475

$52.87

12053A

GUIDE-CHAIN,RR

12053-1476

$57.31

12053B

GUIDE-CHAIN,UPP

12053-1477

Unavailable

13107

SHAFT

13107-1226

$25.64

13107A

SHAFT,CHAIN GUIDE,FR

13107-1416

Unavailable

49118

CAMSHAFT-COMP,INTAKE

49118-0003

$632.92

49118A

CAMSHAFT-COMP,EXHAUST

49118-1227

$650.45

92022

WASHER,6.2X15X1.2

92022-2373

$0.46

92027

COLLAR,6.3X10X12

92027-1143

$16.03

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM

92057-1531

$100.18

92151

BOLT,SOCKET,6X10

92151-1829

$1.98
