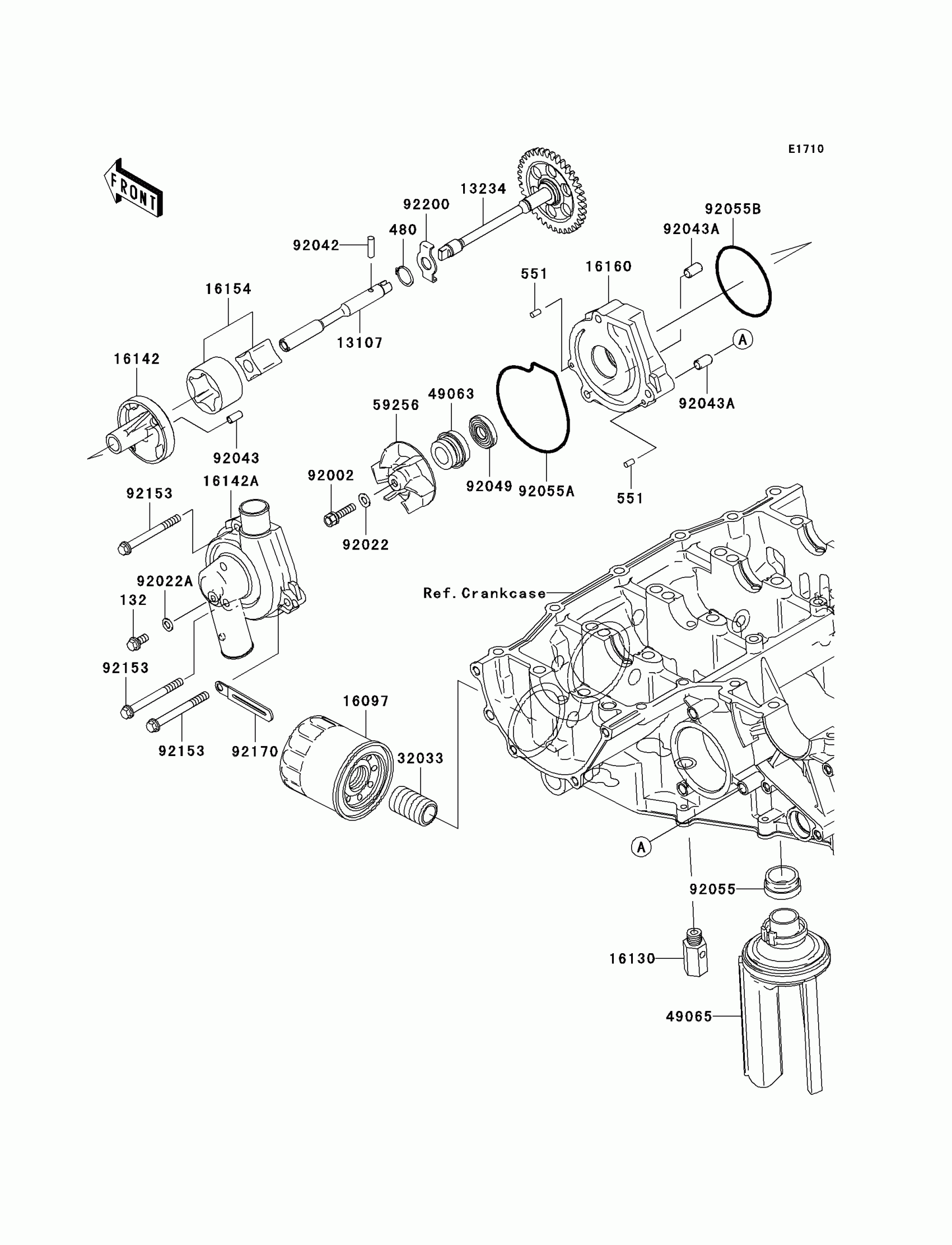

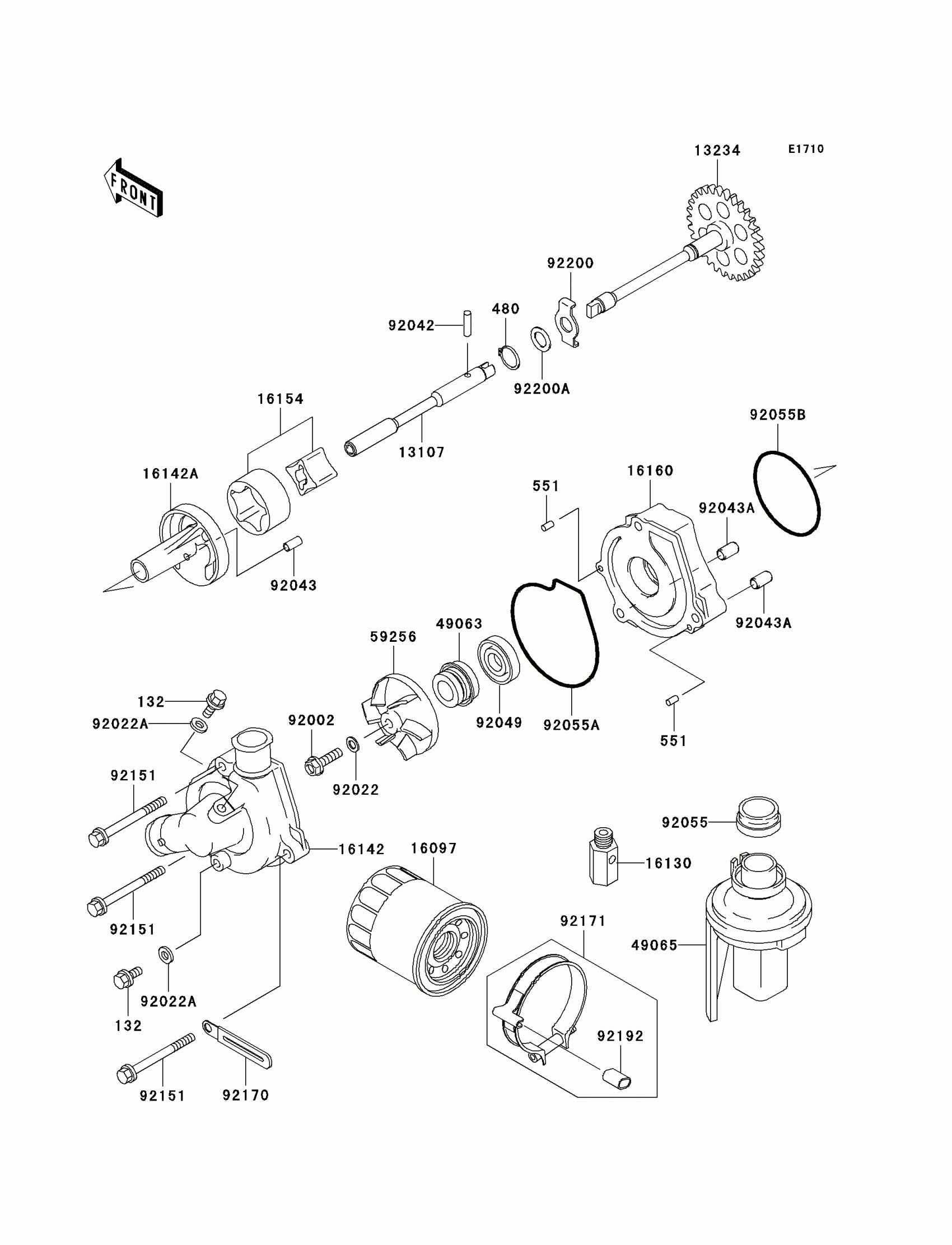

Kawasaki Ninja® ZX™-6RR Oil Pump/Oil Filter Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

551

PIN-DOWEL,4X8

551A0408

$0.68

13107

SHAFT

13107-1430

$61.58

13234

SHAFT-COMP

13234-0003

$108.06

16097

FILTER-ASSY-OIL

16097-0002

$11.00

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP,WATER

16142-1152

$189.05

16142A

COVER-PUMP,OIL

16142-1161

$80.63

16154

ROTOR-PUMP,40.56X22

16154-1115

$62.78

16160

BODY,OIL PUMP

16160-1325

$139.30

49063

SEAL-MECHANICAL

49063-1055

$16.33

49065

FILTER-OIL

49065-1073

$34.09

59256

IMPELLER

59256-1073

$36.81

92002

BOLT,6X22

92002-1154

$3.57

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,6.2X11X1

92022-304

$2.76

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92043

PIN,4.2X6X12

92043-1262

$3.29

92043A

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

Unavailable

92055

RING-O,OIL FILTER

92055-1503

$7.25

92055A

RING-O,WATER PUMP COVER

92055-1532

$11.84

92055B

RING-O,59.6X2.4

92055-3018

$4.67

92151

BOLT,6X60

92151-1307

$3.56

92170

CLAMP

92170-1514

$3.29

92171

CLAMP

92171-0170

$15.54

92192

TUBE,CLAMP

92192-0047

$3.64

92200

WASHER,11.3X21X1.6

92200-0041

Unavailable

92200A

WASHER

92200-1009

$4.47
