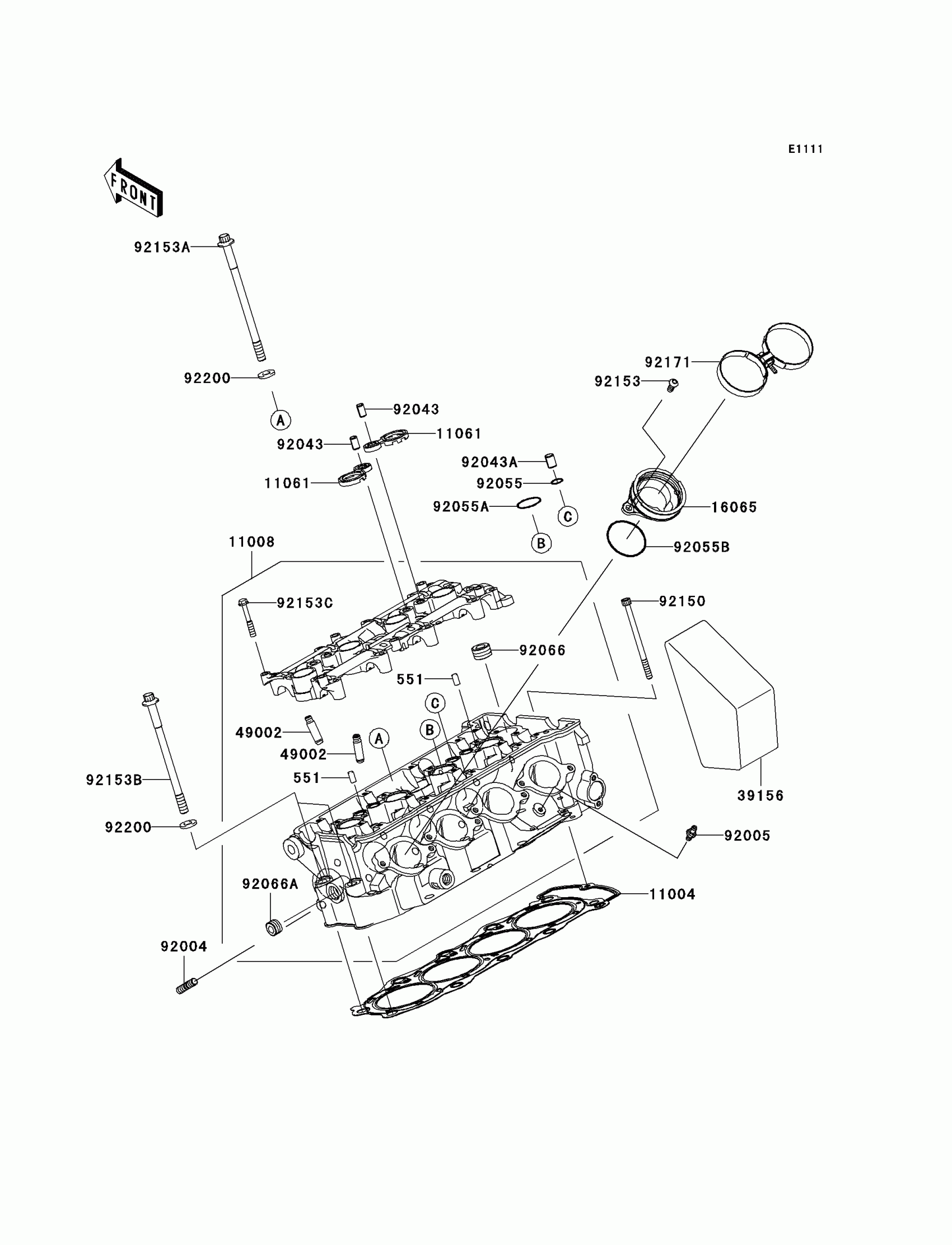

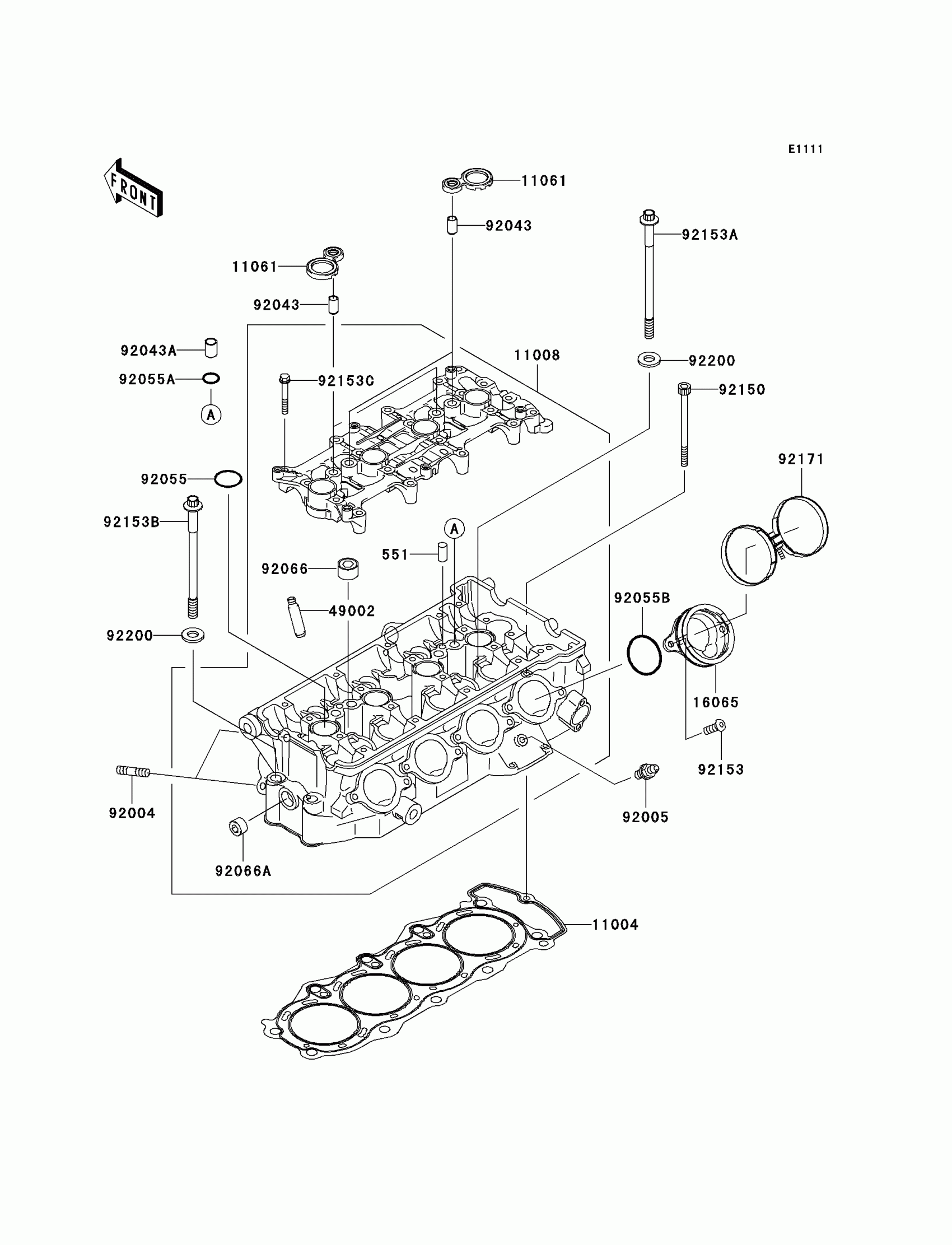

Kawasaki Ninja® ZX™-6RR Cylinder Head Diagram

Description

Price

551

PIN-DOWEL,6X12

551A0612

$0.78

11004

GASKET-HEAD

11004-1383

$99.71

11008

HEAD-COMP-CYLINDER

11008-1439

$2,863.05

11061

GASKET,BEARING CAP

11061-0042

$8.80

16065

HOLDER-CARBURETOR

16065-1386

Unavailable

49002

GUIDE-VALVE

49002-1152

Unavailable

92004

STUD,8X22

92004-1249

$2.95

92005

FITTING

92005-1273

$21.68

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,8.2X10X14

92043-1264

$0.51

92055

RING-O,25.5X2

92055-1403

$3.14

92055A

RING-O,11.5X1.5

92055-1469

$2.25

92055B

RING-O,42X1.9

92055-1536

$1.96

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92066A

PLUG,PT3/8X10

92066-1420

$7.68

92150

BOLT,SOCKET,6X92

92150-1928

$10.15

92153

BOLT,TORX,6X14

92153-0406

$1.98

92153A

BOLT,9X146

92153-1250

$19.69

92153B

BOLT,9X138

92153-1251

$18.76

92153C

BOLT,6X40

92153-1258

$3.24

92171

CLAMP,CARBURETOR HOLDER

92171-0123

Unavailable

92200

WASHER,9.2X19X2.3

92200-1673

$2.28
