2003 Kawasaki Ninja® ZX™-6RR Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

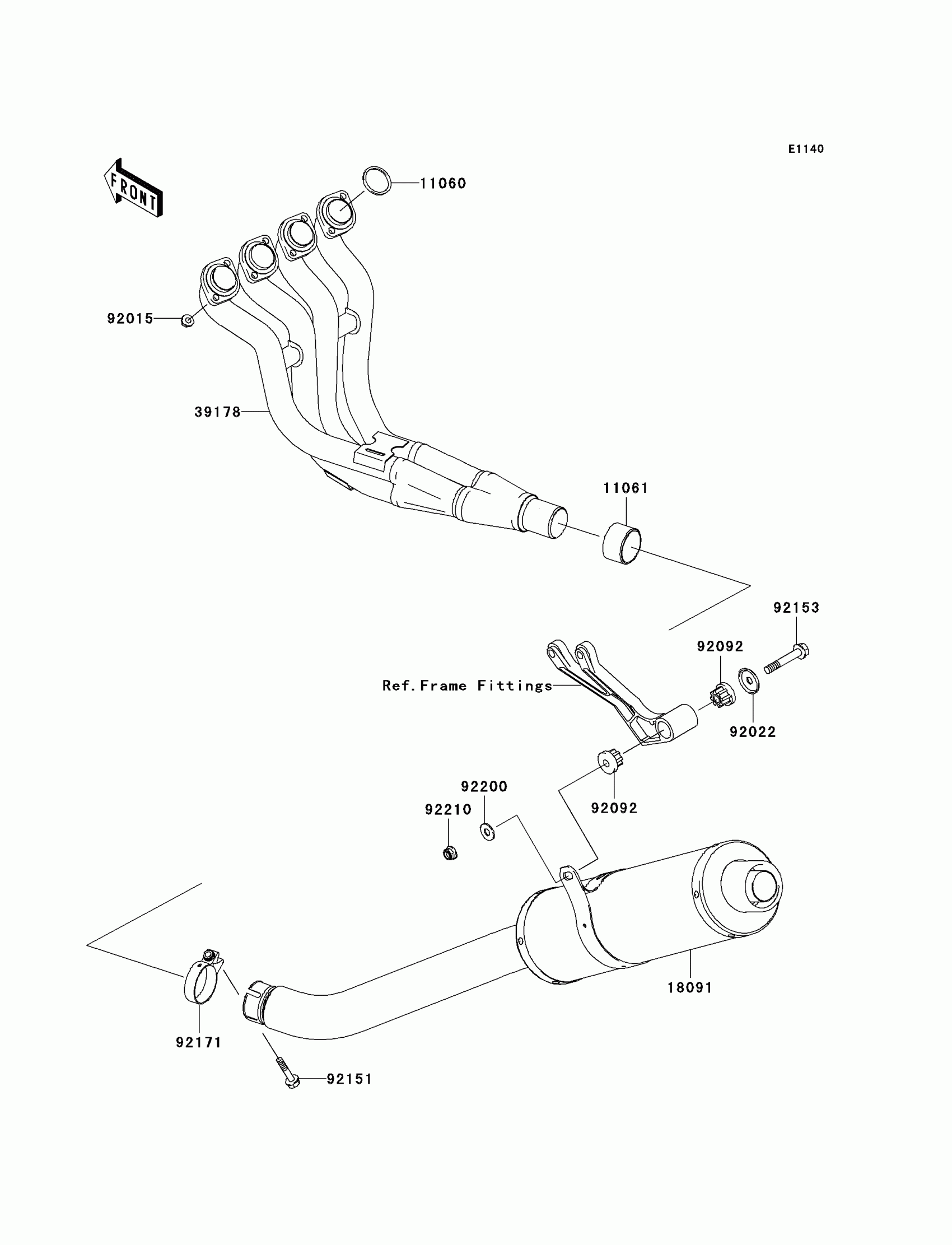

2003 Kawasaki Ninja® ZX™-6RR Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,EXHAUST PIPE

11060-1203

1
Out of stock

11061

GASKET,MUFFLER CONNECTING

11061-0023

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-0119

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0011

1
Out of stock

92015

NUT,8MM

92015-1402

1
Out of stock

92022

WASHER

92022-289

1
Out of stock

92092

BUSHING-RUBBER,MUFFLER

92092-1087

1
Out of stock

92151

BOLT,FLANGED,8X40

92151-1532

1
Out of stock

92153

BOLT,10X62

92153-0526

1
Out of stock

92171

CLAMP

92171-0040

1
Out of stock

92200

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
