2003 Kawasaki Ninja® ZX™-6RR Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

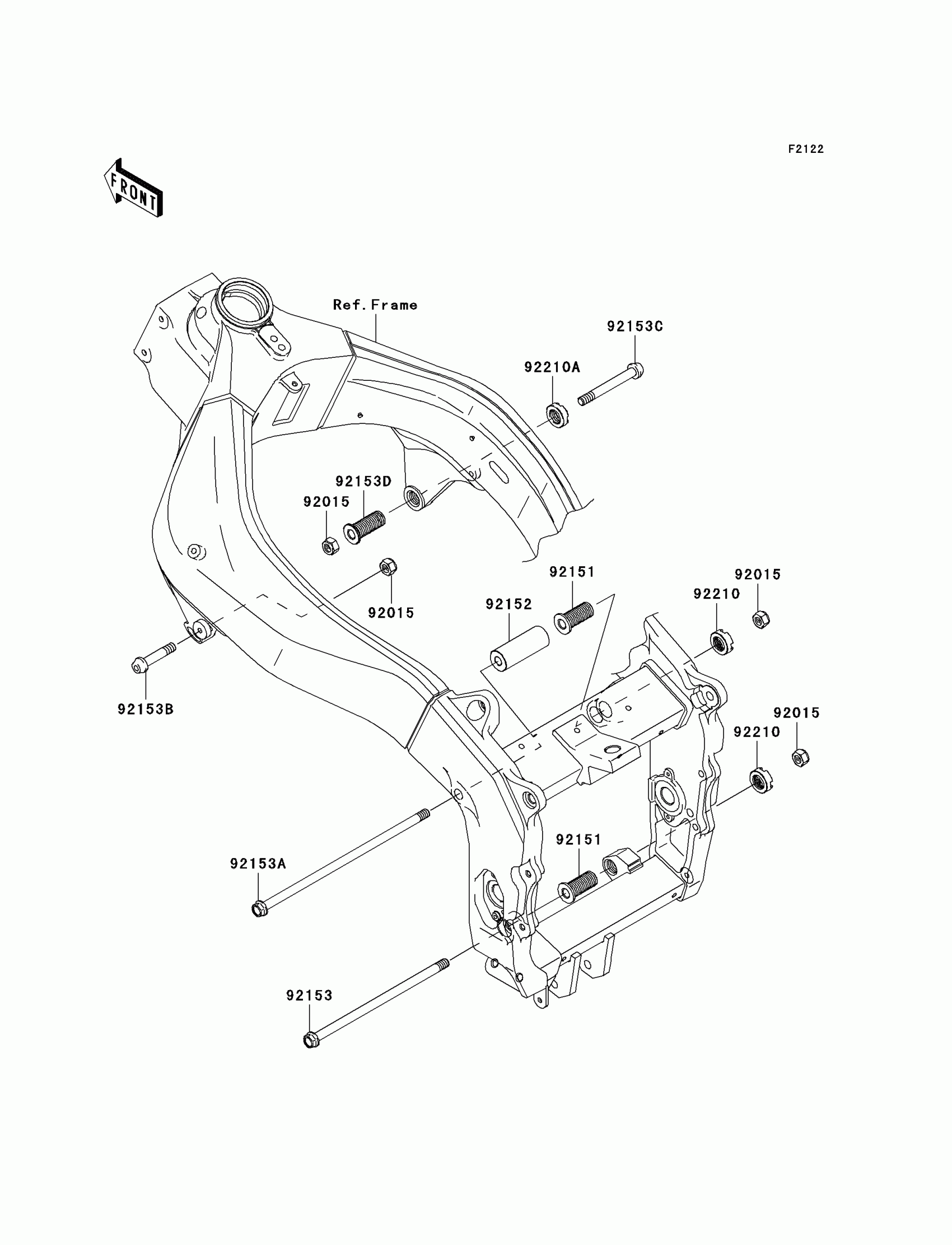

2003 Kawasaki Ninja® ZX™-6RR Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92151

1

$23.81

In stock

92152

COLLAR,10.5X26X70

92152-1062

1

$37.15

In stock

92153

BOLT,FLANGED,10X215

92153-0444

1
Out of stock

92153A

BOLT,FLANGED,10X267

92153-1183

1
Out of stock

92153B

BOLT,SOCKET,10X50

92153-1229

1
Out of stock

92153C

BOLT,SOCKET,10X85

92153-1230

1
Out of stock

92153D

BOLT,ENGINE MOUNT,18MM

92153-1231

1
Out of stock

92210

NUT,18MM

92210-1203

1
Out of stock

92210A

NUT,CASTLE,18MM

92210-1390

1
Out of stock
