1995 Kawasaki Ninja® ZX™-6 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1995 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

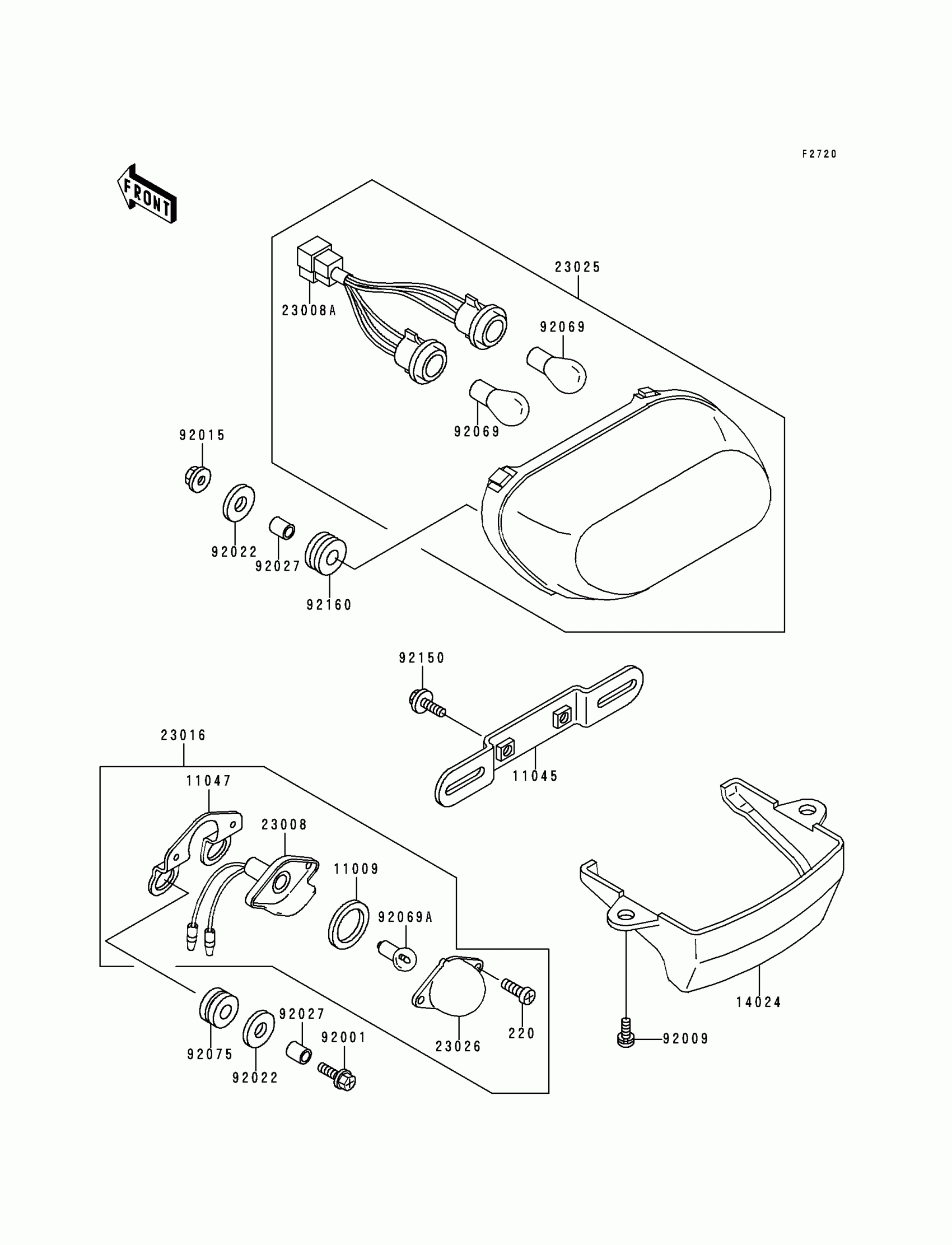

1995 Kawasaki Ninja® ZX™-6 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

11009

GASKET,LICENSE PLATE LAMP

11009-1372

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1
Out of stock

11047

BRACKET,LICENSE PLATE LAMP

11047-1889

1
Out of stock

14024

COVER,LICENSE LAMP

14024-1386

1
Out of stock

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

1
Out of stock

23008A

SOCKET-ASSY,TAIL LAMP

23008-1364

1
Out of stock

23016

LAMP-ASSY,LICENSE PLATE

23016-1126

1
Out of stock

23025

LAMP-TAIL

23025-1233

1
Out of stock

23026

LENS,LAMP

23026-1054

1
Out of stock

92001

BOLT,6X25

92001-1524

1
Out of stock

92009

SCREW,5X12,BLACK

92009-1182

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1
Out of stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92150

BOLT,6X16

92150-1909

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock
