1995 Kawasaki Ninja® ZX™-6 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1995 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

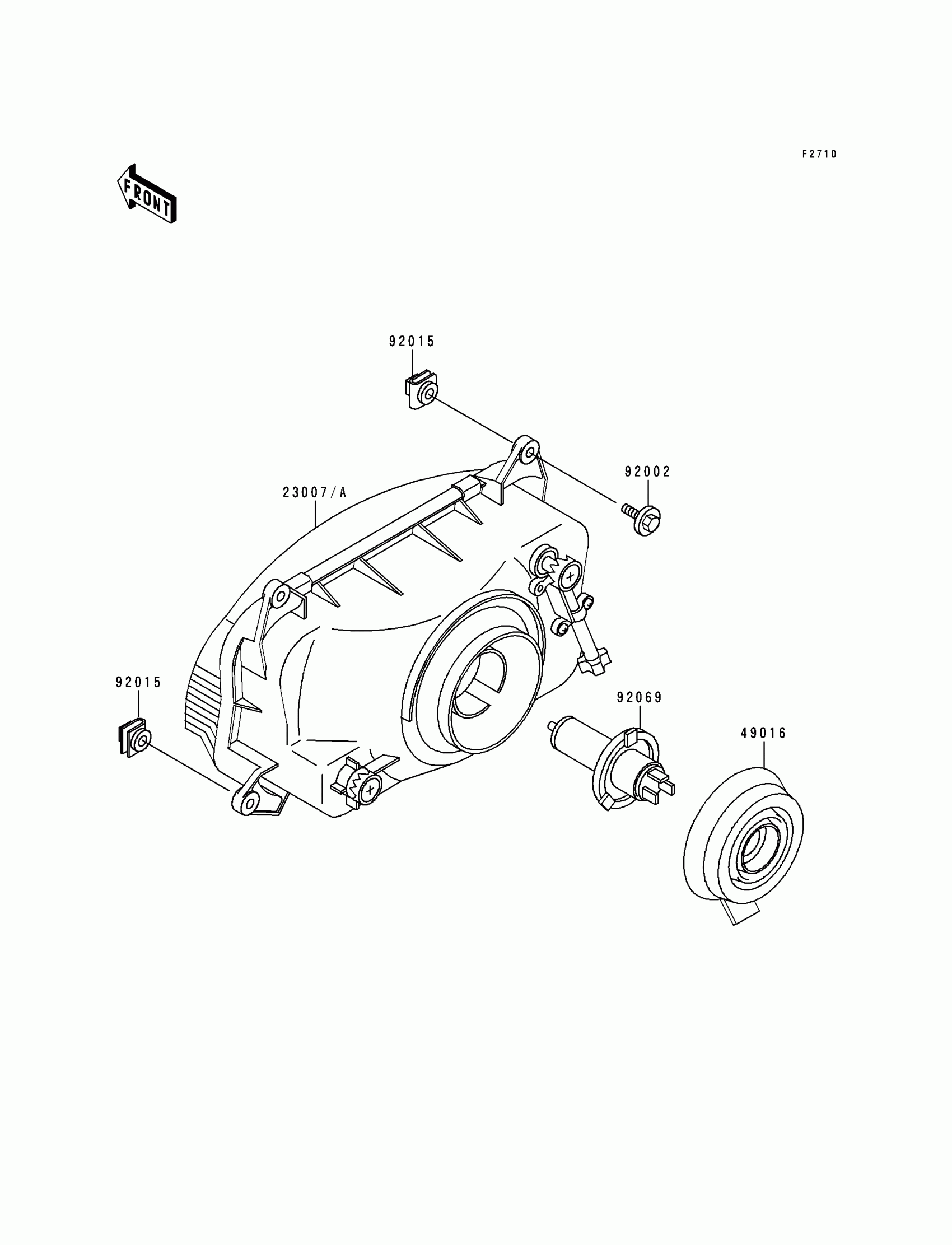

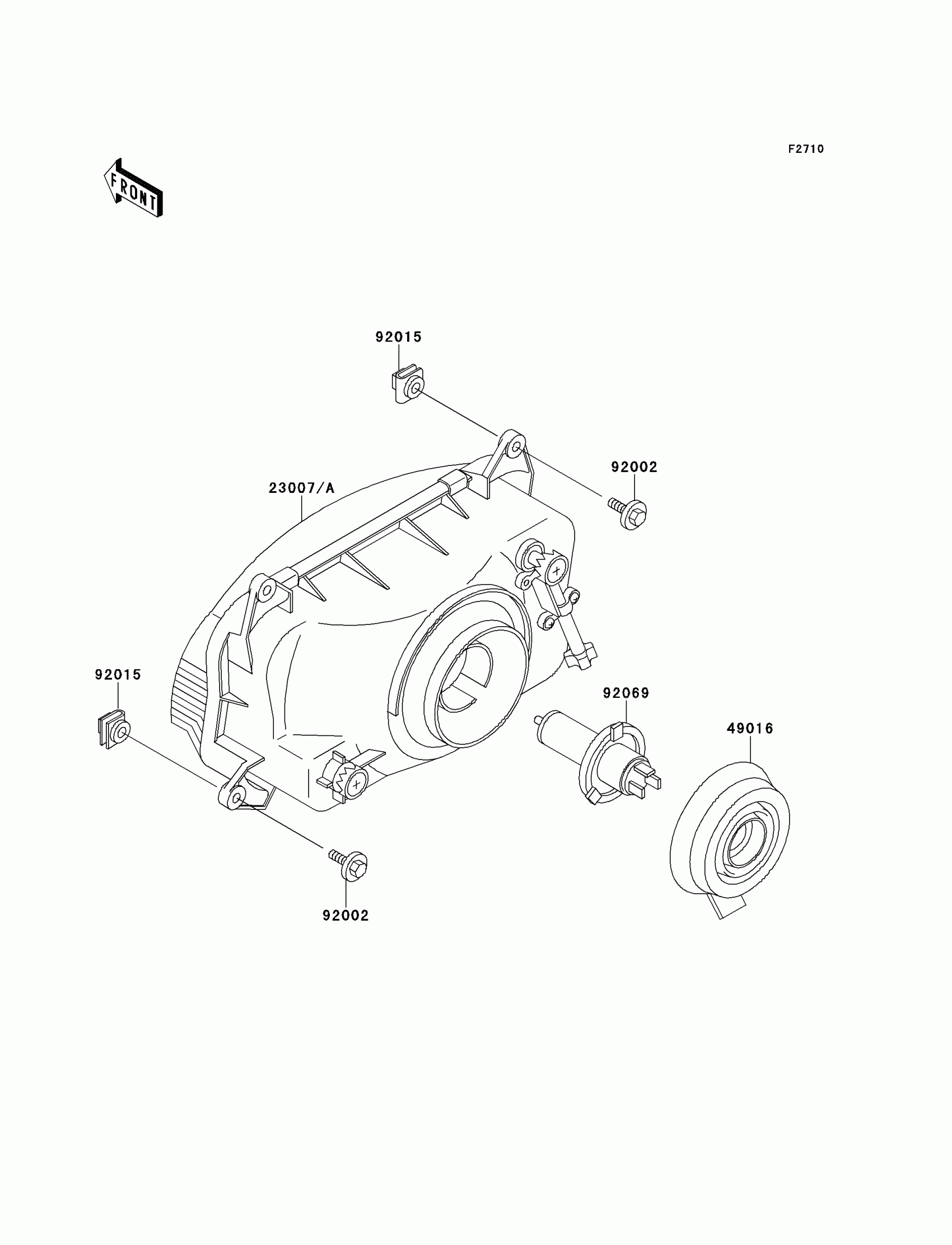

1995 Kawasaki Ninja® ZX™-6 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007A

LENS-COMP,HEAD LAMP

23007-1311

1
Out of stock

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1137

1
Out of stock

92002

BOLT,UPSET-WP,6X22

92002-1262

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock
