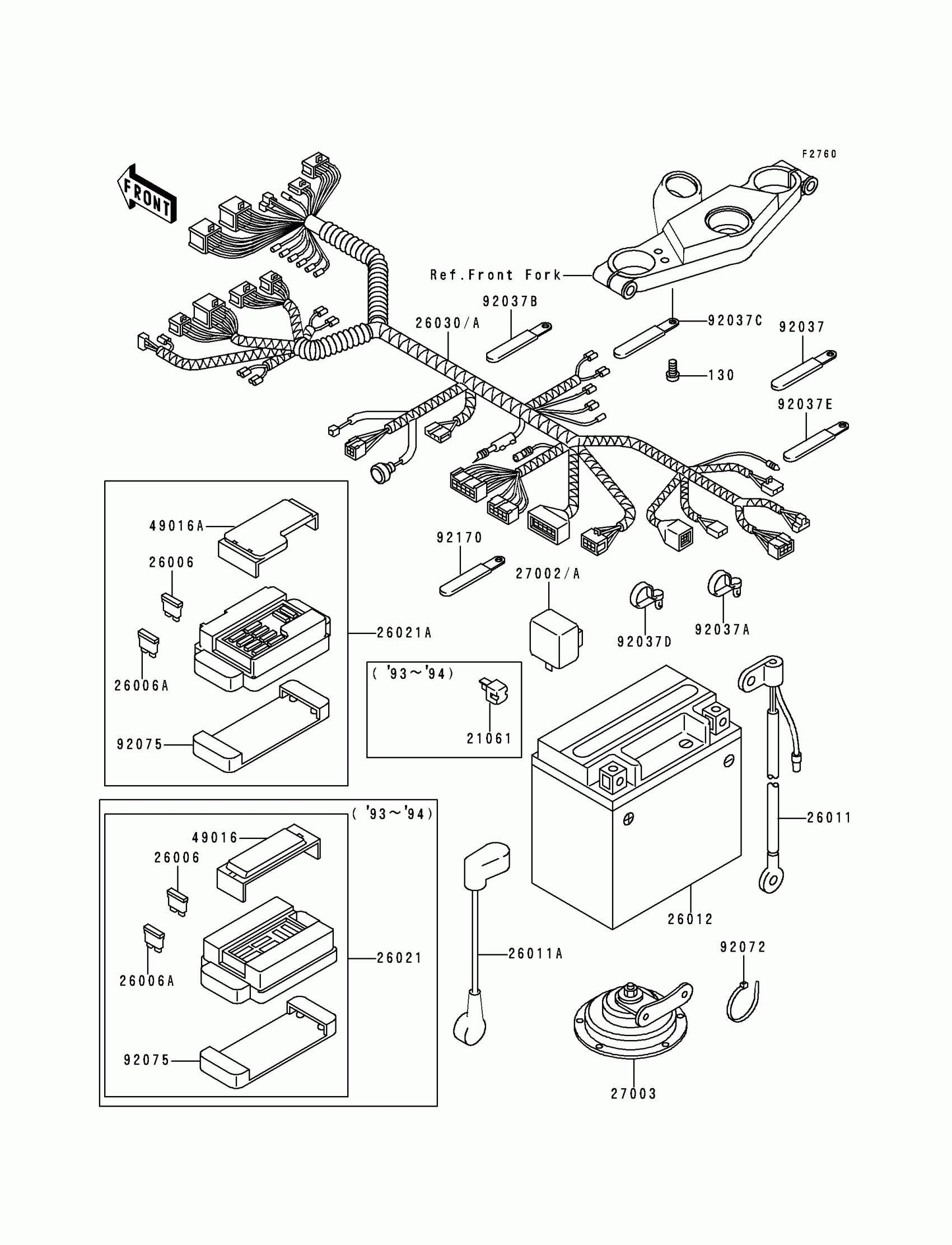

Kawasaki Ninja® ZX™-6 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(-)

26011-1429

$31.43

26011A

WIRE-LEAD,BATTERY(+)

26011-1540

$38.93

26012

BATTERY,YTX12-BS,12V 10AH

26012-1281

$121.05

26021A

JUNCTION BOX

26021-1089

Unavailable

26030A

HARNESS,MAIN

26030-1317

$327.70

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1092

$73.74

27003

HORN

27003-1316

$85.46

49016A

COVER-SEAL,FUSE

49016-1177

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$4.93

92037C

CLAMP,L=45

92037-1539

$4.42

92037D

CLAMP

92037-1877

$5.71

92037E

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

92170

CLAMP,L=150

92170-1114

$7.36
