1990 Kawasaki Ninja® ZX™-6 Starter Motor Diagram

← All diagrams

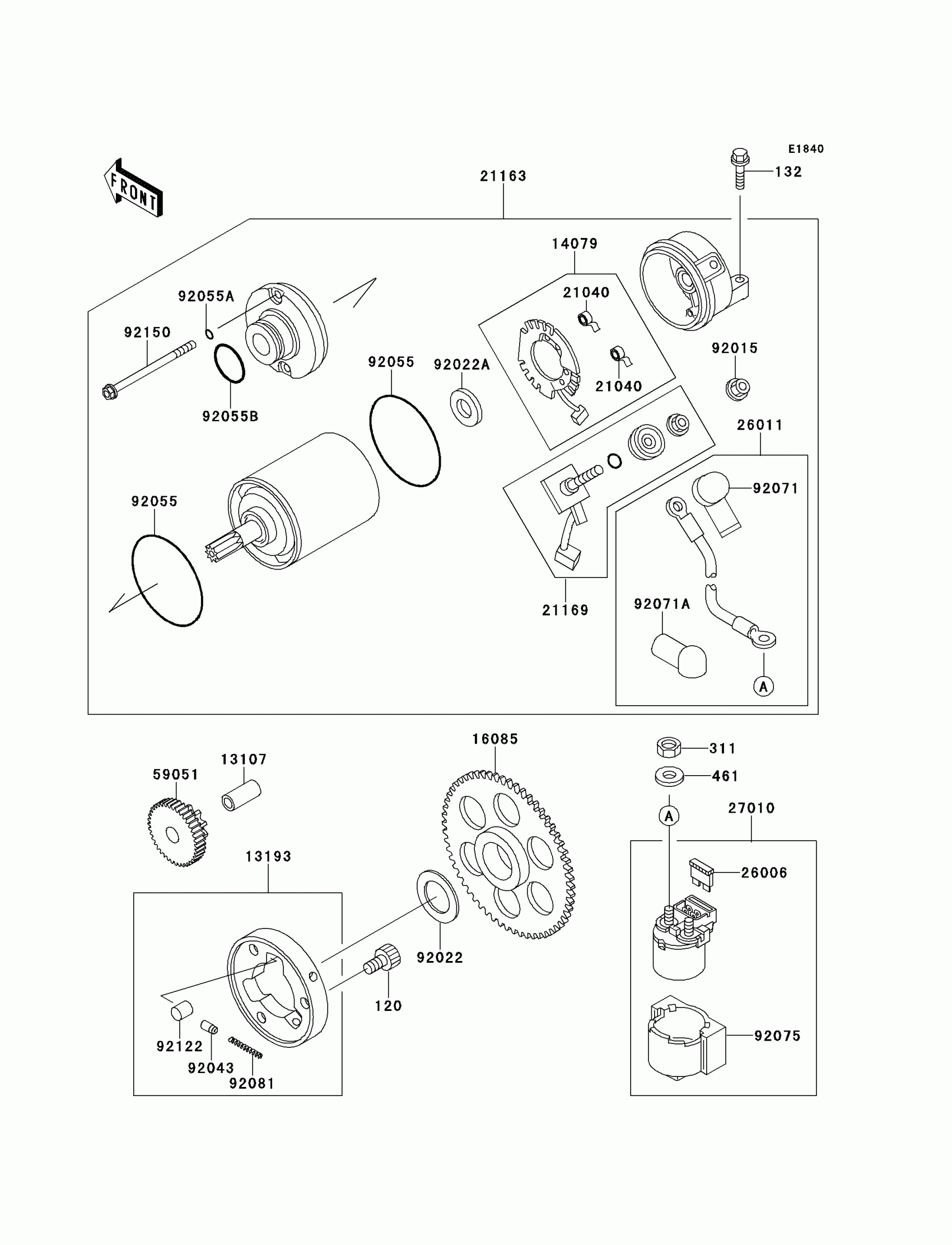

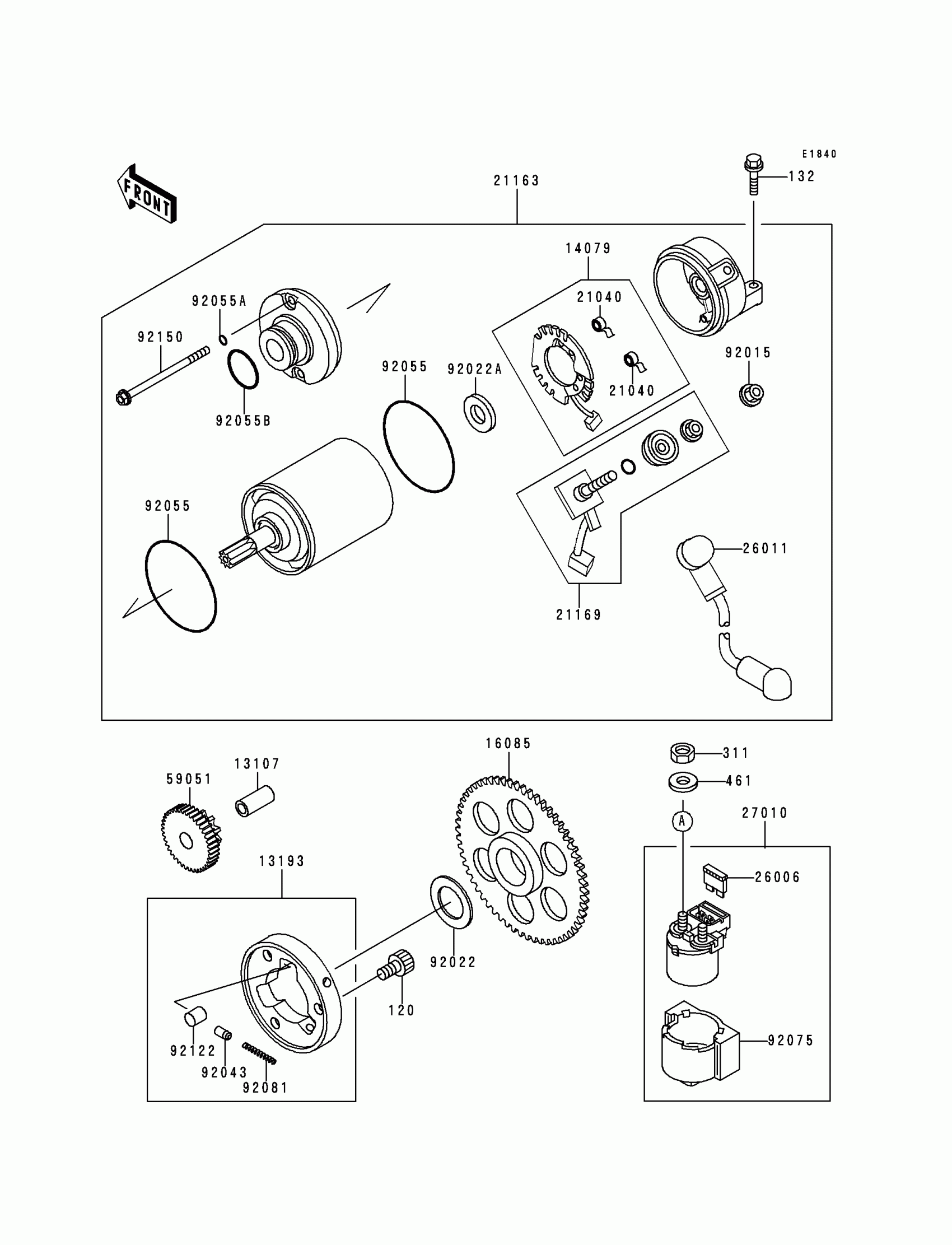

Find the part on the Starter Motor diagram for your 1990 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Kawasaki Ninja® ZX™-6 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X14

120P0814

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

13107

SHAFT,7.8X12X26.5

13107-1176

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1002

1
Out of stock

14079

HOLDER-ASSY,CARBON BRUSH

14079-1056

1
Out of stock

16085

GEAR,ONEWAY CLUTCH

16085-1224

1
Out of stock

21040

SPRING-BRUSH

21040-1051

1
Out of stock

21163

STARTER-ELECTRIC

21163-1154

1
Out of stock

21169

TERMINAL,STARTER

21169-1058

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1473

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1213

1
Out of stock

59051

GEAR-SPUR,IDLE

59051-1232

1
Out of stock

92015

NUT

92015-1623

1
Out of stock

92022

WASHER,25.5X38X1

92022-145

1
Out of stock

92022A

WASHER

92022-2200

1
Out of stock

92043

PIN

92043-132

1
Out of stock

92055

RING-O,62MM

92055-1260

1
Out of stock

92055A

RING-O,4.5MM

92055-1261

1
Out of stock

92055B

RING-O,24.4X3.1

92055-1262

1
Out of stock

92071

GROMMET,STARTER TERMINAL

92071-1120

1
Out of stock

92071A

GROMMET,TERMINAL

92071-1121

1
Out of stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

92081

SPRING,COIL

92081-159

1
Out of stock

92122

ROLLER

92122-006

1
Out of stock

92150

BOLT

92150-1237

1
Out of stock
