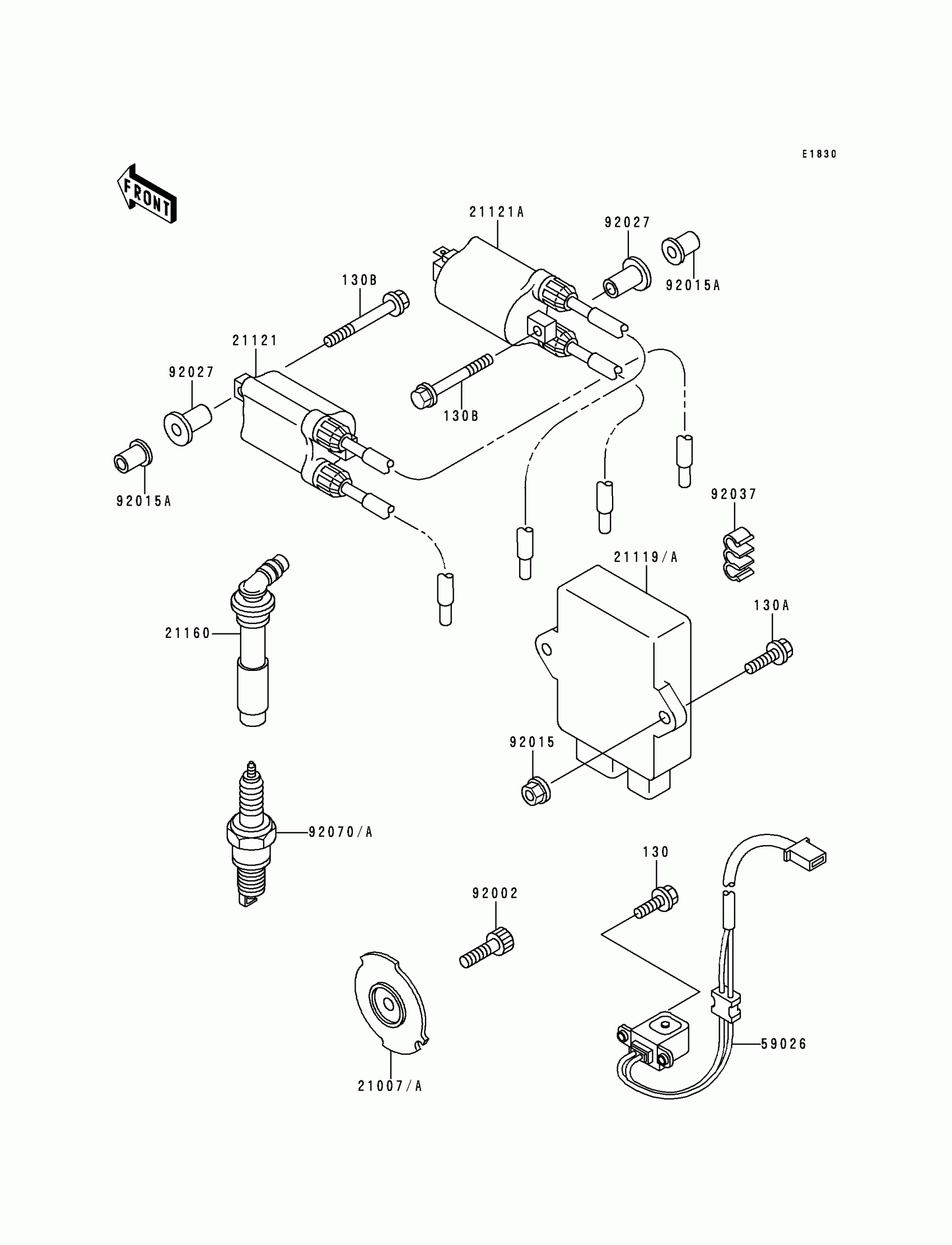

Kawasaki Ninja® ZX™-6 Ignition System Diagram

Description

Price

130

BOLT-FLANGED,5X12

130G0512

Unavailable

130A

BOLT-FLANGED

130J0620

Unavailable

130B

BOLT-FLANGED,6X45,BLACK

130J0645

Unavailable

21121

COIL-IGNITION,#1

21121-1227

Unavailable

21121A

COIL-IGNITION,#2

21121-1228

$138.30

21160

CAP-ASSY-PLUG

21160-1081

$61.88

59026

COIL-PULSING

59026-1100

$150.54

92002

BOLT,SOCKET,8X25

92002-1442

$3.85

92015

NUT,6MM

92015-1094

$6.55

92015A

NUT

92015-1700

$6.55

92027

COLLAR

92027-195

$4.93

92037

CLAMP,CABLE

92037-1697

$7.49

92070

PLUG-SPARK,CR9E(NGK)

92070-1143

$5.44

92070A

Not Available As Spare Part - Friction Washer

Unavailable

21007

ROTOR,PULSING

21007-1205

$53.39

21007A

ROTOR,PULSING

21007-1258

$53.39

21119

IGNITER

21119-1364

$590.34

21119A

IGNITER

21119-1387

$529.16
