1995 Kawasaki Ninja® ZX™-6 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1995 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

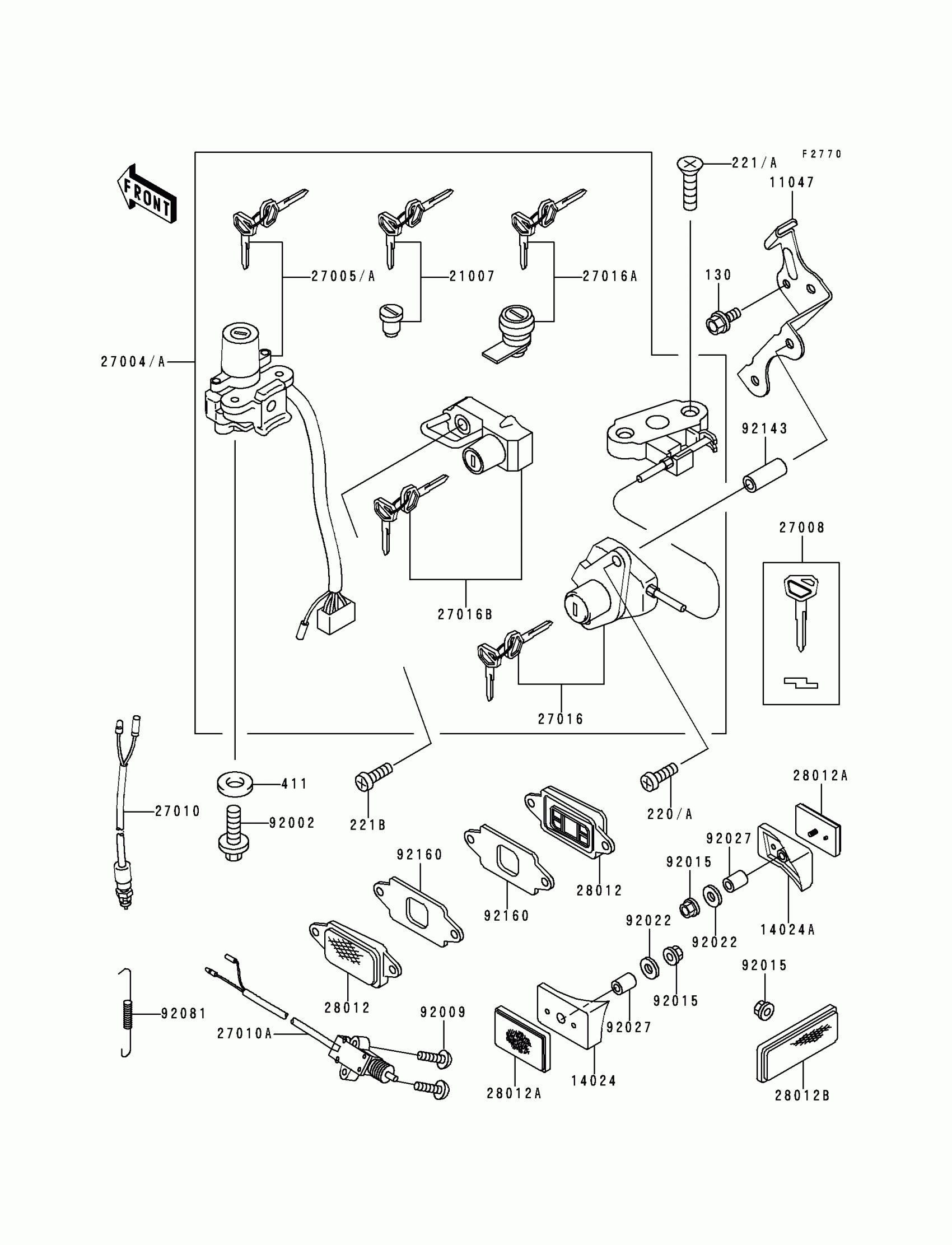

1995 Kawasaki Ninja® ZX™-6 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

220A

1

$1.63

In stock

221A

SCREW-CSK-CROS,6X20

221C0620

1
Out of stock

221B

SCREW-CSK-CROSS

221C0630

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1

$1.19

In stock

11047

BRACKET,SEAT LOCK

11047-1885

1

$53.39

In stock

14024

COVER,REFLECTOR,LH

14024-1940

1
Out of stock

14024A

COVER,REFLECTOR,RH

14024-1941

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5035

1

$60.27

In stock

27004A

SWITCH-ASSY

27004-5478

1
Out of stock

27005A

1

$265.60

In stock

27008

KEY-LOCK,BLANK

27008-1170

1

$14.13

In stock

27010

SWITCH,BRAKE LAMP

27010-1093

1

$27.22

In stock

27010A

SWITCH,SIDE STAND

27010-1226

1

$73.52

In stock

27016

LOCK-ASSY,SEAT

27016-5196

1

$136.00

In stock

27016A

LOCK-ASSY,PAD

27016-5198

1

$74.62

In stock

27016B

LOCK-ASSY,HELMET

27016-5207

1

$74.62

In stock

28012

1

$49.75

In stock

28012A

REFLECTOR-REFLEX,RR

28012-1072

1

$24.61

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92002

BOLT,TORX,6X16

92002-1333

1

$2.15

In stock

92009

SCREW,5X22

92009-1492

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1

$4.42

In stock

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

1
Out of stock

92143

COLLAR,6.5X9.5X17

92143-1408

1

$4.24

In stock

92160

DAMPER,REFLECTOR

92160-1192

1

$9.29

In stock
