2000 Kawasaki Ninja® ZX™-12R Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

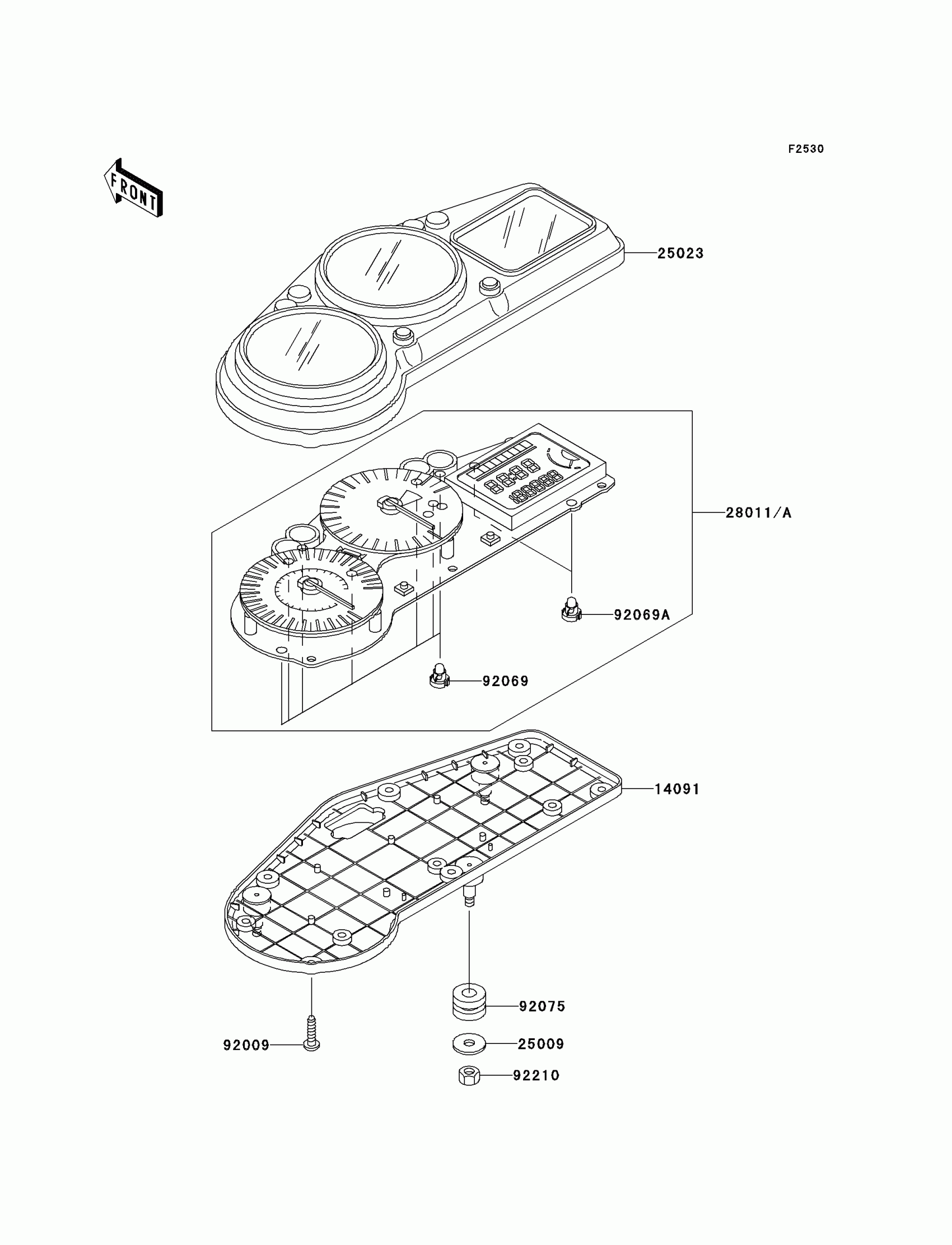

2000 Kawasaki Ninja® ZX™-12R Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER HOUSING

14091-1147

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1252

1
Out of stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92069

BULB,T3.4,12V1.1W

92069-1110

1
Out of stock

92069A

BULB,T3,12V0.7W

92069-1113

1
Out of stock

92075

DAMPER

92075-1435

1
Out of stock

92210

NUT,5MM

92210-1124

1
Out of stock

28011

METER,SPEED&TACHO,KPH

28011-1196

1
Out of stock

28011A

METER,SPEED&TACHO,MPH

28011-1197

1
Out of stock
