2000 Kawasaki Ninja® ZX™-12R Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

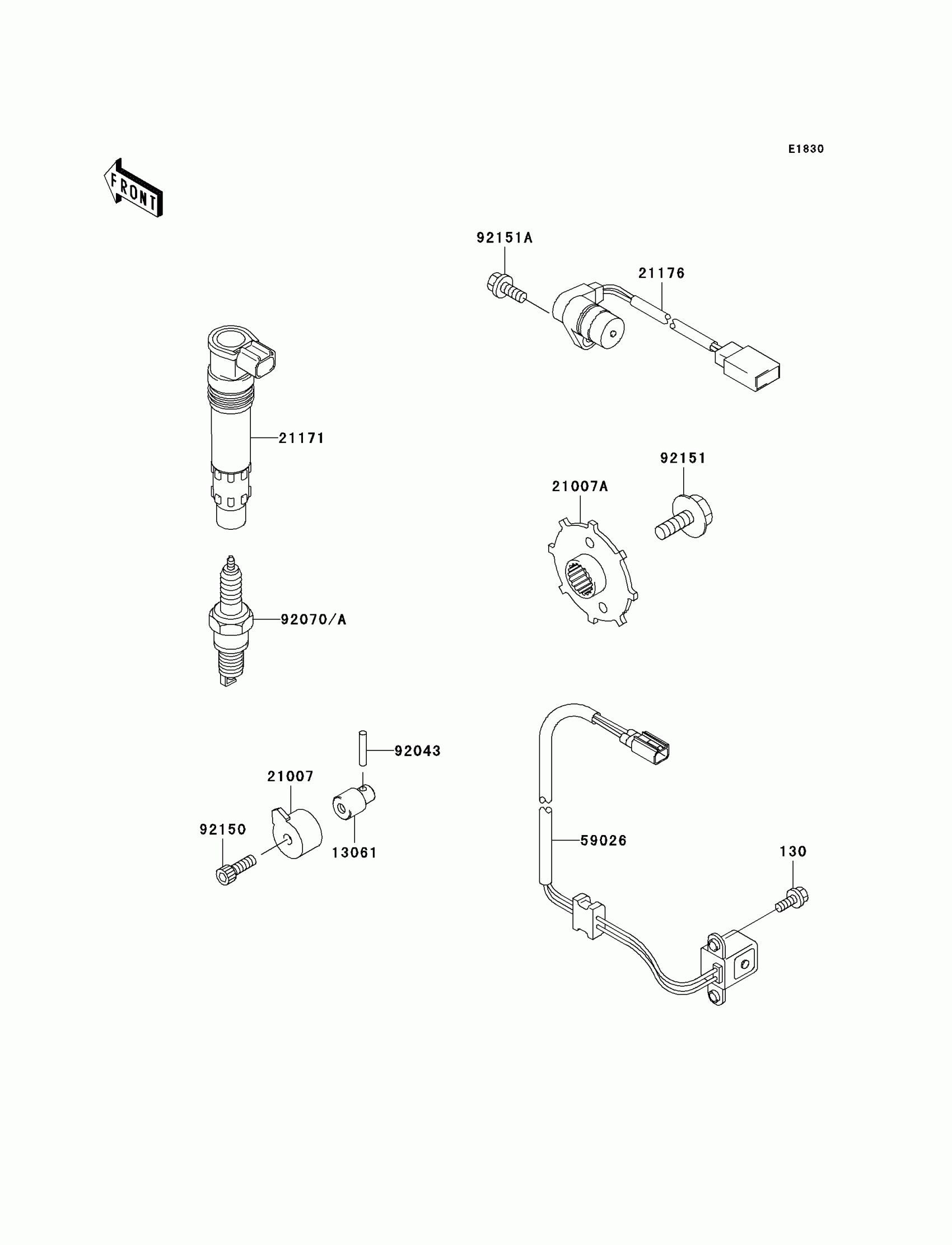

2000 Kawasaki Ninja® ZX™-12R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

13061

BOSS,CAM SENSOR

13061-1687

1
Out of stock

21007

ROTOR

21007-1356

1
Out of stock

21007A

ROTOR

21007-1378

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-1265

1
Out of stock

21176

SENSOR

21176-1077

1
Out of stock

59026

COIL-PULSING

59026-1150

1
Out of stock

92043

PIN

92043-1575

1
Out of stock

92070

PLUG-SPARK,CR9EKPA

92070-1254

1
Out of stock

92070A

PLUG-SPARK,CR8EKPA

92070-1255

1
Out of stock

92150

BOLT,6X18

92150-1645

1
Out of stock

92151

BOLT,8X23

92151-1308

1
Out of stock

92151A

BOLT,FLANGED,6X16

92151-1774

1
Out of stock
