2000 Kawasaki Ninja® ZX™-12R Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

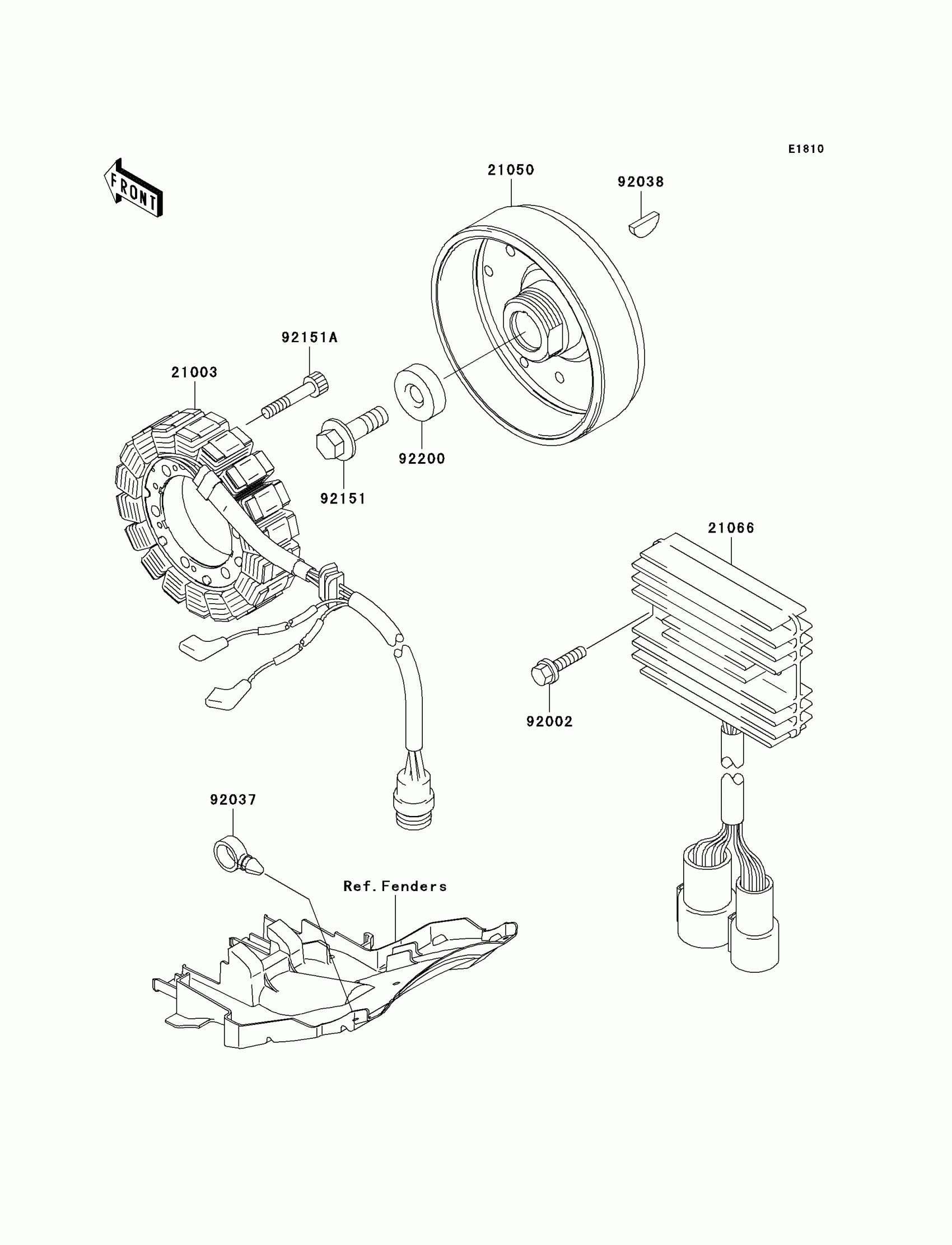

2000 Kawasaki Ninja® ZX™-12R Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1351

1
Out of stock

21050

FLYWHEEL

21050-1185

1

$697.98

In stock

21066

REGULATOR-VOLTAGE

21066-1119

1

$277.53

In stock

92002

BOLT,FLANGED,6X35

92002-1051

1

$4.90

In stock

92037

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92038

KEY

92038-1060

1

$7.63

In stock

92151

BOLT,FLYWHEEL

92151-1230

1

$7.15

In stock

92151A

BOLT,SOCKET,6X45

92151-1779

1

$2.75

In stock

92200

WASHER

92200-1241

1
Out of stock
