Description

Price

130

BOLT-FLANGED,6X30

130H0630

Unavailable

11051

BRACKET,FUSE

11051-1474

$12.10

14091

COVER,JUNCTION BOX

14091-1280

Unavailable

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.39

26006A

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006B

FUSE,10A-R

26006-1068

Unavailable

26006C

FUSE,15A

26006-1075

$4.86

26011

WIRE-LEAD,BATTERY(+)

26011-1730

$46.91

26011A

WIRE-LEAD,BATTERY(-)

26011-1731

$35.65

26011B

WIRE-LEAD,SUB

26011-1762

$59.01

26011C

WIRE-LEAD,(+),JUMP START

26011-1772

$62.58

26011D

WIRE-LEAD,SETTING(A)

26011-1773

$14.71

26011E

WIRE-LEAD,DIAGNOSIS

26011-1774

$15.02

26012

BATTERY,YTX14-BS,12V 12AH

26012-1334

$125.31

26021

JUNCTION BOX

26021-1089

Unavailable

26030

HARNESS,MAIN

26030-1677

Unavailable

26030A

HARNESS,SUB

26030-1752

Unavailable

26030B

HARNESS,FR

26030-1779

Unavailable

27002

RELAY-ASSY

27002-1086

$32.97

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN,LH

27003-1418

$89.63

27003A

HORN,RH

27003-1419

$89.63

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92026

SPACER

92026-1575

$5.19

92037

CLAMP,HOSE

92037-1827

$5.69

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND

92072-1392

$2.84

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

92152

COLLAR

92152-1252

$4.15

92160

DAMPER

92160-1099

$3.66

92170

CLAMP,HARNESS

92170-1494

$6.54

92171

CLAMP,HARNESS

92171-1110

$8.15

92171A

CLAMP,HARNESS

92171-1129

Unavailable

92171B

CLAMP,H/P L HARNESS

92171-1207

$16.02

92171C

CLAMP,H/P R HARNESS

92171-1208

Unavailable

92171D

CLAMP,HEAD LAMP COUPLER

92171-1211

$20.10

92171E

CLAMP,HARNESS

92171-1255

$8.34

92171F

CLAMP,HARNESS

92171-1256

$8.95

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

130B

BOLT-FLANGED,6X10

130V0610

Unavailable

312

NUT-HEX

312H0600

$1.32

411

WASHER-PLAIN,6MM

411E0600

$1.03

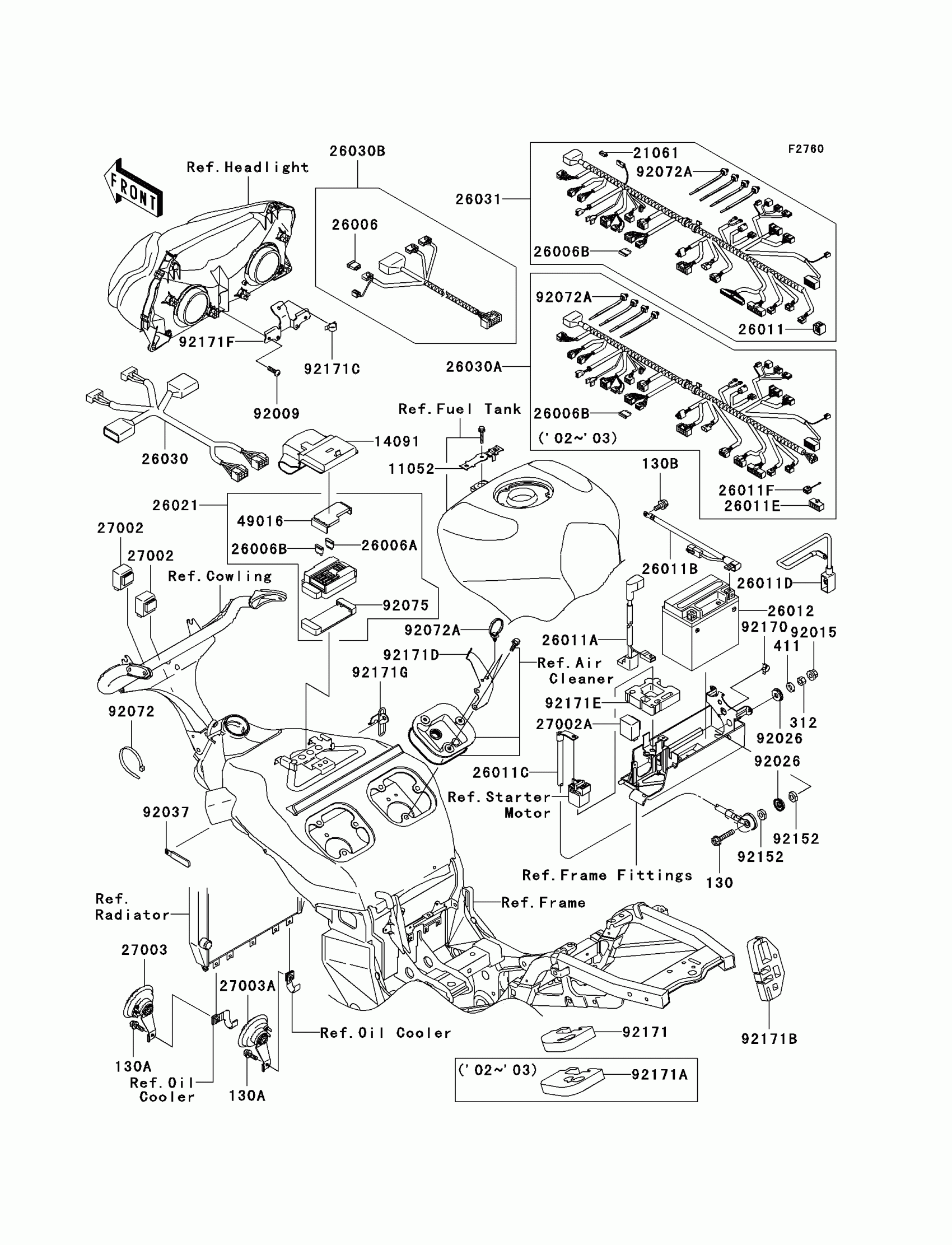

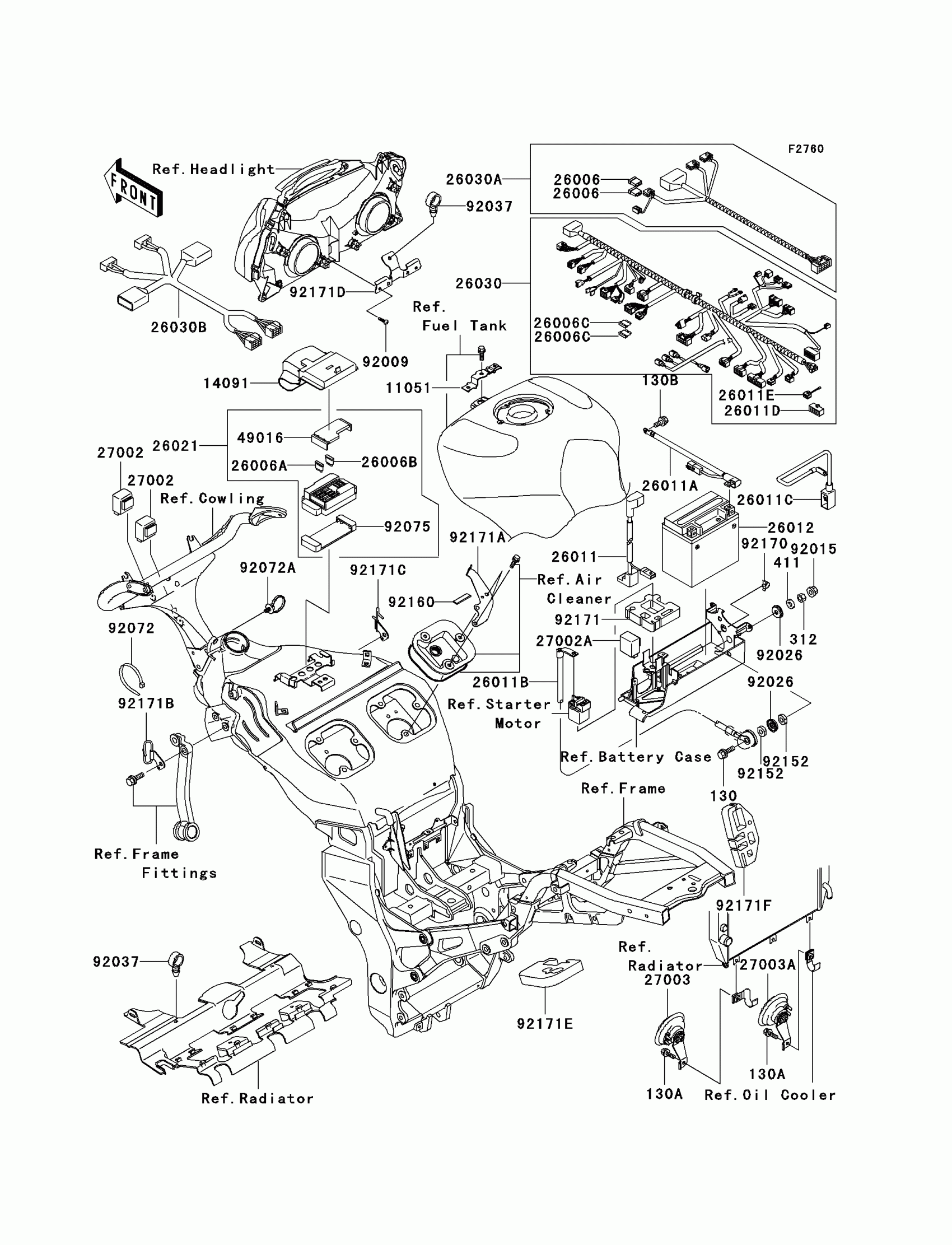

Kawasaki Ninja® ZX™-12R Chassis Electrical Equipment Diagram

BOLT-FLANGED,6X30

BRACKET,FUSE

COVER,JUNCTION BOX

FUSE,BLADE,20A,YELLOW

FUSE,BLADE,30A,GREEN

FUSE,10A-R

FUSE,15A

WIRE-LEAD,BATTERY(+)

WIRE-LEAD,BATTERY(-)

WIRE-LEAD,SUB

WIRE-LEAD,(+),JUMP START

WIRE-LEAD,SETTING(A)

WIRE-LEAD,DIAGNOSIS

BATTERY,YTX14-BS,12V 12AH

JUNCTION BOX

HARNESS,MAIN

HARNESS,SUB

HARNESS,FR

RELAY-ASSY

RELAY-ASSY,TURN SIGNAL

HORN,LH

HORN,RH

COVER-SEAL,FUSE

SCREW,TAPPING,5X14

NUT,FLANGED,6MM

SPACER

CLAMP,HOSE

BAND,L=202

BAND

DAMPER,JUNCTION BOX

COLLAR

DAMPER

CLAMP,HARNESS

CLAMP,HARNESS

CLAMP,HARNESS

CLAMP,H/P L HARNESS

CLAMP,H/P R HARNESS

CLAMP,HEAD LAMP COUPLER

CLAMP,HARNESS

CLAMP,HARNESS

BOLT-FLANGED,6X12

BOLT-FLANGED,6X10

NUT-HEX

WASHER-PLAIN,6MM
