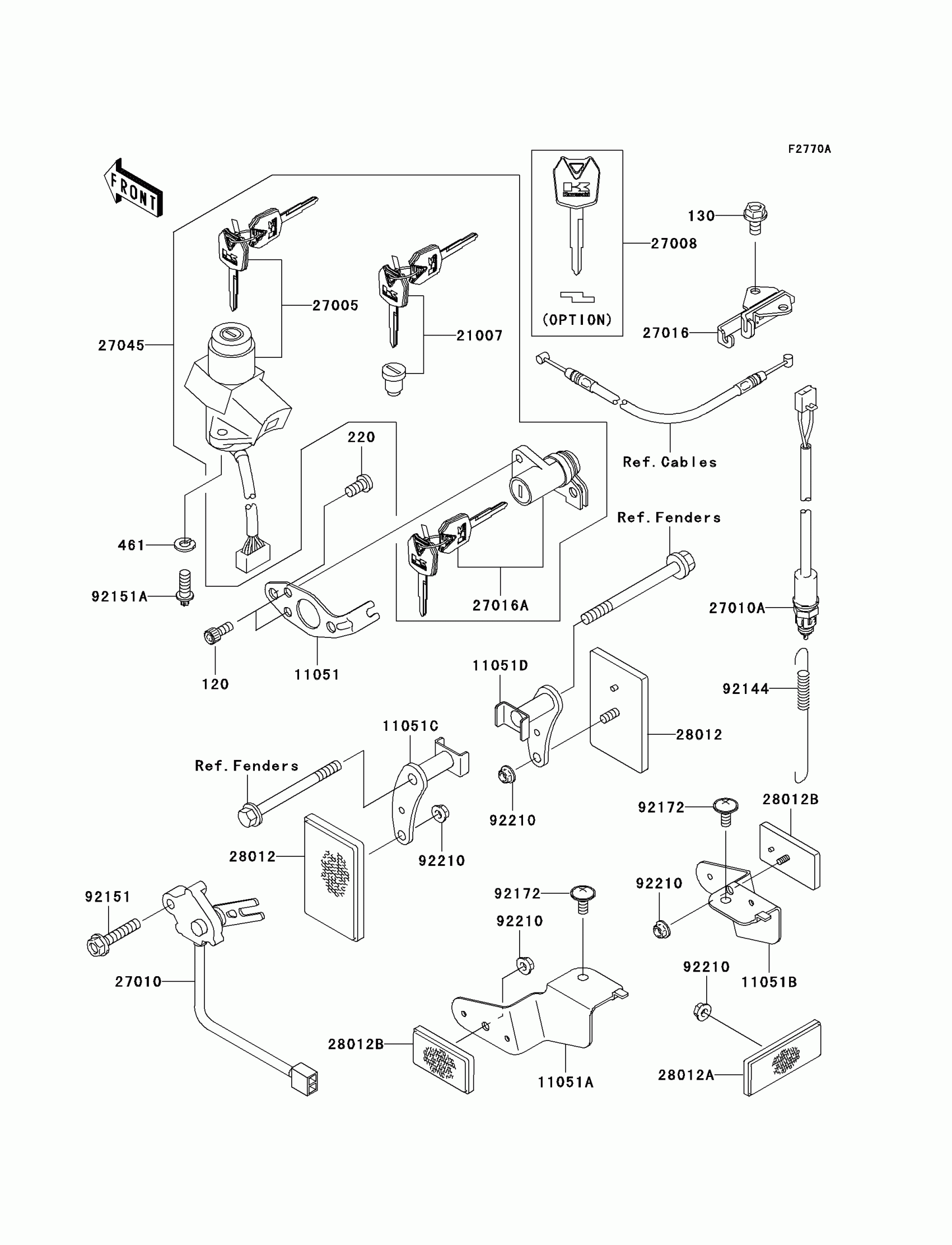

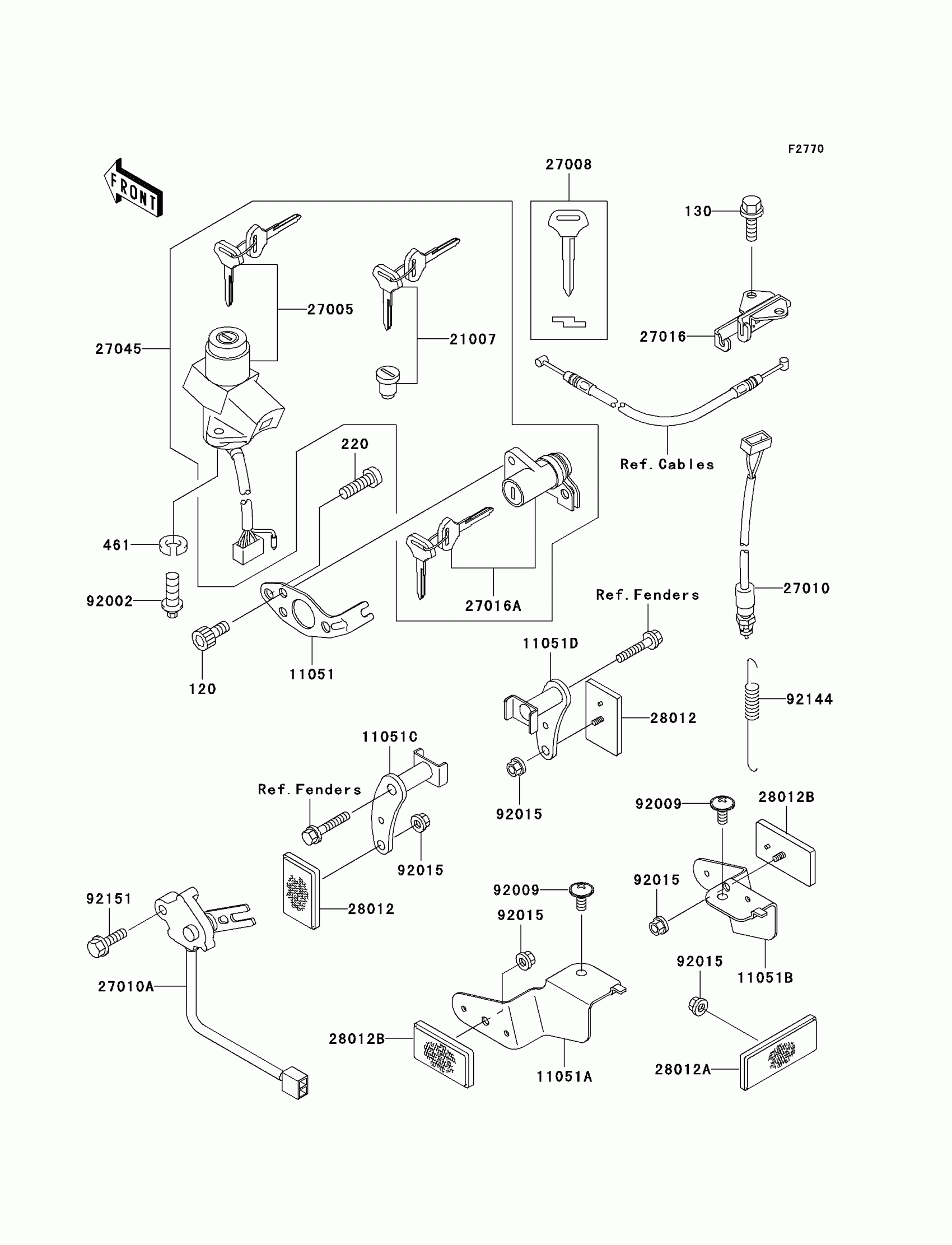

Kawasaki Ninja® ZX™-12R Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,6X12

130J0612

Unavailable

220

SCREW-PAN-CROS,6X12

220C0612

Unavailable

461

WASHER-SPRING

461L0600

$0.66

11051

BRACKET,SEAT LOCK

11051-1370

$8.95

11051A

BRACKET,REFLECTOR,RR,LH

11051-1481

$18.59

11051B

BRACKET,REFLECTOR,RR,RH

11051-1482

$16.95

11051C

BRACKET,REFLECTOR,FR,LH

11051-1662

$29.98

11051D

BRACKET,REFLECTOR,FR,RH

11051-1663

$29.98

21007

ROTOR,LOCK,TANK CAP

21007-5042

$94.15

27005

SWITCH-ASSY-IGNITION

27005-5112

$208.33

27008

KEY-LOCK,BLANK

27008-1189

$13.33

27010

SWITCH,BRAKE LAMP

27010-1152

$26.58

27010A

SWITCH,SIDE STAND

27010-1407

Unavailable

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,SEAT

27016-5261

$91.70

27045

SWITCH-ASSY

27045-5105

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

28012B

REFLECTOR-REFLEX

28012-1088

$18.15

92002

BOLT,TORX,6X16

92002-1333

$1.85

92009

SCREW,6X14

92009-1662

$2.99

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92144

SPRING,REAR BRAKE SWITCH

92144-1753

$5.58

92151

BOLT,FLANGED,6X30

92151-1216

Unavailable
